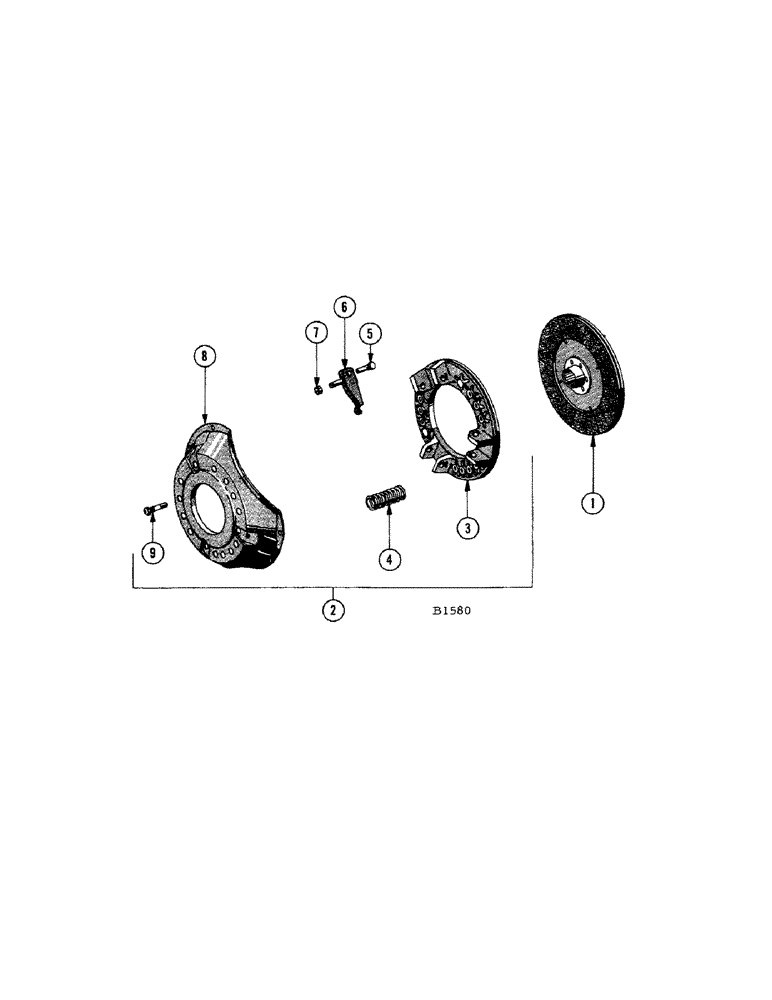

Запчасти Case IH 1010 (258) - CLUTCH, TWELVE PRESSURE PLATE SPRINGS (18) - CLUTCH

1

F78821

X

PLATE - clutch, driving with facings

1шт.

2

F78513

CLUTCH ASSEMBLY

CLUTCH - less driving plate

1шт.

3

31003

PIN

PLATE - pressure

1шт.

4

31004

SPRING

- pressure

12шт.

5

O6643AB

PIN - for F78521 lever

3шт.

6

F78521

LEVER ASSY.

LEVER - clutch pressure

3шт.

7

O4311AB

NUT

LOCKNUT - for F78521 levers

3шт.

8

31002

PLATE - back

1шт.

9

F9738

SCREW - cap, For clutch mounting plate

6шт.

NUT - 5/16" N.C. hex. gr. 8 stl. (129-512) L.W. (92-5)

6шт.
