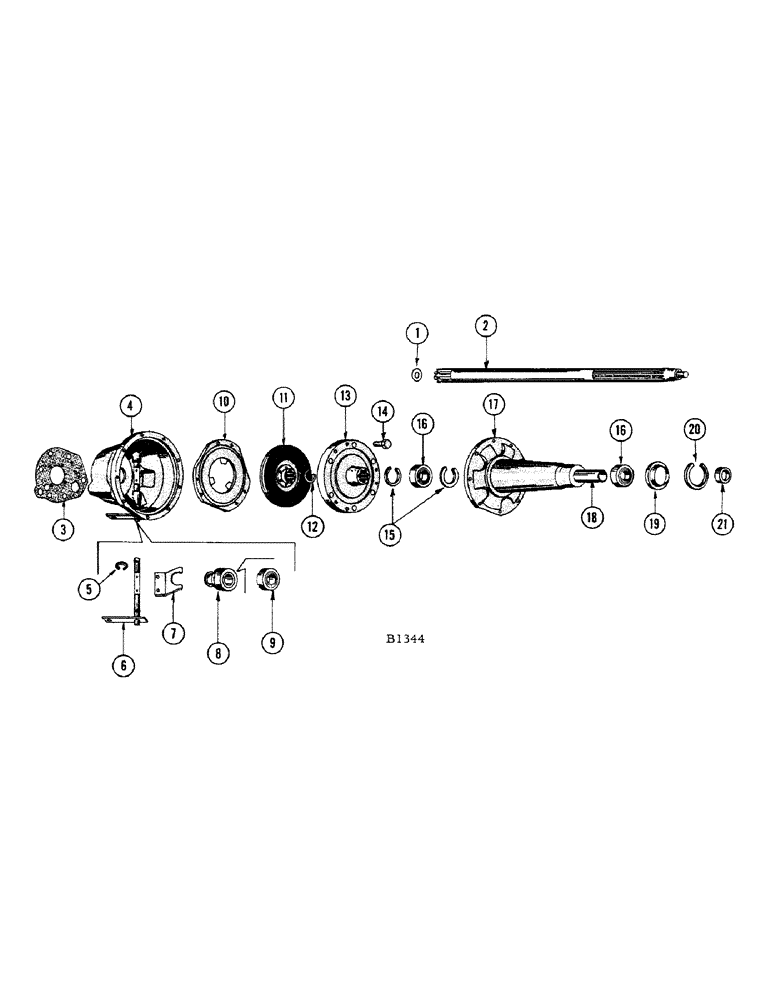

Запчасти Case IH 1010 (258[A]) - CLUTCH SHAFT AND HOUSING (18) - CLUTCH

1

O8848AB

X

"O" RING - for F11707 shaft

1шт.

2

F11707

SHAFT - input (22-7/8" long)

1шт.

3

F9784

GASKET

- clutch, Serial Range: housing-case

1шт.

4

F1276

HOUSING - clutch

1шт.

BOLT - 7/16" x 1-1/4" N.C. hex. gr. 7-8 stl. (113-301)

7шт.

5

F10139

RING - snap, clutch release shaft

2шт.

6

F77781

SHAFT - (13-7/16" long) clutch release with lever

1шт.

7

F19660

FORK

YOKE - clutch release

1шт.

BOLT - 5/16" x 1-3/8" N.F. hex. gr. 7-8 stl. (114-103) and nut (129-513) L.W. (92-5)

2шт.

8

F78114

CARRIER - clutch release

1шт.

9

VT2119

X

BEARING - (Aetna A899-2) clutch release

1шт.

10

F78513

CLUTCH ASSEMBLY

CLUTCH - less driving plate

1шт.

11

F78821

X

PLATE - drive, clutch

1шт.

12

F11797

RING, SNAP

RING - snap, For F1277 mounting plate

1шт.

13

F1277

HANDBOOK

PLATE - clutch mounting

1шт.

14

F9738

SCREW - cap, clutch mounting plate

6шт.

NUT - 5/16" N.C. hex. gr. 8 stl. (129-512) L.W. (92-5)

6шт.

15

F9755

RING, SNAP

RING - snap, For inner clutch lower bearing (F10265) input shaft

2шт.

16

F10265

BALL BEARING

BEARING - (Fafnir #P208NP) input shaft, clutch cover

2шт.

17

F1274

COVER - clutch housing

1шт.

BOLT - 3/8" x 1-1/2" N.F. hex. gr. 7-8 stl. (114-212) and nut (129-524) L.W. (92-6)

9шт.

18

F9761

SPACER - (2" O.D. x 7-3/4" long) input shaft, clutch cover

1шт.

19

F9759

RETAINER

- input shaft bearing

1шт.

20

F9754

RING, SNAP

RING - snap, retaining outer clutch cover bearing (F10265)

1шт.

21

F9757

SLEEVE

- (1-15/16" O.D. x 29/32" long) input shaft bearing retainer

1шт.
