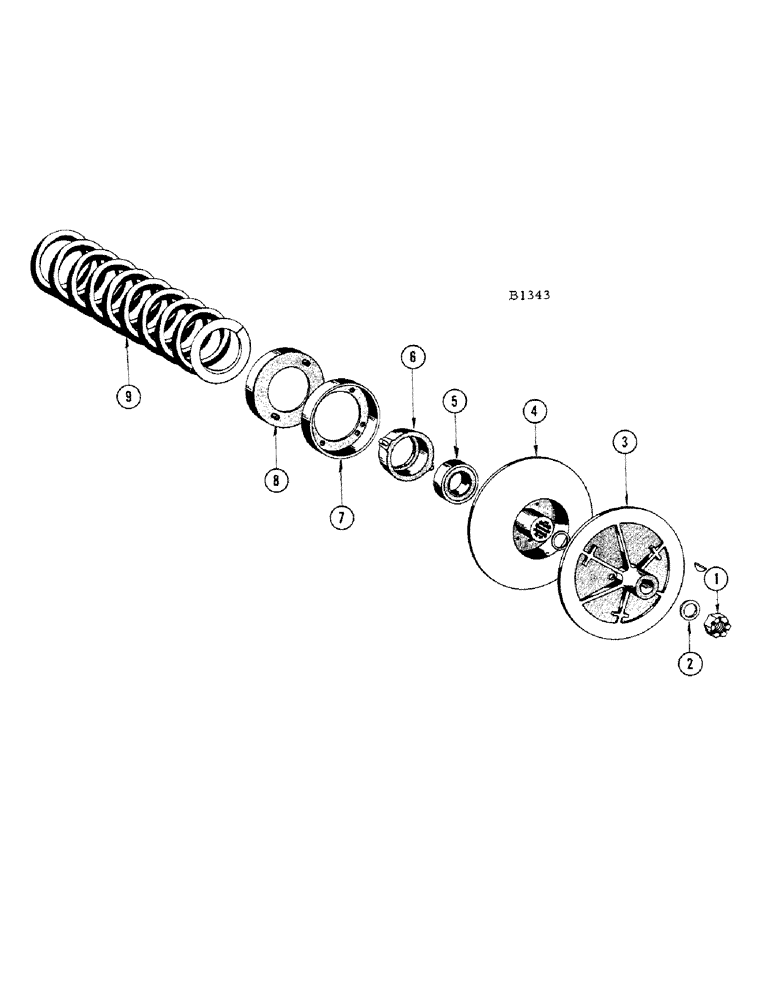

Запчасти Case IH 1010 (256) - VARIABLE SPEED TRACTION DRIVE (16) - TRACTION VARIATOR

1

F9830

NUT

- (1" N.F. slotted - L.H. thread)

1шт.

PIN - 3/16" x 1-3/4" cotter (132-97)

1шт.

2

F10886

WASHER - hardened (2" O.D. x 1-1/32" I.D. x 1/4")

1шт.

3

F1399

SHEAVE - half (#8262501 and after)

1шт.

KEY - #28 Woodruff (126-47)

1шт.

F1356

SHEAVE - half

1шт.

KEY - #28 Woodruff (126-47)

1шт.

4

F86704

SHEAVE - (#8262501 and after)

1шт.

FITTING - 1/8" str. #5000 Lincoln (219-1)

1шт.

F77387

SHEAVE - half (Before #8262501)

1шт.

FITTING - 1/8" str. #5000 Lincoln (219-1)

1шт.

5

F10898

BALL BEARING

BEARING - (Fafnir #P212KRR or N.D. #88512BXRY125)

1шт.

6

F3045

CARRIER - bearing housing (F10898)

1шт.

7

F6044

PLATE

1шт.

8

F75779

PLATE - spring retaining

1шт.

9

F6043

SPRING

1шт.

F11707

SHAFT - (See clutch shaft and housing)

1шт.
