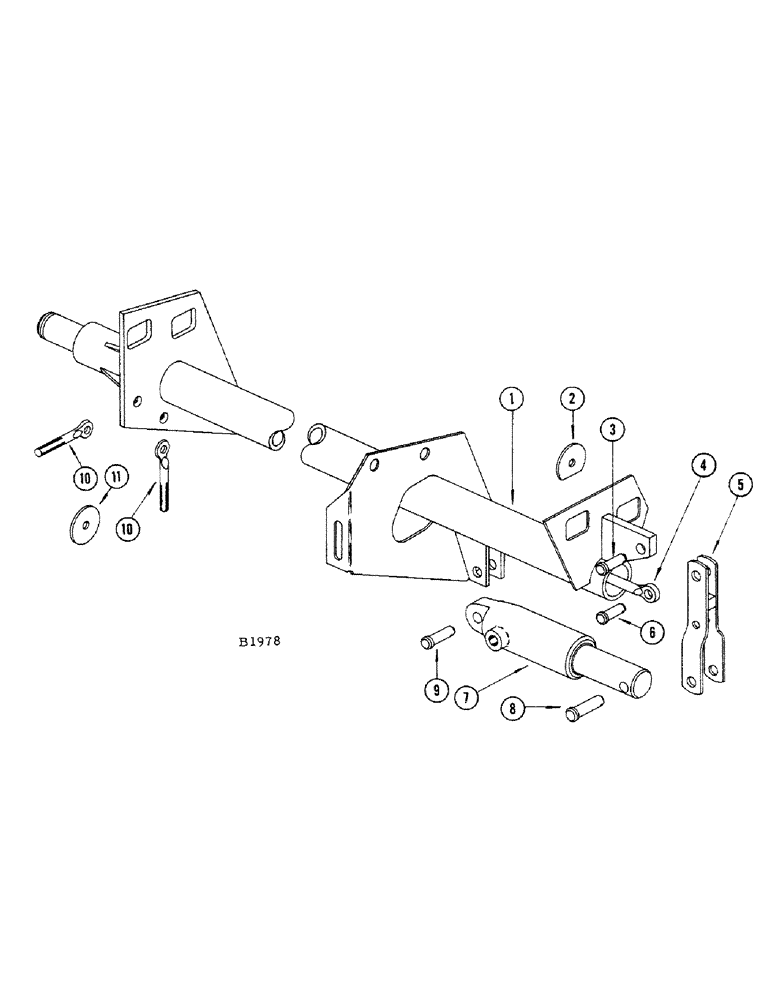

Запчасти Case IH 1010 (256[A]) - VARIABLE SPEED TRACTION DRIVE ADJUSTING ROD (16) - TRACTION VARIATOR

1

F86723

SHAFT - V.S. upper (#8262501 and after)

1шт.

F86234

TUBE - variable speed adjusting rod housing (Before #8262501)

1шт.

2

F12214

WASHER - sheared

1шт.

BOLT - 3/8" x 1-1/2" rhd. sq. nk. Gr. 5 stl. (111-307) and nut (25-116) L.W. (92-6)

1шт.

3

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - 1/2" clevis

1шт.

PIN - 1/8" x 1" cotter (132-48)

1шт.

4

F12617

ROD - adjusting (#8262501 and after)

1шт.

JAM NUT - 1/2" N.F. hex. (25-158)

1шт.

F7859

ROD - adjusting (Before #8262501)

1шт.

NUT - 7/16" N.F. hex. (25-117)

1шт.

5

F79285

LINK - adjusting

1шт.

6

O9314AB

X

PIN - clevis, center - F7859 rod to F79285 lilnk

1шт.

PIN - 1/8" x 1" cotter (132-48)

1шт.

7

F76962

CYLINDER - variable speed control

1шт.

8

H5453S

PIN - lower clevis, F76962 cylinder to F79285 link

1шт.

PIN - 3/16" x 1" cotter (132-91)

1шт.

9

O5891HT

PIN - clevis, cylinder F76962 to F86234 tube

1шт.

PIN - 1/8" x 1" cotter (132-48)

1шт.

10

F12216

EYEBOLT

2шт.

WASHER - 3/8" std. (95-6) ESNA nut #29NEO66 (131-6)

2шт.

BOLT - 5/16" x 1" #3 plow (18-516) nut (25-104)

2шт.

11

F12215

WASHER

4шт.

BOLT - 3/8" x 1-1/2" rhd. sq. nk. (111-307) nut (25-116)

2шт.

BOLT - 3/8" x 1-3/4" rhd. sq. nk. (111-300) nut (25-116)

2шт.
