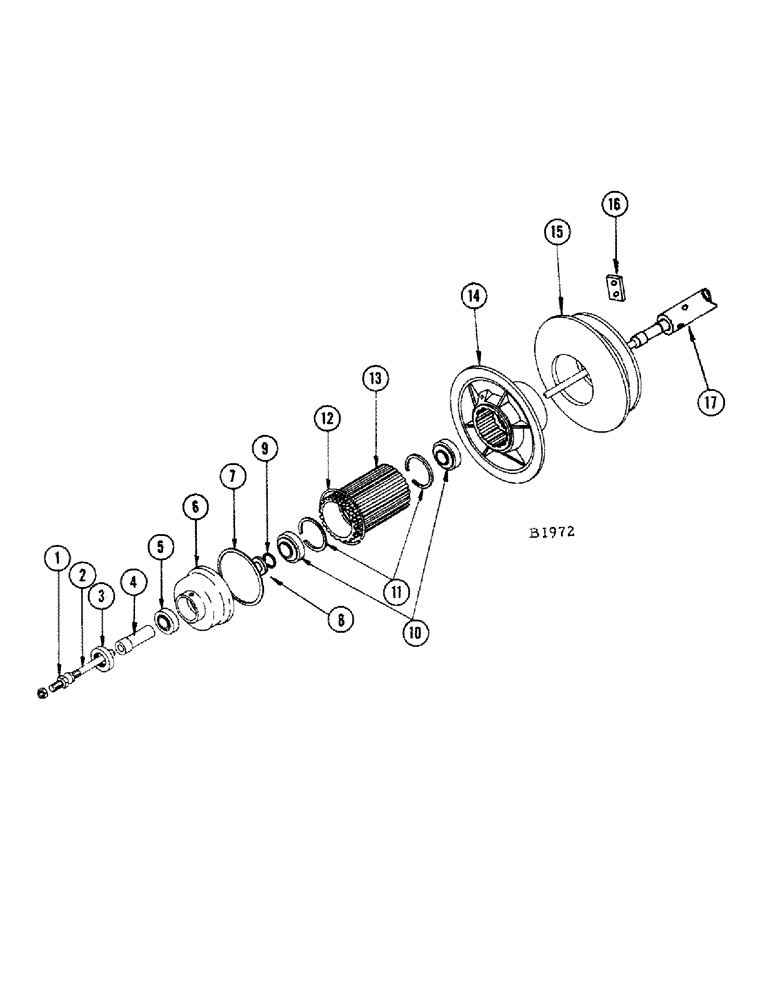

Запчасти Case IH 1010 (254) - VARIABLE SPEED TRACTION DRIVE SHEAVES, BEFORE SERIAL NUMBER 8262501 (16) - TRACTION VARIATOR

1

F9474

NUT - adjusting

1шт.

2

F7859

ROD - adjusting

1шт.

25-117

NUT,7/16"-20, G5

- 7/16" N.F. hex.

1шт.

3

F10921

OIL SEAL

SEAL - for F8890 bearing (Ref. 5)

1шт.

4

F11052

PLUG - bearing support

1шт.

5

F8890

BEARING, BALL

BEARING - adjusting rod

1шт.

6

F79236

CARRIER - bearing

1шт.

A30091

RING, SNAP

SNAP RING - (Not shown)

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

7

F12233

GASKET

- bearing carrier

1шт.

8

F12966

WASHER - (Replaces V20207)

1шт.

9

O6384AB

SNAP RING - retaining, for F8890 bearing (Ref. 5)

1шт.

10

F10753

BEARING

- variable speed sheaves

2шт.

11

B18276

RING, SNAP

SNAP RING - retaining, F10753 bearing (Ref. 10)

2шт.

12

F10063

STOP - variable speed sheaves

1шт.

13

F1293

HUB

- variable speed sheaves

1шт.

14

F1294

SHEAVE - movable half, V.S. traction drive

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

15

F1385

SHEAVE - stationary half, V.S. traction drive

1шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

6шт.

16

F12618

STRAP - lockwasher (Replaces F10144)

3шт.

17

F86234

TUBE - variable speed adjusting rod housing

1шт.

F12258

V-BELT

"V" BELT - variable speed traction drive (Not shown)

1шт.

F12280

BELT

Main Combine Drive, Not Shown

1шт.
