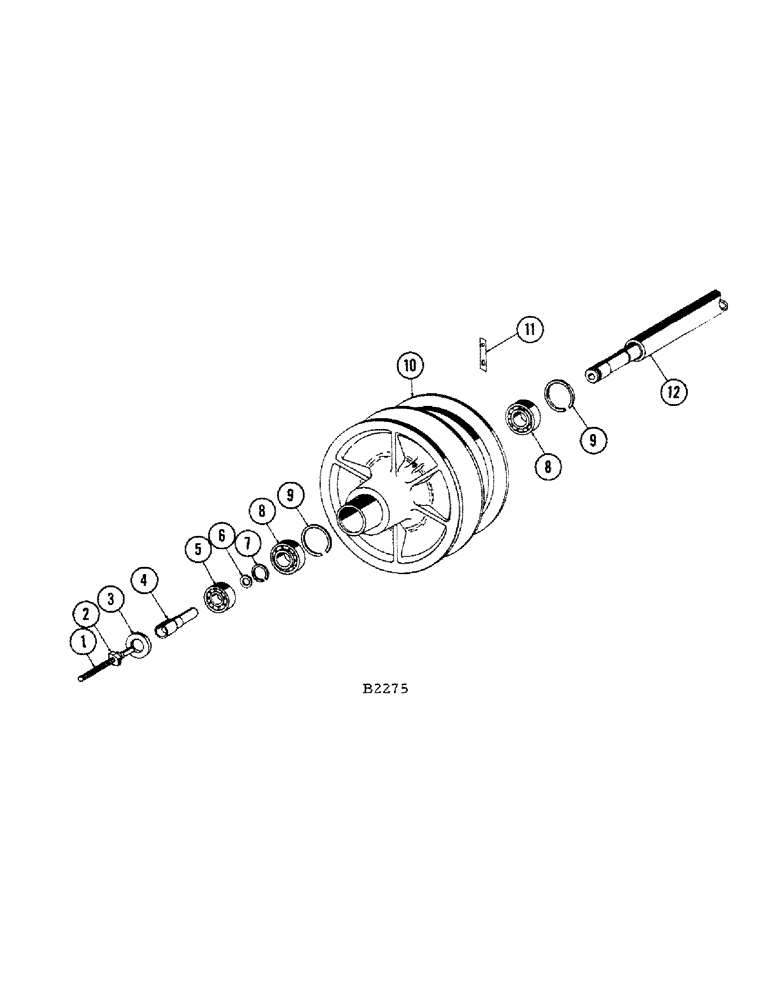

Запчасти Case IH 1010 (254[A]) - VARIABLE SPEED TRACTION DRIVE SHEAVES, SERIAL NUMBER 8262501 AND AFTER (16) - TRACTION VARIATOR

1

F12617

ROD - adjusting, variable speed traction drive sheaves serial no. 8262501 and after

1шт.

25-158

JAM NUT,Jam, 1/2"-20, G5

- 1/2" N.F. hex. jam, variable speed traction drive sheaves serial no. 8262501 and after

1шт.

2

O4027CS

NUT

- adjusting, variable speed traction drive sheaves serial no. 8262501 and after

1шт.

3

F10921

OIL SEAL

SEAL - for F8890 bearing (Ref. 5), variable speed traction drive sheaves serial no. 8262501 and after

1шт.

4

F12619

PLUG - bearing support, variable speed traction drive sheaves serial no. 8262501 and after

1шт.

5

F8890

BEARING, BALL

BEARING - adjusting rod, variable speed traction drive sheaves serial no. 8262501 and after

1шт.

6

F12966

WASHER, variable speed traction drive sheaves serial no. 8262501 and after

1шт.

7

O6384AB

SNAP RING - retaining, For F8890 bearing, variable speed traction drive sheaves serial no. 8262501 and after

1шт.

8

F10753

BEARING

- variable speed sheaves, variable speed traction drive sheaves serial no. 8262501 and after

2шт.

9

B18276

RING, SNAP

SNAP RING - retaining, F10753 bearing (Ref. 8), variable speed traction drive sheaves serial no. 8262501 and after

2шт.

A30091

RING, SNAP

SNAP RING - for sheave (Not shown), variable speed traction drive sheaves serial no. 8262501 and after

1шт.

10

F86724

SHEAVE - variable speed traction drive, variable speed traction drive sheaves serial no. 8262501 and after

1шт.

F13346

BUSHING

- not shown, variable speed traction drive sheaves serial no. 8262501 and after

3шт.

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Variable speed traction drive sheaves S/N 8262501 and after Hex, 3/8"-16 x 7/8", G5, Full Thd

6шт.

138-2009

PIN,3/16" x 1", Coiled

Variable speed traction drive sheaves S/N 8262501 and after 3/16" x 1", Coiled

3шт.

136-60

PIN, SPLIT (COTTER)

COTTER - 5/8" x 1-45/64" hair pin, variable speed traction drive sheaves serial no. 8262501 and after

3шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , Variable speed traction drive sheaves serial no. 8262501 and after 1/4"-28 NPT x .54" lg

2шт.

11

F12618

STRAP - lockwasher, variable speed traction drive sheaves serial no. 8262501 and after

3шт.

12

F86723

SHAFT - variable speed upper, variable speed traction drive sheaves serial no. 8262501 and after

1шт.

F12280

BELT

Main Combine Drive, Not Shown, Variable Speed Traction Drive Sheaves Serial No. 8262501 and After

1шт.

F12642

BELT

"V" BELT - variable speed traction drive, variable speed traction drive sheaves serial no. 8262501 and after

1шт.
