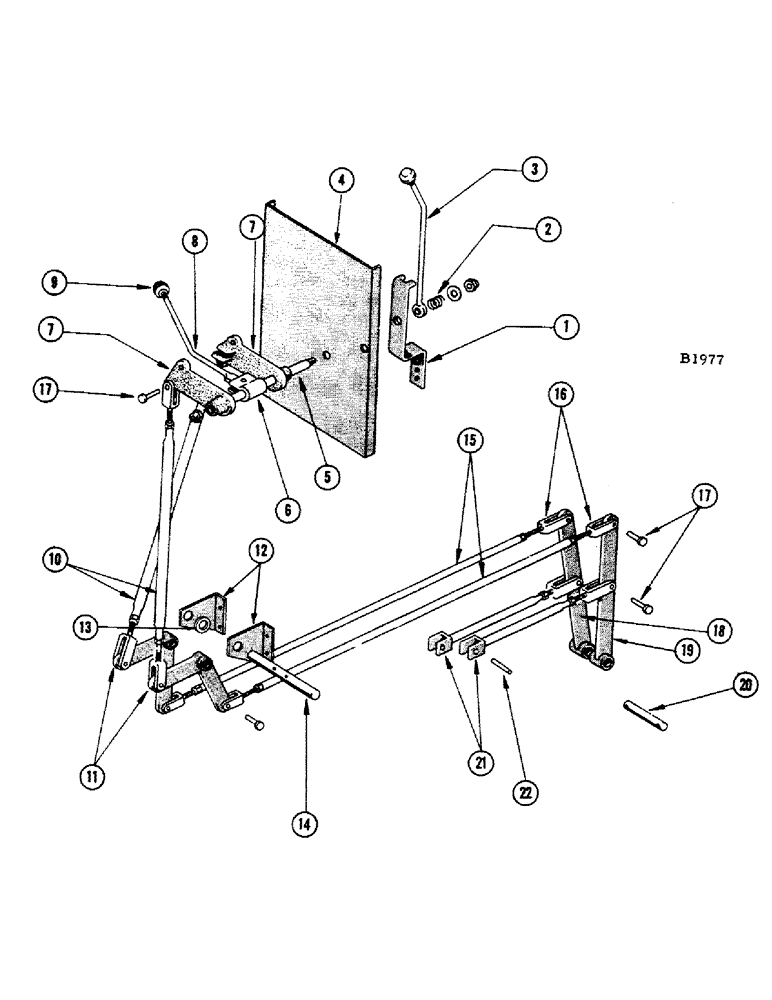

Запчасти Case IH 1010 (272) - GEAR SHIFT LINKAGE (14) - MAIN GEARBOX & DRIVE

1

F8199

ARM - throttle control (See throttle control illustration)

1шт.

2

VT2852

SPRING - throttle control

1шт.

3

F11493

LEVER - throttle control (See throttle control illustration)

1шт.

4

F12343

COVER - instrument panel, rear

1шт.

BOLT - 1/4" x 1/2" N.F. hex. (14-48) nut (25-114)

4шт.

5

F8172

SHAFT - pivot

1шт.

6

F8171

CLAMP - shift lever

1шт.

BOLT - 3/8" x 1" N.C. hex. (13-616) #29E1066 elastic stop nut (131-6)

1шт.

7

F1206

ARM - selector

2шт.

WASHER - 5/8" std. (95-10)

2шт.

8

F11076

LEVER - shift

1шт.

9

O3501AB

X

KNOB - gear shift

1шт.

10

F11958

ROD - gear shift, upper (55-1/2")

2шт.

11

F77542

BELLCRANK - gear shift pivot

2шт.

12

F11830

BRACKET - pivot, shift and clutch

2шт.

BOLT - 5/16" x 7/8" N.F. (14-514) nut (25-115)

2шт.

BOLT - 5/16" x 1" rhd. sq. nk. (11-516) nut (25-105)

2шт.

13

O2736AB

WASHER

2шт.

14

F11968

PIN - pivot (5/8" x 9-1/4") For F11830 bracket

1шт.

PIN - 3/16" x 1" cotter (132-91)

2шт.

15

F9283

ROD - gear shift, lower

2шт.

16

VR2694

CLEVIS - male

10шт.

17

O5925AB

X

PIN - clevis for ref. 16

10шт.

PIN - 3/32" x 3/4" cotter (132-26)

10шт.

18

F77543

ARM - shift control (1st and reverse)

1шт.

19

F77544

ARM - shift control (2nd and 3rd)

1шт.

20

F9279

PIN - pivot (Attaches F77543 and F77544 to main frame)

1шт.

PIN - 3/16" x 1" cotter (132-91)

2шт.

21

F77545

ROD - selector gear w/welded yoke

2шт.

22

F9282

PIN - clevis

2шт.

PIN - 3/32" x 5/8" cotter (132-25)

4шт.
