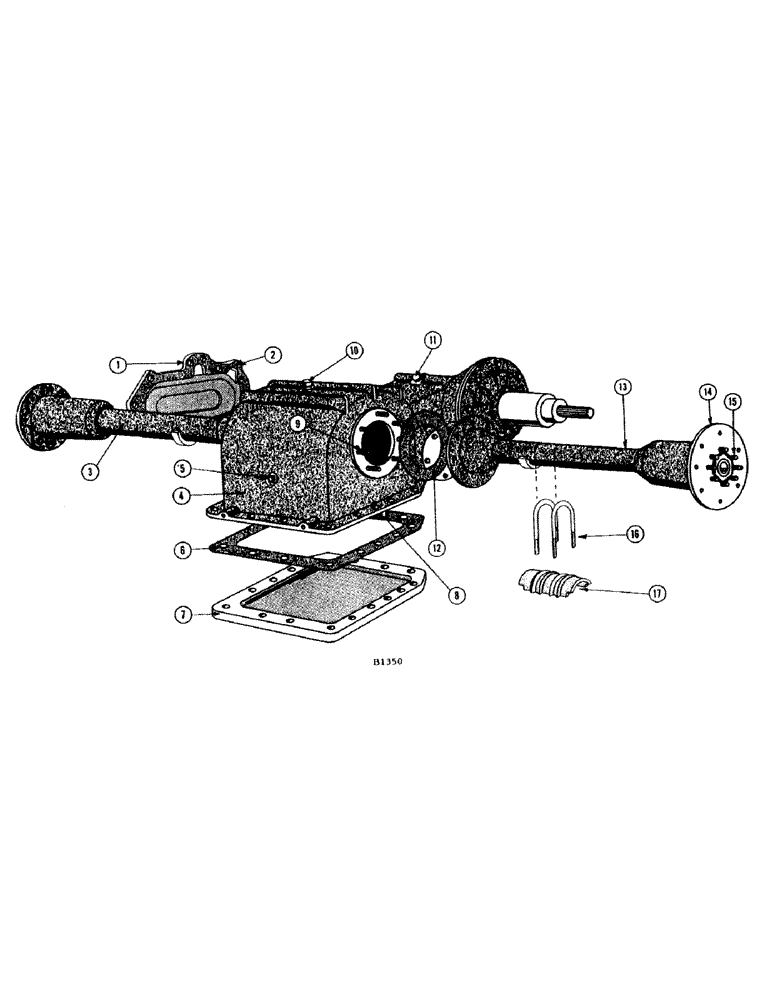

Запчасти Case IH 1010 (270) - TRANSMISSION CASE AND AXLE HOUSING, GRAIN AND RICE TRACK COMBINES (14) - MAIN GEARBOX & DRIVE

1

F1272

COVER - side, case

1шт.

BOLT - 3/8" x 1" N.C. hex. gr. 7-8 stl. (113-215) L.W. (92-6)

10шт.

2

F9786

GASKET - for F1272 cover

1шт.

3

F79923

HOUSING - axle, R.H.

1шт.

4

F1366

CASE - transmission

1шт.

5

221-35

DRAIN PLUG,Sq Soc, 3/4"-14 NPTF

PLUG - 3/4" sq. socket hd. pipe

1шт.

6

F9787

GASKET - transmission case cover

1шт.

7

F1275

COVER - transmission case, lower

1шт.

PLUG - 3/4" sq. hd. pipe plug (221-15)

1шт.

BOLT - 1/2" x 2-1/4" N.F. hex. gr. 7-8 stl. (114-403) and nut (129-545) L.W. (92-8)

13шт.

BOLT - 1/2" x 1-3/4" N.C. hex. gr. 7-8 stl. (113-401) and L.W. (92-8)

5шт.

8

F9750

STUD - transmission case cover

2шт.

9

F9806

STUD - transmission, Serial Range: case-axle

16шт.

NUT - 9/16" N.F. hex. grade 8 (129-551) L.W. (92-9)

16шт.

10

T25082

BREATHER - transmission case

1шт.

11

F9736

SCREW - gear shift lock ball spring

2шт.

12

F9817

GASKET - axle housing to case (F1366)

2шт.

13

F79924

HOUSING - axle, L.H.

1шт.

14

F77796

HUB - wheel (See drive wheels and hubs)

2шт.

15

F9805

STUD

- wheel hub

16шт.

LOCKWASHER - 7/16" Shakeproof #1122 (193-11)

16шт.

16

F9258

"U" BOLT

4шт.

NUT - 5/8" N.F. hex. (25-1110) L.W. (92-10)

8шт.

O9066CH

WASHER - (Not shown)

8шт.

17

F1354

REINFORCEMENT - axle tube

2шт.

F11591

NUT

- 7/16" N.F. grade 8, wheel stud F9805 (Not shown)

16шт.

1

F1272

COVER - side, case, rice wheel only

1шт.

BOLT - 3/8" x 1" N.C. hex. gr. 7-8 stl. (113-215) L.W. (92-6), rice wheel only

10шт.

2

F9786

GASKET - for F1272 cover, rice wheel only

1шт.

3

F79921

HOUSING - axle, R.H., rice wheel only

1шт.

4

F1366

CASE - transmission, rice wheel only

1шт.

5

221-35

DRAIN PLUG,Sq Soc, 3/4"-14 NPTF

PLUG - 3/4" sq. socket hd. pipe, rice wheel only

1шт.

6

F9787

GASKET - transmission case cover, rice wheel only

1шт.

7

F1275

COVER - transmission case, lower, rice wheel only

1шт.

PLUG - 3/4" sq. nd. pipe (221-15), rice wheel only

1шт.

BOLT - 1/2" x 2-1/4" N.F. hex. gr. 7-8 stl, rice wheel only. (114-403) and nut (129-545) L.W. (92-8)

13шт.

BOLT - 1/2" x 1-3/4" N.C. hex. gr. 7-8 stl. (113-401) and L.W. (92-8), rice wheel only

5шт.

8

F9750

STUD - transmission case cover, rice wheel only

2шт.

9

F9806

STUD - transmission case to axle housing, rice wheel only

16шт.

NUT - 9/16" N.F. hex. grade 8 (129-551) L.W. (92-9), rice wheel only

16шт.

10

T25082

BREATHER - transmission case, rice wheel only

1шт.

11

F9736

SCREW - gear shift lock ball spring, rice wheel only

2шт.

12

F9817

GASKET - axle housing to case, rice wheel only

2шт.

13

F79922

HOUSING - axle, L.H., rice wheel only

1шт.

14

F78564

HUB - wheel, rice only

2шт.

O7043AB

X

CUP - (Not shown), rice wheel only

1шт.

F9803

BEARING CUP

CUP - (Not shown), rice wheel only

1шт.

15

F9805

STUD

- wheel hub, rice only

16шт.

LOCKWASHER - 7/16" Shakeproof #1122 (193-11), rice wheel only

16шт.

F11591

NUT

- 7/16" N.F. grade 8, wheel stud F9805 (Not shown), rice only

16шт.

16

F9258

"U" BOLT, rice wheel only

4шт.

NUT - 5/8" N.F. hex. (25-1110) L.W. (92-10), rice wheel only

8шт.

O9066CH

WASHER - (Not shown), rice wheel only

8шт.

17

F1354

REINFORCEMENT - axle tube, rice wheel only

2шт.

F9821

SLEEVE - transmission case (Not shown) See main axle and housing, rice wheel only

2шт.
