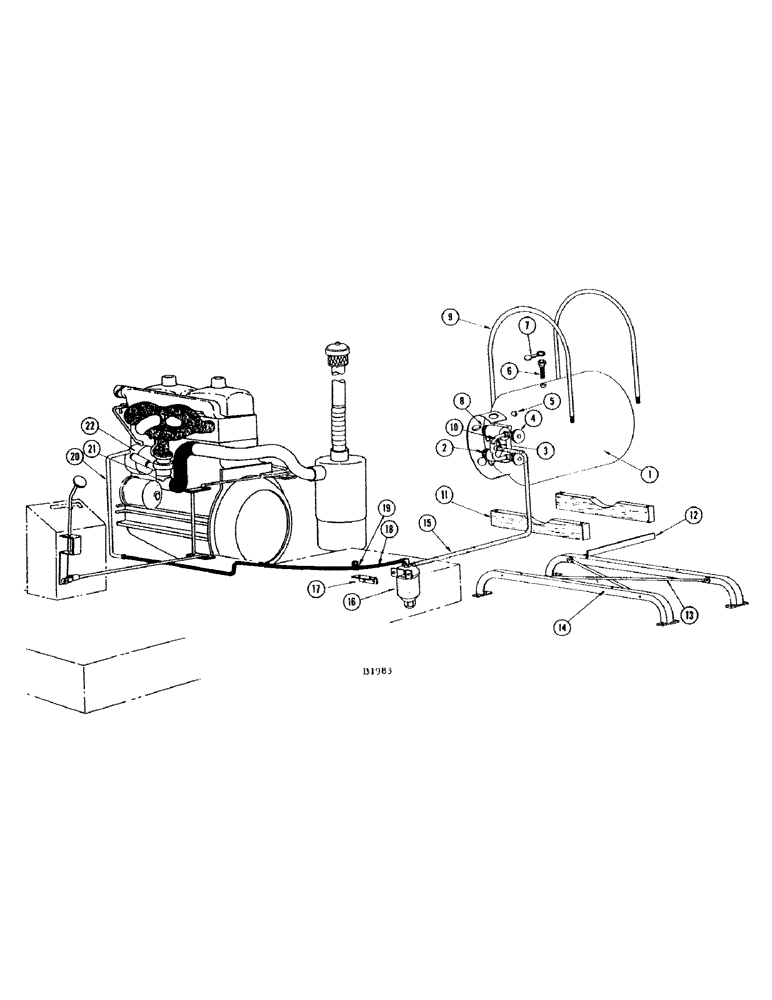

Запчасти Case IH 1010 (448) - A284 LP-F ENGINE, L.P. FUEL TANK (10) - ENGINE
№
Артикул
Название
Примечание
Количество
1
F77873
TANK - fuel
1шт.
2
A29942
VALVE - liquid filter (Replaces 4323AA)
1шт.
A40631
CAP AND CHAIN
1шт.
3
A20423
GAUGE - visible
1шт.
4
4003AA
X
VALVE - vapor and liquid outlet
2шт.
5
4008AA
GAUGE - fixed fuel level
1шт.
6
A20696
SEAL
VALVE - safety relief
1шт.
7
A20697
WIPER
CAP - safety relief valve
1шт.
A40630
CAP AND CHAIN
1шт.
9
F11089
STRAP - tank support
2шт.
NUT - 1/2" N.F. hex. (25-118) L.W. (92-8)
4шт.
10
O9255AB
TUBE - tank valve to tee 0.375" OD x 2.25, 2.562" L
2шт.
O5592A
NUT - (Not shown)
1шт.
TEE - 3/8" #84LB Imperial (222-564)
1шт.
11
F4080
BLOCK - support, fuel tank
2шт.
12
F11091
ANGLE - upper tank support
2шт.
BOLT - 3/8" x 1" N.F. hex. (14-616) nut (25-116)
4шт.
13
F11090
BRACE - cross, tank support
2шт.
BOLT - 3/8" x 1-1/4" N.F. hex. (14-620) nut (25-116)
4шт.
14
F79393
SUPPORT - lower tank
2шт.
15
F11093
TUBE -, Serial Range: tank-filter
1шт.
F11094
LOOM - for F11093 tube
1шт.
16
A24535
FILTER
- liquid (American Bosch #FLT 25 B1) replaces O8837AB when stocks are exhausted
1шт.
ELBOW - 3/8" tube size Imp #89LB (222-437)
2шт.
BOLT - 5/16" x 3/4" N.F. hex. (14-512) nut (25-115)
2шт.
O8837AB
FILTER - liquid (Ensign #6257) replaced by A24535 when stocks are exhausted
1шт.
BOLT - 5/16" x 3/4" N.F. hex. (14-512) nut (25-115)
2шт.
ELBOW - 3/8" Imp #89LB (222-437)
2шт.
17
F11092
BRACKET - filter
1шт.
BOLT - 5/16" x 3/4" N.F. hex. (14-512) nut (25-115)
2шт.
18
F11178
TUBE - filter to flexible connector
1шт.
F11179
LOOM - for F11178 tube
1шт.
19
O3092AB
CLIP - 1 for fuel line F11093, 1 for F11180
2шт.
20
F11180
TUBE - flexible, Serial Range: connector-regulator
1шт.
F11198
COVER - canvas, fuel line (Not shown)
1шт.
F11196
CLIP - fuel line (Not shown)
1шт.
BOLT - 5/16" x 3/4" N.F. hex. (14-512) nut (25-115)
1шт.
21
A21229
STIFFENER
CARBURETOR - (Ensign XG 1-1/4" no. 9262)
1шт.
22
A21231
REGULATOR - (Ensign W no. 9261)
1шт.
Выбрано товаров: 40
