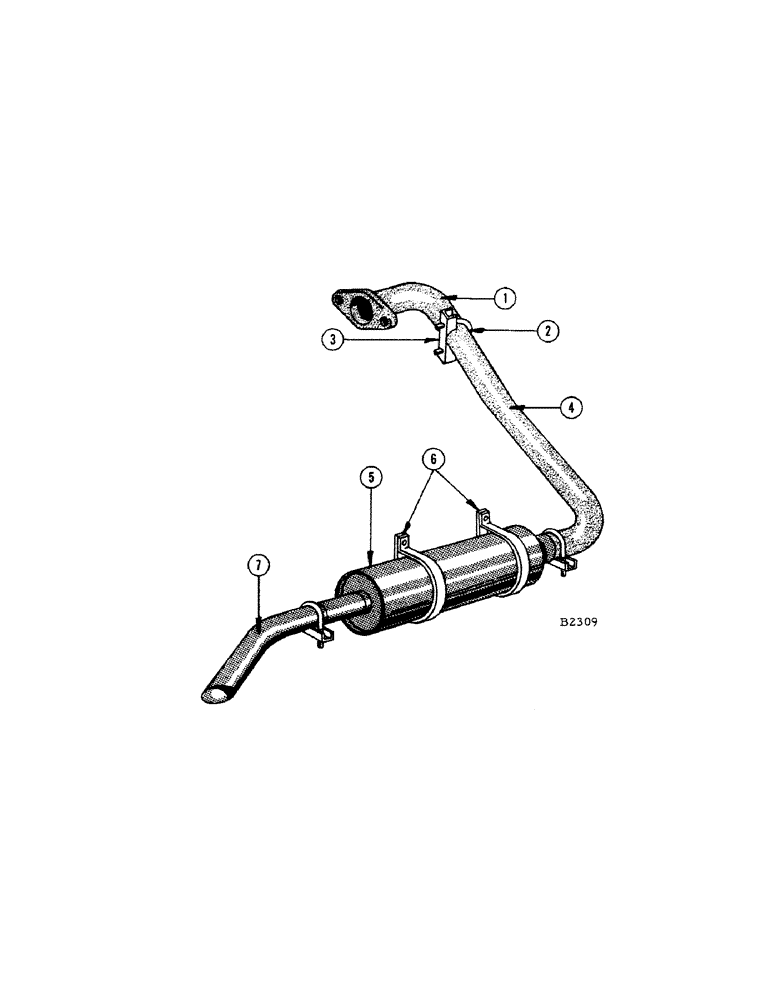

Запчасти Case IH 1010 (444[A]) - A301 D-F ENGINE, MUFFLER AND EXHAUST PIPE (10) - ENGINE

1

F1291

ELBOW - exhaust

1шт.

*

BOLT - 1/2" x 1" N.C. hex. (13-816) L.W. (92-8)

2шт.

2

F8052

CLAMP

"U" BOLT - exhaust pipe

3шт.

*

NUT - 5/16" N.C. hex. (25-105) L.W. (92-5)

6шт.

3

F9403

CLAMP - for "U" bolt

3шт.

4

F10129

PIPE - exhaust

1шт.

6

F9407

CLAMP - muffler support, Serial Range: (Bolts-F77020)

2шт.

*

BOLT - 5/16" x 1" N.F. hex. (14-516) nut (25-115)

2шт.

7

F10235

PIPE - exhaust extension

1шт.
