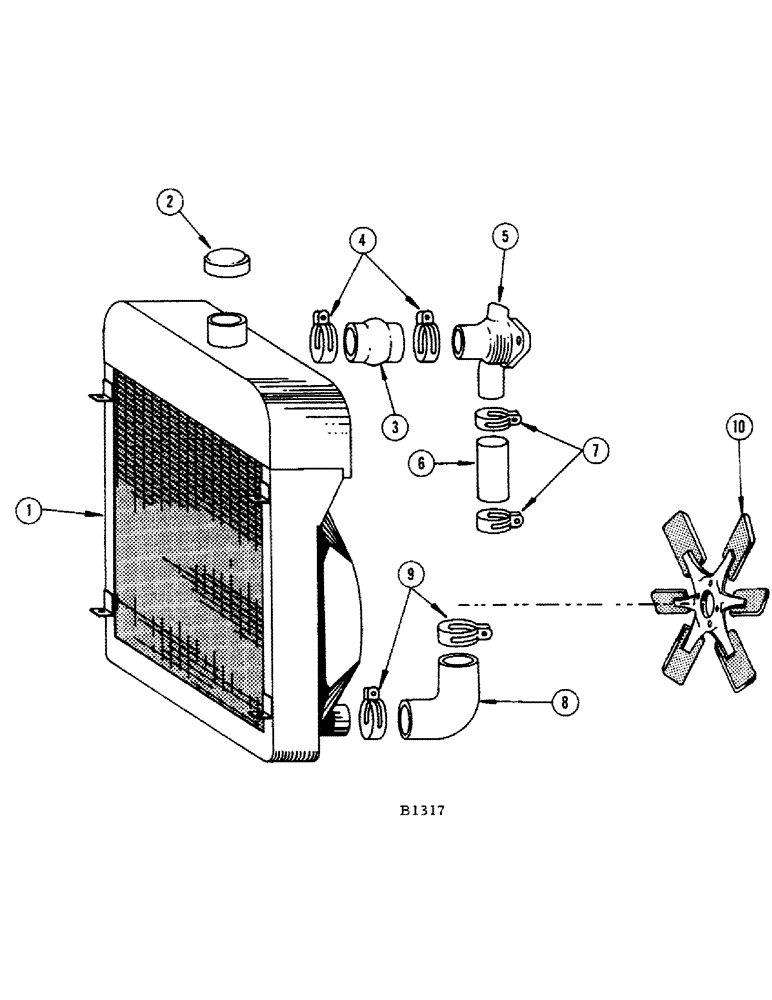

Запчасти Case IH 1010 (440) - A284 G-F, A284 LP-F, A301 D-F ENGINES, RADIATOR (10) - ENGINE

1

F8066

RADIATOR

1шт.

PLUG - 1/4" sq. hd. pipe (221-12)

1шт.

2

F5922

CAP

- radiator pressure

1шт.

3

F8067

RADIATOR HOSE

HOSE - radiator inlet

1шт.

4

214-35

CLAMP

- #18 hose

2шт.

5

A20374

HOUSING

- thermostat, water manifold

1шт.

BOLT - 3/8" x 1-1/8" N.C. hex. (13-618) L.W. (92-6)

2шт.

PLUG - 3/8" sq. hd. pipe (221-13)

1шт.

6

O10720AB

X

HOSE - water by-pass

1шт.

7

214-18

CLAMP

- #9 hose (1-5/8" O.D.)

2шт.

8

F10159

HOSE

- water, Serial Range: pump-radiator

1шт.

9

214-31

X

CLAMP - #15 hose

2шт.

10

F9363

FAN - radiator

1шт.
