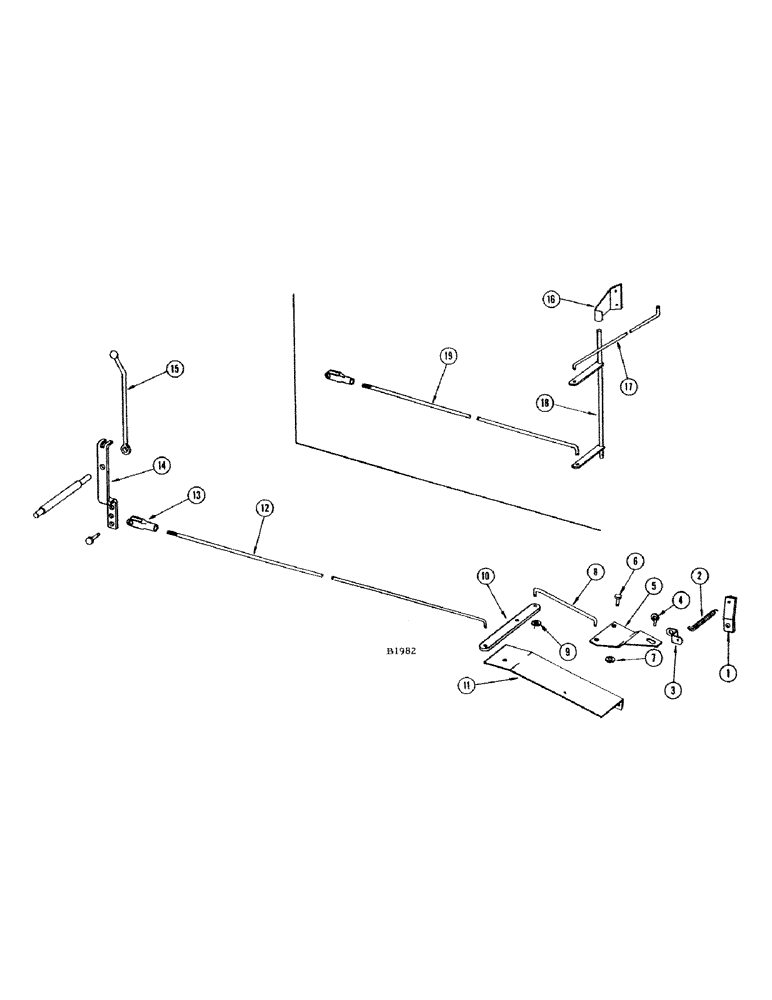

Запчасти Case IH 1010 (438) - A301 D-F ENGINE, THROTTLE CONTROL (10) - ENGINE

1

F8783

CLIP - throttle return spring

1шт.

2

O183N

SPRING

1шт.

3

F9906

CLIP - throttle return spring

1шт.

4

F8784

STUD - throttle rod

1шт.

NUT - 3/8" N.F. hex. (25-116)

2шт.

5

F10122

BELLCRANK - throttle rod

1шт.

6

O156CB

BOLT - anchor, throttle bellcrank

1шт.

NUT - 3/8" N.C. hex. (25-106) L.W. (92-6)

1шт.

7

O5087A

X

WASHER - (1" O.D. x 17/32" I.D. #16 ga.) For O156CB bolt

1шт.

8

F11175

LINK - pivot, Serial Range: shaft-bellcrank

1шт.

PIN - 3/32" x 1/2" cotter (132-24)

2шт.

9

V20207

X

WASHER - for F11195 link

1шт.

10

F11169

LEVER - throttle pivot

1шт.

11

F11166

ANGLE - upper, throttle pivot support

1шт.

BOLT - 3/8" x 1" N.F. hex. (14-616) nut (25-116)

1шт.

12

F11208

ROD - throttle

1шт.

NUT - 1/4" N.F. hex. (25-114)

1шт.

PIN - clevis (141-2)

1шт.

PIN - 1/16" x 1/2" cotter (132-5)

1шт.

PIN - 3/32" x 5/8" cotter (132-25)

1шт.

13

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS

1шт.

14

F8199

ARM - throttle control

1шт.

15

F11493

LEVER - throttle control

1шт.

16

F12204

SUPPORT - lower, throttle pivot (Bagger)

1шт.

17

F12203

ROD - throttle, rear (Bagger)

1шт.

18

F86228

PIVOT - bagger

1шт.

19

F12200

ROD - throttle, front (Bagger)

1шт.

CLEVIS - (213-2)

1шт.

VT2852

SPRING - throttle control (Not shown)

1шт.
