Запчасти Case IH 915 (14-3) - SUSPENSION, STEERING AXLE, ADJUSTABLE Suspension

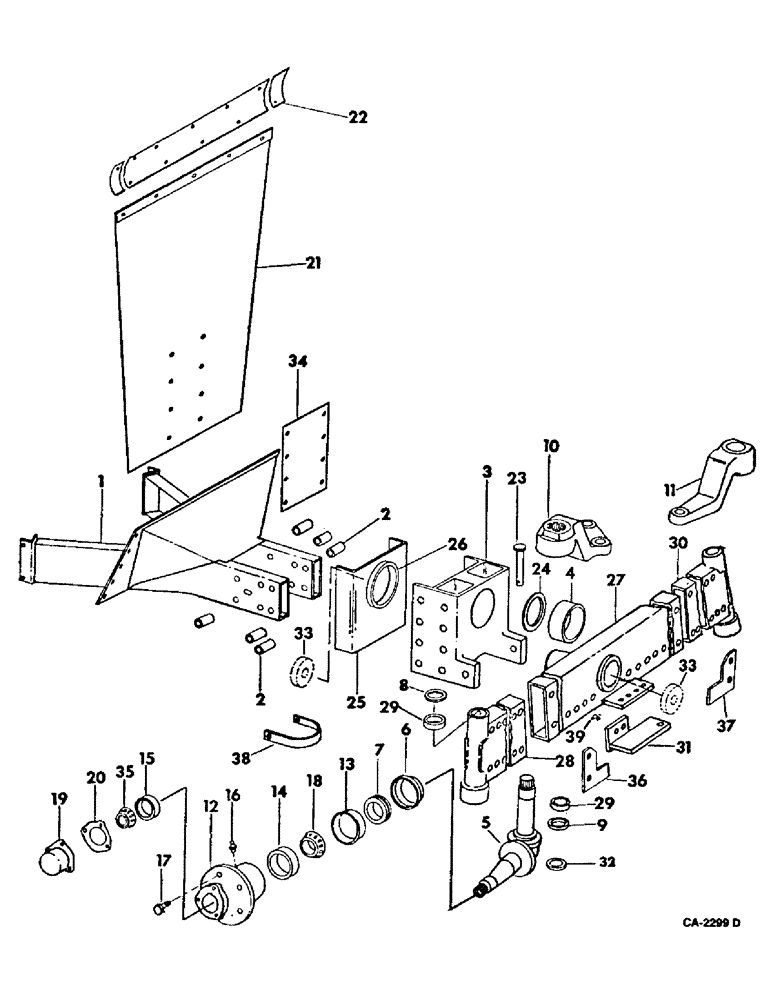

Схема запчастей Case IH 915 - (14-3) - SUSPENSION, STEERING AXLE, ADJUSTABLE Suspension
2
34
38
22
16
30
6
29
35
8
3
28
14
27
10
29
12
4
26
33
19
21
15
7
25
32
24
1
20
37
2
39
31
13
36
17
5
9
18
33
11
23

Артикул

Название

Примечание

Количество

1

177784C1

SUPPORT ASSY, steering axle

1шт.

454998

BOLT,Hex, 1/2" - 13 x 1", Gr 8

1/2 x 1 hex-hd type 8

10шт.

24896R1

BOLT,Hex, 3/4" - 10 x 5", Gr 8

8шт.

380916R1

BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 8

3/4 x 1-1/2 hex-hd type 8

4шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

10шт.

177744C1

FLANGE NUT,Flg, USR, 3/4"-10

3/4 flange lock

12шт.

25712R1

WASHER

NUT, 1-1/8-NF phc p/t lock type 8

8шт.

2

177748C1

SPACER

GUIDE STEERING SUPPORT 13/16 x 1-1/4 x 2-13/16

12шт.

3

177749C92

SUPPORT ASSY.

SUPPORT ASSY, steering axle pivot, includes ref no 4

1шт.

4

177751C1

BUSHING,101.7mm ID x 106.36mm OD x 38.1mm L

axle pivot

1шт.

5

196334C2

KNUCKLE

ASSY, steering

2шт.

427646

SLOTTED NUT,7/8"-14, G5

NUT, 7/8-14 NF hex slt

2шт.

427547

JAM NUT,Jam, 1 3/8"-12, G5

1-3/8-24 NF hex

1шт.

137228

COTTER PIN,5/32" x 1 1/2"

PIN, SPLIT (COTTER), 5/32" x 1 1/2"

2шт.

370255R2

WASHER,22.63mm ID x 47.75mm OD x 4.18mm Thk

.891 x 1.88 x 5 ga

2шт.

22827R1

WASHER

1-13/32 x 2-3/4 x 16 ga hard

2шт.

6

48701D

SHIELD

steering knuckle dust

2шт.

7

370254R91

OIL SEAL,57.02mm ID x 82.55mm OD x 6.86mm Thk

steering knuckle oil

2шт.

8

146008R1

SNAP RING,M41.15 x 2.46mm Thk, Ext

RING, steering knuckle retainer, serial no. 23000 and below

2шт.

9

405831R91

BEARING

ASSY, steering knuckle thrust

2шт.

10

177776C2

ARM

steering knuckle LH

1шт.

11

177777C1

ARM

steering knuckle RH

1шт.

12

391823R11

HUB

ASSY, steering axle 6 bolt type

2шт.

12

391823R11GV

HUB

Value, Hub Assy.

2шт.

12

391824R11

HUB ASSY.

HUB ASSY, steering axle 8 bolt type

2шт.

13

48703D

RETAINER

steering axle hub seal

2шт.

14

619387R1

BEARING CUP

BEARING, steering axle hub inner cub

2шт.

15

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Steering axle hub outer

2шт.

16

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 str drive lub

2шт.

16

19700R91

FITTING

3/16 45 deg drive lub

2шт.

17

364451R1

BOLT,9/16" - 18 x 1 7/32"

steering axle

1шт.

18

G15215

ROLLER BEARING

BEARING ASSY, steering axle hub inner cone

2шт.

19

369859R1

CAP

steering axle hub

2шт.

21533R1

BOLT

SCREW, 5/16 x 5/8 hex-hd cap

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

20

369860R1

GASKET,0.79mm Thk

steering axle hub cap

2шт.

21

196422C1

SHIELD

ASSY, steering axle

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

5шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd mach

5шт.

21448R1

WASHER

11/32 x 3/4 x 16 ga

5шт.

22

179417C1

SEAL

SUPPORT, steering axle shield

1шт.

23

177762C1

PIN

steering axle pivot tube

1шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

1шт.

24

168385C2

WASHER,102.6mm ID x 127mm OD x 3.3mm Thk

steering axle pivot type

3шт.

25

177781C92

SUPPORT ASSY.

SUPPORT ASSY, guide wheel axle, includes ref no 26

1шт.

24896R1

BOLT,Hex, 3/4" - 10 x 5", Gr 8

4шт.

177744C1

FLANGE NUT,Flg, USR, 3/4"-10

3/4 phc flange lock type 8

4шт.

25712R1

WASHER

.812 x 1.500 x .179 hdn

1шт.

26

177751C1

BUSHING,101.7mm ID x 106.36mm OD x 38.1mm L

steering axle front pivot

1шт.

27

195093C1

AXLE

ASSY, wide adjustable, 67 to 91 inches

1шт.

27

178484C3

AXLE ASSY, narrow adjusting, 56 to 68 inches

1шт.

28

177763C91

EXTENSION ASSY.

EXTENSION ASSY, wide adjustable steering axle LH, 67 to 91, inches, includes ref. no. 29

1шт.

28

178488C91

EXTENSION

ASSY, narrow adjusting, steering axle LH, 56 to 68 inches, includes ref no 29

1шт.

177744C1

FLANGE NUT,Flg, USR, 3/4"-10

3/4 flange lock

4шт.

271781

BOLT (SPREADER),Hex, 3/4" - 10 x 4 1/2", Gr 5

SCREW, 3/4 x 4-1/2 hex-hd cap

4шт.

29

376099R1

BUSHING

axle spindle pivot tube

4шт.

30

177764C91

EXTENSION ASSY.

EXTENSION ASSY, wide adjustable axle RH, 67 to 91 inches

1шт.

30

178489C91

EXTENSION

ASSY, narrow adjustable axle RH, 56 to 68 inches, includes ref no 29

1шт.

177744C1

FLANGE NUT,Flg, USR, 3/4"-10

3/4 flange lock

4шт.

NLS

NO LONGER SERVICED

SCREW, 3/4 x 4-1/2 hex-hd cap

4шт.

31

177769C2

ANCHOR

ASSY, wide adjustable steering cylinder, 67 to 91 iches

1шт.

177744C1

FLANGE NUT,Flg, USR, 3/4"-10

3/4 flange lock

2шт.

21218R1

BOLT,Hex, 3/4" - 10 x 5 1/4", Gr 5

3/4 x 5-1/4 type 5

2шт.

32

15943DA

SEALING WASHER,60.33mm ID x 72.23mm OD x 4.76mm Thk

Steering knuckle pivot felt

2шт.

33

SEAL, steering hose, refer to group 10 under steering and header lift

1шт.

34

179420C1

CUSHION

steering axle shield wear

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

5шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd mach

5шт.

21448R1

WASHER

11/32 x 3/4 x 16 ga

5шт.

35

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

BEARING ASSY, steering axle hub outer cone

2шт.

36

196163C1

STOP ASSY, steering axle LH, serial no. 12000 and below

1шт.

37

196164C1

STOP ASSY, steering axle RH, serial no. 12000 and below

1шт.

38

196084C1

BAR

STRAP, combine tow

1шт.

24876R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

1шт.

174763C1

FLANGE NUT,Flg, USR, 5/8"-12

5/8 flange lock

1шт.

39

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 straight drive lub

2шт.

Выбрано товаров: 76
