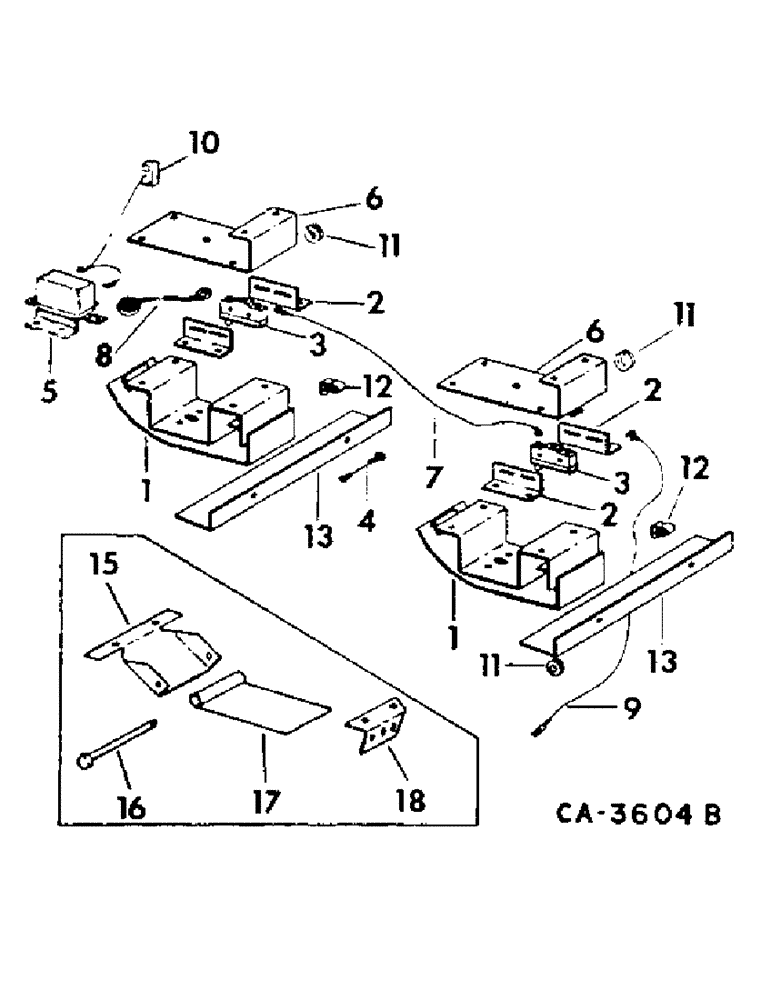

Запчасти Case IH 915 (22-7) - STRAW WALKER, STRAW WALKER WARNING SYSTEM Straw Walkers

174955C91

PARTS ACCESSORY, straw rack warning system, for combines not equipped w/straw chopper

1шт.

1

BRACKET ASSY, warning switch, order service package 180781C91

2шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 whiz lock

8шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 slt-truss-hd

8шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga

4шт.

2

166225C2

SUPPORT

warning horn switch, s/n 26000 and below

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1/4 whiz lock

8шт.

938075R1

SCREW, 1/4 x 3/4 slt-truss-hd

8шт.

3

574649R91

SWITCH

micro

2шт.

134530

NUT,Hex, #6 - 32

4шт.

436670

SCREW,Slotted Pan Hd, #6-32 x 1 1/4"

no. 6 x 1-1/4 slt-pan-hd

4шт.

131044

LOCK WASHER

Lock, #6

4шт.

495-31016

WASHER,#6

.158 x .375 x .036

1шт.

4

167580C91

WIRE, micro switch ground, s/n 26000 and below

1шт.

4

175008C1

CABLE ASSY.

CABLE, micro switch to ground, s/n 26001 and above

1шт.

5

921926C1

SWITCH

RELAY, straw walker warning horn

1шт.

19302R1

NUT

no. 10 hex

3шт.

436732

SCREW,Slotted Pan Hd, #10-24 x 1/2"

no. 10 x 1/2 pan-hd slt

1шт.

436734

SCREW,Slotted Pan Hd, #10-24 x 3/4"

no. 10 x 3/4 pan-hd slt

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

6

161704C1

SUPPORT, straw walker switch

2шт.

12653R1

BOLT (SPREADER),Short NK, 1/4"-20 x 3/4", G2

BOLT, CARRIAGE, Short NK, 1/4"-20 x 3/4", G2

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

8шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

21801R1

WASHER

9/32 x 3/4 x 16 ga

2шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 slt-truss-hd

8шт.

7

174495C1

CABLE, front to rear micro switch, 69 in.

1шт.

8

174092C1

WIRE ASSY, relay to micro switch

1шт.

9

174497C1

CABLE

engine to micro switch, 192 in.

1шт.

10

174498C1

CABLE, relay to fuse block

1шт.

11

117959

GROMMET,5/16" ID x .719" x .062"

no 3 rubber diagonal cut

1шт.

12

365584R1

CLIP

front to rear micro switch cable

6шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

6шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss hd

6шт.

12

366460R1

CABLE CLIP

CLIP, engine to micro switch cable

1шт.

13

171861C2

RETAINER, straw walker wire

2шт.

564791R1

SPRING NUT

1/4 speed

6шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 slt-truss-hd

6шт.

14

174092C1

WIRE ASSY, relay to micro switch

1шт.

15

188742C1

SUPPORT, warning horn switch, s/n 26001 and above

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

16

28051R1

HEADED PIN,3/8" x 3 3/4"

PIN, warning horn switch support, s/n 26001 and above

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

17

188743C1

HINGE, warning horn switch, s/n 26001 and above

1шт.

18

188744C1

SUPPORT, warning horn switch

1шт.

937875R1

SCREW,Serr, 1/4" - 20

1/4 x 3/4 slt-truss-hd

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

180781C91

PACKAGE

SERVICE PACKAGE, straw chopper warning horn switch mounting support replacement for 1711732C1, consists of

1шт.

188742C1

SUPPORT

1шт.

188743C1

HINGE, warning horn switch

1шт.

188744

SUPPORT, warning horn switch

1шт.

28051R1

HEADED PIN,3/8" x 3 3/4"

PIN, 3/8 x 3-3/4 znd type 1 hd

17шт.

648002

KNIFE

1/8" x 3/4"

17шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

495-31016

WASHER,#6

.156 x .375 x .036

1шт.

175008C1

CABLE ASSY.

WIRE

1шт.

937875R1

SCREW,Serr, 1/4" - 20

1/4 x 3/4 slt-truss-hd

1шт.

109390

GROMMET,5/16" ID x 23/32" x .062", Diag Cut

instruction manual

1шт.
