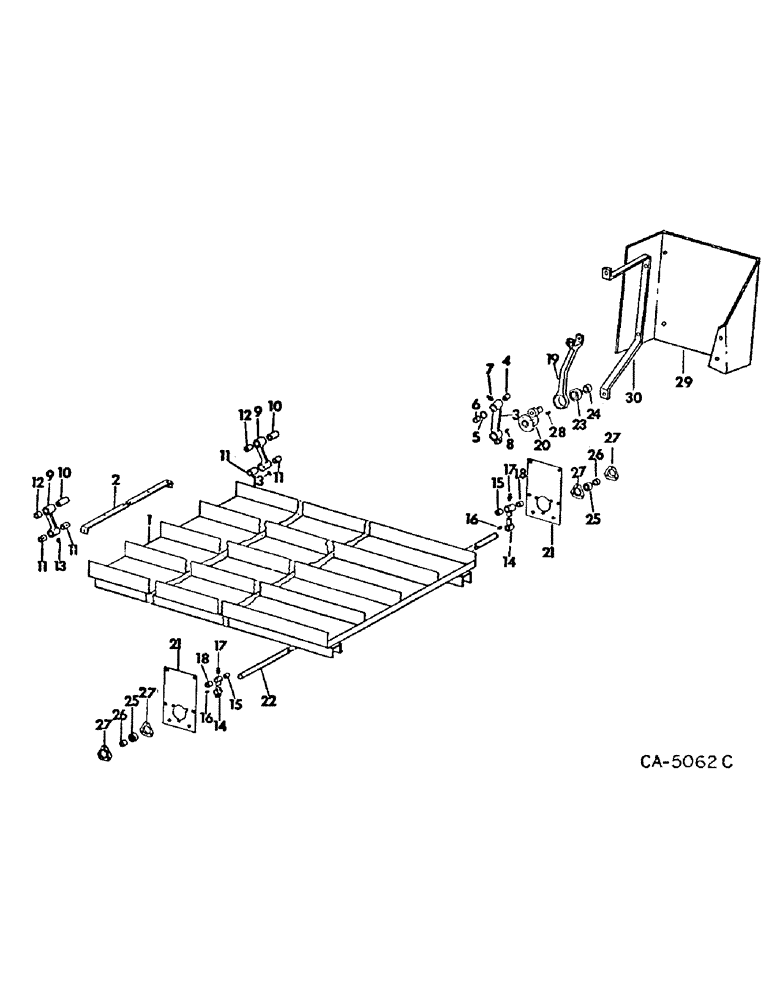

Запчасти Case IH 915 (22-5) - STRAW WALKER, STRAW WALKER RETURN PAN AND DRIVE, S/N 19001 AND ABOVE Straw Walkers

1

177269C1

PAN

ASSY, straw walker return

1шт.

2

179119C1

BAR, return pan reinforcement

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16 x 1/2 hex-hd flange lock

10шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

10шт.

3

160048C11

LEVER

ARM ASSY, straw walker return pan crank

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8 x 1-1/4 hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

4

276574R91

NEEDLE BEARING

ASSY, straw walker return pan

2шт.

5

459035R91

SEAL

SEAL, straw walker return pan crank arm oil

2шт.

180190

LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5

BOLT, 1/2 x 3 type 5

17шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

17шт.

120384

WASHER,1/2"

LOCK, 1/2"

17шт.

6

160047C1

BUSHING

SLEEVE, straw walker return pan crank arm

1шт.

7

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 str lub

1шт.

8

88907

WOODRUFF KEY,#B, 5/16" x 1", HT

KEY, 5/16 x 1 Woodruff hard

1шт.

9

160040C11

ARM

ASSY, straw walker return pan front, includes ref nos 10 and 11

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

180190

LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5

SCREW, 1/2 x 3 hex-hd cap

2шт.

180191

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

SCREW, 1/2 x 3-1/4 hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga

2шт.

180191

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

1/2 x 3-1/4 type 5

17шт.

10

160041C1

COMPOSITE RING

BUSHING, straw walker return pan front hanger arm

4шт.

11

382638R2

BUSHING,19.07mm ID x 22.24mm OD x 19.05mm L

straw walker return pan front hanger arm

4шт.

12

160047C1

BUSHING

SLEEVE, straw walker return pan front hanger arm

2шт.

13

16964R91

FITTING

1/4-28 90 deg lub

2шт.

14

160049C11

ARM

ASSY, straw walker return pan rear hanger, includes ref no. 15

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8 x 1-1/4 hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

15

382638R2

BUSHING,19.07mm ID x 22.24mm OD x 19.05mm L

straw walker return pan

4шт.

16

88907

WOODRUFF KEY,#B, 5/16" x 1", HT

KY, 5/16 x 1 Woodruff

2шт.

17

16964R91

FITTING

1/4-28 90 deg lub

2шт.

18

160047C1

BUSHING

SLEEVE, straw walker return pan rear hanger arm

2шт.

19

197783C1

ARM

straw walker return pan drive pitman

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

180192

BOLT (SPREADER),Hex, 1/2" - 13 x 3 1/2", Gr 5

SCREW, 1/2 x 3-1/2 hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

20

197780C91

ARM

CRANK ASSY, return pan crank

1шт.

NLS

NO LONGER SERVICED

5/16 hex jam

2шт.

178758

SET SCREW,Sq Hd, 5/16" - 18 x 3/4", Cup Pt

SCREW, 5/16 x 3/4 sq-hd cup-pt set

2шт.

576517R1

LOCK PIN,1/4" x 1 1/2", Slotted

Pin, 1/4" x 1 1/2", Slotted

1шт.

21

177275C1

SUPPORT, straw walker return pan brg

2шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 sq-hd crg

1шт.

18684

BOLT, 3/8 x 1-1/4 sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

22

197608C1

SHAFT, straw walker return pan

1шт.

22050R1

WASHER

1-9/32 x 1-3/4 x .054

1шт.

23

455959R92

BEARING ASSY,28.57mm ID x 62mm OD x 18mm W

ASSY, straw walker return pan drive pitman

1шт.

24

557115R11

COLLAR

COLLAR W/SET SCREW, straw walker return pan drive pitman brg lkg

1шт.

25

160055C91

BALL BEARING,1.127" ID x 2.441" OD x 1.013"

BEARING ASSY, straw walker return pan crankshaft

2шт.

26

572224R11

COLLAR

w/set screw, straw walker return pan crankshaft brg lkg

2шт.

27

571425R1

FLANGED BEARING

straw walker return pan crankshaft brg

4шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 sq-nk crg

6шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

28

117991

WOODRUFF KEY,#D, 5/16" x 1 1/4", HT

1шт.

29

196365C1

SUPPORT, return pan drive shield

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

30

196395C1

SUPPORT, straw walker return pan drive

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

2шт.
