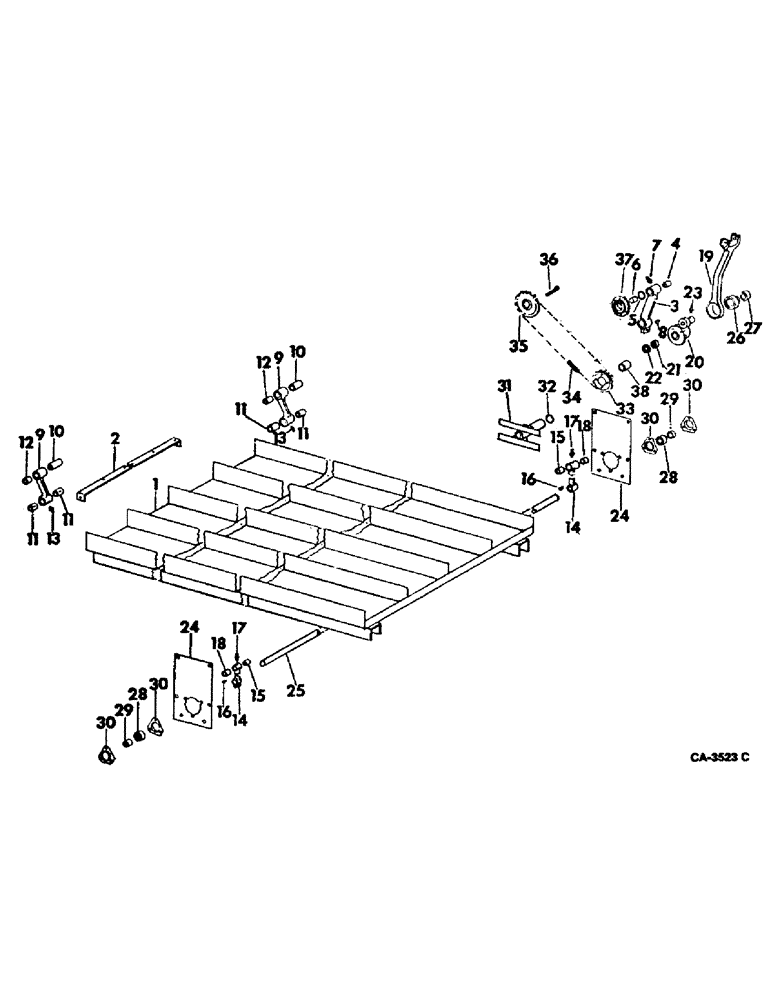

Запчасти Case IH 915 (22-3) - STRAW WALKER, STRAW WALKER RETURN PAN AND DRIVE, S/N 19000 AND BELOW Straw Walkers

180404C91

PARTS ACCESSORIES, straw walker speed drive sprocket 160 rpm, consists of ref no 33 and 34 of this unit and ref no 23 of straw walker and drive unit and one 1095242R1 instruction manual, serial no. 19000 and below

1шт.

1

177269C1

PAN

ASSY, straw walker return

1шт.

2

179119C1

BAR, return pan tie reinforcement

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16 x 1/2 znd hex-hd flange lock

10шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

10шт.

3

160048C11

LEVER

ARM ASSY, straw walker return pan front

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8 x 1-1/4 C-Z hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

4

276574R91

NEEDLE BEARING

ASSY, straw walker return pan crank arm

2шт.

5

459035R91

SEAL

SEAL, straw walker return pan crank arm oil

2шт.

180190

LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5

BOLT, 1/2 x 3 type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

6

160047C1

BUSHING

SLEEVE, straw walker return pan crank arm

1шт.

7

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 str lub

1шт.

8

88907

WOODRUFF KEY,#B, 5/16" x 1", HT

5/16 x 1 Woodruff hard

1шт.

9

160040C11

ARM

ASSY, straw walker return pan front hanger, includes ref nos 10 and 11

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

180190

LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5

SCREW, 1/2 x 3 hex-hd cap

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga

2шт.

180191

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

1/2 x 3-1/4 type 5

1шт.

10

160041C1

COMPOSITE RING

BUSHING, straw walker return pan front hanger arm

2шт.

11

382638R2

BUSHING,19.07mm ID x 22.24mm OD x 19.05mm L

straw rack return pan front hanger arm

4шт.

12

160047C1

BUSHING

SLEEVE, straw walker return pan front hanger arm

2шт.

13

16964R91

FITTING

1/4-28 90 deg lub

2шт.

14

160049C11

ARM

ASSY, straw walker return pan rear hanger, includes ref no.15

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8 x 1-1/4 hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

15

382638R2

BUSHING,19.07mm ID x 22.24mm OD x 19.05mm L

straw walker return pan

4шт.

16

88907

WOODRUFF KEY,#B, 5/16" x 1", HT

5/16 x 1 Woodruff

2шт.

17

16964R91

FITTING

1/4-28 90 deg lub

2шт.

18

160047C1

BUSHING

SLEEVE, straw walker return pan rear hanger arm

2шт.

19

160050C1

ARM

straw walker return pan drive pitman

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

180192

BOLT (SPREADER),Hex, 1/2" - 13 x 3 1/2", Gr 5

SCREW, 1/2 x 3-1/2 hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

20

177276C91

CRANK

ASSY, straw walker return pan hub, includes ref nos 20 and 21

1шт.

21

453129R91

NEEDLE BEARING

BEARING ASSY, return pan drive

2шт.

22

564808R91

WIPER

SEAL, return pan drive oil

2шт.

23

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28NS str lub

1шт.

24

177275C1

SUPPORT, straw walker return pan bearing

2шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 sq-nk crg

3шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

25

177274C1

SHAFT, straw walker return pan

1шт.

26

455959R92

BEARING ASSY,28.57mm ID x 62mm OD x 18mm W

ASSY, straw walker return pan drive pitman

1шт.

27

557115R11

COLLAR

COLLAR W/SET SCREW, straw walker return pan drive pitman brg lkg

1шт.

28

160055C91

BALL BEARING,1.127" ID x 2.441" OD x 1.013"

BEARING ASSY, straw walker return pan crankshaft

2шт.

29

572224R11

COLLAR

W/SET SCREW, straw walker return pan crankshaft brg

2шт.

30

571425R1

FLANGED BEARING

straw walker return pan

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 sq-nk crg

6шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

31

177278C1

SUPPORT ASSY.

SUPPORT, return pan drive rivot

1шт.

32

454319R1

RING

1.125 shaft external retaining return pan drive pivot shaft

1шт.

33

177285C1

SPROCKET ASSY.

SPROCKET, return pan driven 18-T

1шт.

33

196204C1

SPROCKET ASSY.

SPROCKET, return pan driven 20-T, fast speed 160 rpm, parts asscessory

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 hex-hd mach

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

34

CHAIN ASSY, return pan drive, use 63 links from 10-ft roll marked 1791 D and one connecting link 1310 D

1шт.

34

1315D

LINK

offset chain, fast speed 160 rpm, parts accessory

1шт.

35

177284C1

SPROCKET ASSY.

SPROCKET ASSY, return pan driver 28-T

1шт.

36

Q81

KEY,Gib, 3/8" Sq x 1 3/4"

3/8 x 1-3/4 gib

1шт.

37

631905R91

SPROCKET

return pan drive chain idler 17-7 teeth

1шт.

18449R1

BOLT,Short NK, 5/8"-11 x 3", G2

5/8 x 3 crg type 1

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 hex

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga

1шт.

22858R1

SQ HOLE WASHER,41/64" x 1 1/4" x .105", Sq Hole

21/32 sq x 1-1/4 x 12 ga

2шт.

38

179999C1

SPACER

return pan drive hub

1шт.
