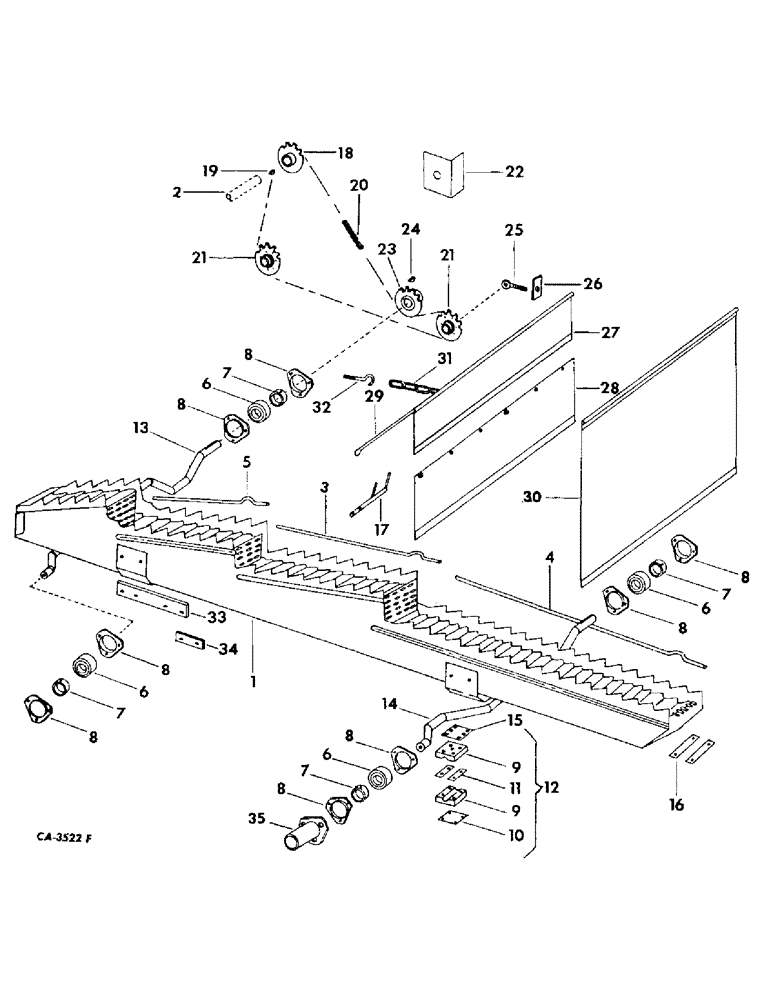

Запчасти Case IH 915 (22-1) - STRAW WALKER, STRAW WALKER AND DRIVE Straw Walkers

1

177204C91

STRAW WALKER

WALKER ASSY, straw, includes ref. nos. 3, 4 and 5

5шт.

2

JACKSHAFT, elevator drive, refer to group 25 under grain elevator drive for unit listing

1шт.

3

937301R1

ELECTRICAL WIRE

WIRE, straw walker riser center

25шт.

4

157976C1

ELECTRICAL WIRE

WIRE, straw walker riser rear

25шт.

5

937300R1

ELECTRICAL WIRE

WIRE, straw walker riser front

25шт.

6

611583R91

BALL BEARING

BEARING, straw walker crankshaft

4шт.

7

517645R11

COLLAR

W/SET SCREW, straw walker crankshaft lkg

4шт.

8

180955C1

FLANGED BEARING,0.375"

FLANGE, straw walker crankshaft brg

2шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

9

BLOCK, straw walker crankshaft brg, not serviced separately order package 166067C91

1шт.

10

189735C1

BAR

STRAP, straw walker crankshaft bearing bolt lock

10шт.

11

607065R1

GASKET

SHIM, straw walker crankshaft brg block, .052 thick

40шт.

12

166067C91

STRIPPER PACKAGE

PACKAGE, straw walker crankshaft brg, includes ref nos 9, 10 and 11

1шт.

126667

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3 1/4", Gr 2

BOLT, 5/16 x 3-1/4 sq-nk crg

1шт.

9412083

NUT,5/16"-18, GB

NUT, 5/16 cad p/t lock type 5

1шт.

13

177202C1

CRANKSHAFT

straw walker front

1шт.

14

177203C1

CRANKSHAFT

straw walker rear, serial no. 19000 and below

1шт.

14

197854C1

CRANKSHAFT

straw walker rear, serial no. 19001 and above

1шт.

15

160004C1

BAR

PLATE, straw walker rear saddle

5шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 sq-nk crg

10шт.

120377

NUT,3/8" - 16, Gr 5

10шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

10шт.

619854R1

WASHER, 13/32 x 1 x 16 ga

10шт.

16

168494C1

SHIM

straw walker, .020 thick

20шт.

17

178476C1

RISER

ASSY, straw walker

10шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 sq-hd crg

16шт.

120376

NUT,5/16"-18, G5

16шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

16шт.

18

170426C2

SPROCKET ASSY.

SPROCKET ASSY, straw walker drive 23-T

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

22752R1

SPLIT PIN/SAFETY PIN

PIN, 3/8 x 2-1/4 std-hd

1шт.

19

88907

WOODRUFF KEY,#B, 5/16" x 1", HT

5/16 x 1 Woodruff

1шт.

20

CHAIN ASSY, straw walker drive, use 227 links from A 10-ft roll marked 1791D and one connecting link 131OD

1шт.

21

631905R1

SPROCKET ASSY.

SPROCKET ASSY, straw walker drive, idler and tightener 17-T

2шт.

18619R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 2

5/8 x 2-1/4 hex-hd mach

1шт.

18449R1

BOLT,Short NK, 5/8"-11 x 3", G2

5/8 x 3 crg type 1

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 hex

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga

7шт.

608701R1

WASHER

21/32 x 1-1/4 x 11 ga

7шт.

22

179283C1

ANGLE, chain shield

1шт.

23

177862C1

SPROCKET ASSY.

SPROCKET ASSY, straw walker driven 66-T, regular, serial no. 19000 and below

1шт.

23

180405C1

SPROCKET ASSY.

SPROCKET ASSY, straw walker driven 57-T, fast speed 160 rpm, parts accessory, serial no. 19000 and below, regular, serial no. 19001 and above

1шт.

124824

NUT,Hex, 5/16" - 18

5/16 hex jam

1шт.

22339R1

SCREW, 5/16 x 1-1/4 sq-hd cup-pt set

1шт.

24

117991

WOODRUFF KEY,#D, 5/16" x 1 1/4", HT

1шт.

25

578609R1

BOLT,7/16" - 14 x 5"

straw walker drive chain tightener

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16 hex

2шт.

26

935157R1

STRIP, straw walker drive chain tightener bolt

1шт.

27

157184C2

VALVE BLOCK

SECTION, separator front check flap

1шт.

18654R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4 x 3/4 hex-hd mach

6шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

6шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

21870R1

WASHER

17/64 x 3/4 x 16 ga

6шт.

28

157181C2

FLAP

separator front check

1шт.

29

157177C1

ROD

separator check flap

1шт.

648002

KNIFE

1/8" x 3/4"

2шт.

30

157182C1

FLAP

separator rear check

1шт.

31

157178C91

CHAIN ASSY, separator front check flap adjustment

1шт.

18655R1

BOLT,Hex, 1/4"-20 x 1", G2

1/4 x 1 hex-hd mach

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

21870R1

WASHER

17/64 x 3/4 x 16 ga

1шт.

237585R1

HOSE CLAMP,#13, 13/16", Spring

CLAMP, spring wire hose

1шт.

32

H59564

PIN

separator front check flap adjustment chain

1шт.

33

196095C1

STRIP, straw walker crank seal

4шт.

34

178209C1

BAR, seal retainer strip

8шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

16шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

16шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

16шт.

35

196301C1

SHIELD ASSY, crankshaft

1шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

180404C91

STRAW WALKER, fast, speed drive sprocket 160 rpm, parts accessory, consists of ref. no. 23 of this unit and ref. nos. 33 & 34 of straw walker return pan and drive and 1095242R1 instruction manual, serial no. 19000 and below

1шт.

180579C91

STRAW WALKER BEARING CRANK SEALS, parts accessory, consists of ref. nos. 33 & 34 and 1095281R1 instruction manual

1шт.
