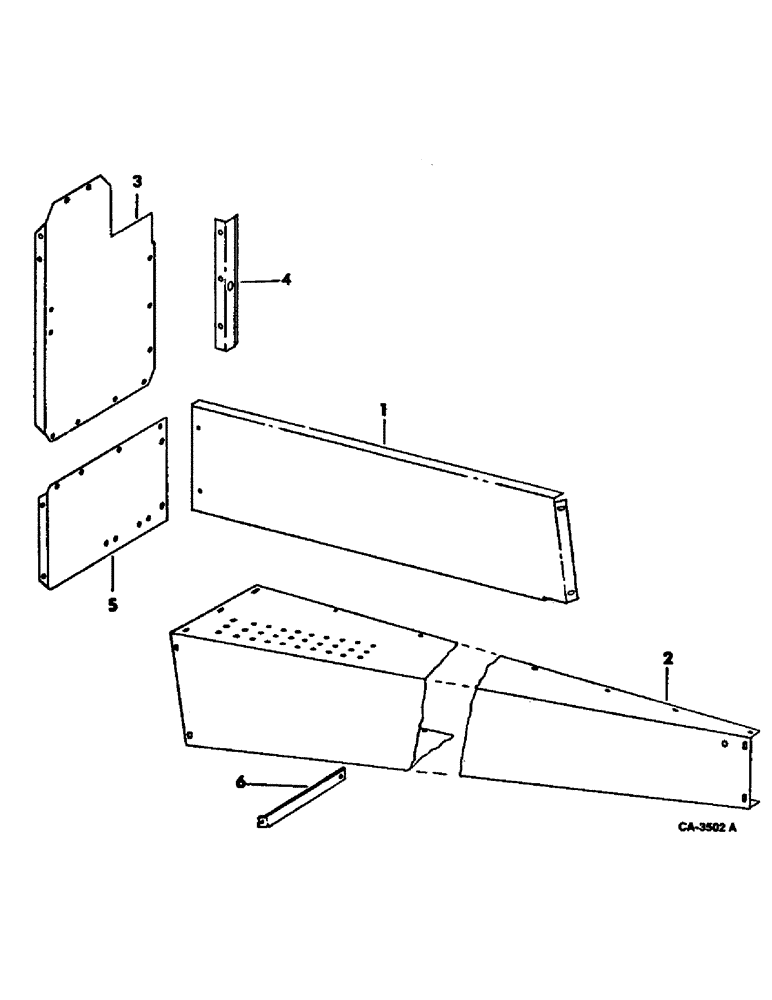

Запчасти Case IH 915 (20-04) - SEPARATOR, SEPARATOR SHIELD LEFT Separation

1

178361C2

SHIELD, separator LH trim

1шт.

18674R1

BOLT,Short NK, 5/16"-18 x 1 1/2", G2

5/16 x 3/4 hex-hd mach

2шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

2шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 slt-truss-hd

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

2

178777C1

SUPPORT, separator hood stiffener

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

6шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss hd

6шт.

3

178378C2

SHEET, LH rear upper tank trim

1шт.

4

178678C1

ANGLE, LH rear upper tank trim

1шт.

5

178377C1

SHEET, LH rear lower tank trim

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

6шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

6шт.

6

179093C1

BRACKET, separator LH stiffener support

1шт.
