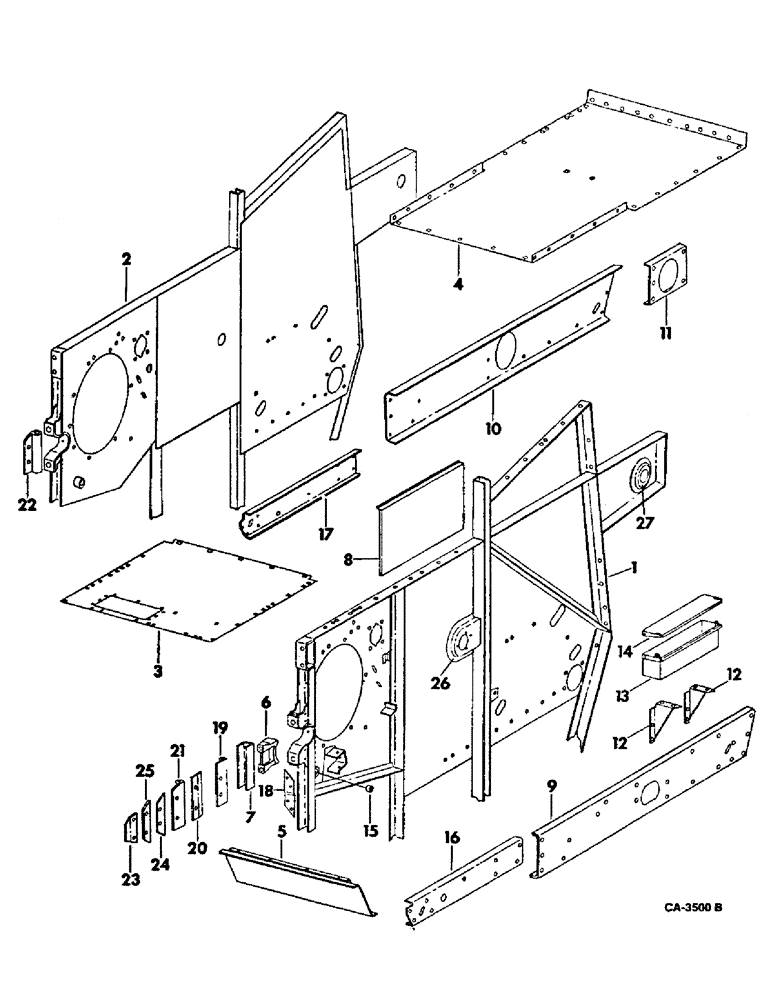

Запчасти Case IH 915 (20-01) - SEPARATOR Separation
№
Артикул
Название
Примечание
Количество
1
177615C93
SIDE ASSY, separator LH, includes ref no. 15 26 & 27
1шт.
18673R1
CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2
BOLT, 5/16 x 1/2 sq-nk crg
1шт.
454998
BOLT,Hex, 1/2" - 13 x 1", Gr 8
1/2 x 1 hex-hd type 8
1шт.
20739R1
BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 8
5/8 x 1-1/4 hex-hd type 8
1шт.
161068R1
BOLT,Spcl, Hex, 5/8" - 11 x 1 1/2"
5/8 x 1-1/4 hex-hd type 8
1шт.
432695R1
BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8
5/8 x 1-1/2 hex-hd type 8
1шт.
120376
NUT,5/16"-18, G5
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
21330R1
NUT,1/2"-13, G8
1/2 hex type 8
1шт.
487374R1
BEARING LOCK NUT,Flg, USR, 1/2"-13
1/2 flange lock
1шт.
21434R1
NUT,5/8"-11, G8
5/8 hex type 8
1шт.
174763C1
FLANGE NUT,Flg, USR, 5/8"-12
5/8 flange lock
1шт.
120377
NUT,3/8" - 16, Gr 5
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 slt-truss-hd
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
1шт.
366864C1
LOCK WASHER,1/2"
1/2"
1шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
1шт.
366866C1
LOCK WASHER,5/8"
5/8"
1шт.
2
177640C1
SIDE ASSY, separator RH, includes ref. no. 26 & 27
1шт.
454998
BOLT,Hex, 1/2" - 13 x 1", Gr 8
1/2 x 1 hex-hd type 8
1шт.
20739R1
BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 8
5/8 x 1-1/4 hex-hd type 8
1шт.
161068R1
BOLT,Spcl, Hex, 5/8" - 11 x 1 1/2"
1шт.
432695R1
BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8
5/8 x 1-3/4 hex-hd type 8
1шт.
120376
NUT,5/16"-18, G5
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
21330R1
NUT,1/2"-13, G8
1/2 hex type 8
1шт.
487374R1
BEARING LOCK NUT,Flg, USR, 1/2"-13
1/2 flange lock
1шт.
124589
BALL STUD,Hex, 5/8" - 11 x 2", Gr 5
5/8 hex
1шт.
21424R1
SNAP RING,#87, Ext
NUT, 5/8 hex-hd type 8
1шт.
174763C1
FLANGE NUT,Flg, USR, 5/8"-12
5/8 flange lock
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 slt-truss-hd
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
1шт.
366864C1
LOCK WASHER,1/2"
1/2"
1шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
1шт.
366866R1
RING
WASHER, 5/8 rib lock
1шт.
120377
NUT,3/8" - 16, Gr 5
1шт.
3
177508C1
TOP ASSY, separator front
1шт.
202107
BOLT, 5/16 x 3/4 hex-hd flange lock
5шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z flange lock
5шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 znp slt-truss-hd
5шт.
4
177510C1
TOP, separator rear
1шт.
16897R1
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
BOLT, 5/16 x 3/4 znd sq-nk crg
10шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z flange lock
25шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 znp slt-truss-hd
15шт.
166705C1
NUT
5/16-18 speed grip
1шт.
5
177544C1
SUPPORT ASSY, separator frame cross
1шт.
359787C1
LOCK NUT,1/2"-13, GC
NUT, 1/2 prev. torque
4шт.
25701R1
BOLT,Hex, 3/4" - 10 x 7 1/2", Gr 8
WASHER, .53 x 1.06 x .13 hard
8шт.
6
177549C1
CLAMP
feeder pivot
2шт.
18495R1
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2
3/8 x 1-1/4 znd hex-hd mach
4шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
4шт.
142619H
WASHER
13/32 x 3/4 x 11 ga
4шт.
7
177548C1
CHANNEL, feeder pivot clamp
2шт.
25740R1
BOLT,Hex, 7/8" - 9 x 2 3/4", Gr 8
7/8 x 1-3/4 phc hex-hd type 8
4шт.
24772R1
WASHER, 7/8 znd rib lock
4шт.
8
160401C2
DOOR, straw rack inspection
1шт.
18764R1
HARDWARE,Hex, 5/16"-18 x 3/4", G2
BOLT, 5/16 x 3/4 znd hex-hd mach
5шт.
935736R1
NUT, WING
NUT, 5/16 wing
5шт.
9
177513C2
CHANNEL, separator frame LH rear
1шт.
10
177514C2
CHANNEL, separator frame RH rear
1шт.
11
177517C1
CHANNEL, RH rear frame stiffener
1шт.
454998
BOLT,Hex, 1/2" - 13 x 1", Gr 8
1/2 x 1 hex-hd type 8
3шт.
487374R1
BEARING LOCK NUT,Flg, USR, 1/2"-13
1/2 znd flange lock
3шт.
12
161862C2
SUPPORT, tool box
2шт.
17433R1
HARDWARE,Hex, 1/2" - 13 x 1", Gr 2
BOLT, 1/2 x 1 znd hex-hd mach
4шт.
487374R1
BEARING LOCK NUT,Flg, USR, 1/2"-13
1/2 znd flange lock
4шт.
13
629767R91
BOX ASSY, tool
1шт.
18626R1
CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 1/2", Gr 2
BOLT, 1/4 x 1/2 znd sq-nk crg
4шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
4шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
4шт.
14
629769R1
TOP, tool box
1шт.
648002
KNIFE
1/8" x 3/4"
2шт.
21934R1
HEADED PIN,1/4" x 1/2"
PIN, 1/4 x 1/2 znd std-hd dld
2шт.
21784R1
WASHER
17/64 x 1/2 x 11 ga
2шт.
15
454172R1
BUSHING
concave leveling arm
1шт.
16
177511C1
CHANNEL, separator side front frame LH
1шт.
161068C1
BOLT, 5/8 x 1-1/2 znd hex-hd type 8
13шт.
174763C1
FLANGE NUT,Flg, USR, 5/8"-12
5/8 znd flange lock
13шт.
138557
WASHER,Int Tooth, 5/8"
5/8 znd int-tooth lock
13шт.
17
177512C1
CHANNEL, separator side front frame RH
1шт.
161068C1
BOLT, 5/8 x 1-1/2 znd hex-hd type 8
13шт.
174763C1
FLANGE NUT,Flg, USR, 5/8"-12
5/8 znd flange lock
13шт.
138557
WASHER,Int Tooth, 5/8"
5/8 znd int-tooth lock
13шт.
18
178917C1
BRACKET, separator post to main axle
2шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2 znd flange lock
6шт.
366864C1
LOCK WASHER,1/2"
1/2"
6шт.
19
177552C1
SEAL
feeder pivot lower
2шт.
20
177554C1
RETAINER
feeder pivot lower seal
2шт.
231-4144
NUT,1/4"-20, GB
NUT, 1/4 hex
4шт.
133781
SCREW,Sl Flat Hd, 1/4" - 20 x 1 1/4"
1/4 x1-1/4 znd slt-f-hd mach
4шт.
21
177550C1
SEAL
feeder pivot upper LH
1шт.
22
177551C1
SEAL
feeder pivot upper RH
1шт.
23
177553C1
RETAINER
feeder pivot upper seal
2шт.
231-4144
NUT,1/4"-20, GB
NUT, 1/4 prev. torque
4шт.
133781
SCREW,Sl Flat Hd, 1/4" - 20 x 1 1/4"
1/4 x1-1/4 znd slt-f-hd mach
4шт.
24
177556C1
STRIP
feeder upper seal backing
2шт.
25
177555C1
SPACER
feeder upper seal
4шт.
26
160256C1
FLANGE, straw walker front bearing
1шт.
27
158380C1
RETAINER
FLANGE, straw walker rear bearing
1шт.
