(12-25) - POWER, AIR HORN, COMBINE WITH GASOLINE ENGINE, S/N 19000 AND BELOW

Запчасти Case IH 915 (12-25) - POWER, AIR HORN, COMBINE WITH GASOLINE ENGINE, S/N 19000 AND BELOW Power

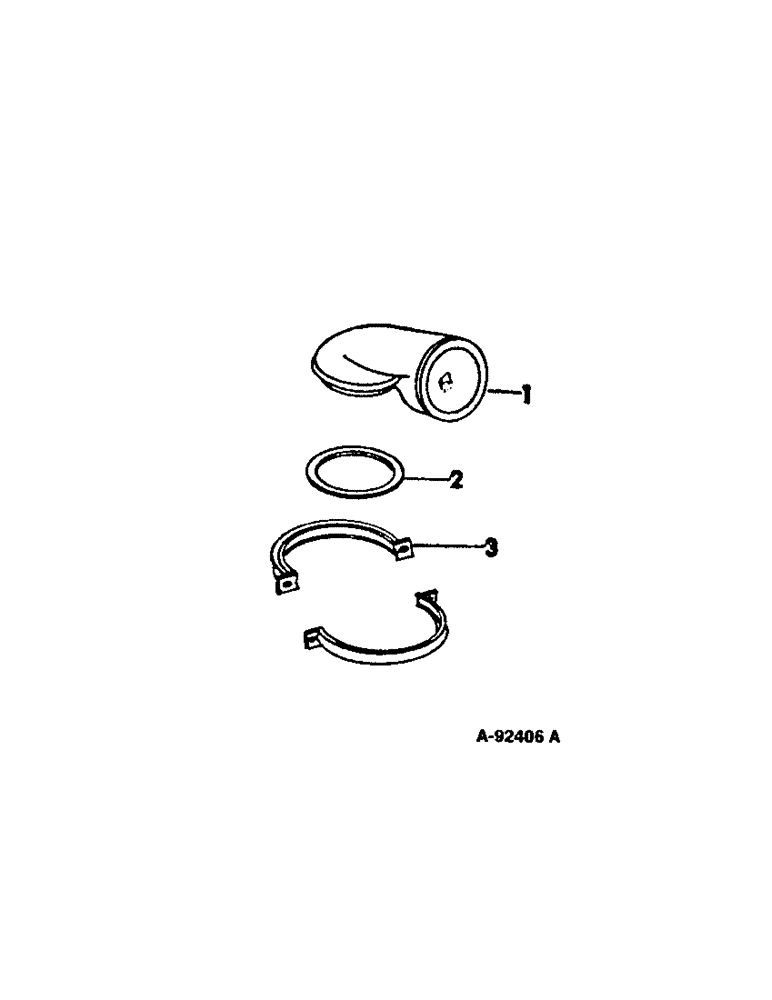

Схема запчастей Case IH 915 - (12-25) - POWER, AIR HORN, COMBINE WITH GASOLINE ENGINE, S/N 19000 AND BELOW Power
2
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

537878R11

HORN ASSY, carburetor air

1шт.

444577

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG, 1/4 NPT sq-hd pipe

1шт.

2

120581H

SEAL

carburetor air horn

1шт.

3

120580HX

CLAMP

air horn mounting

2шт.

NLS

NO LONGER SERVICED

1/4-20 x 1 znd slt-fil-hd mach

2шт.
