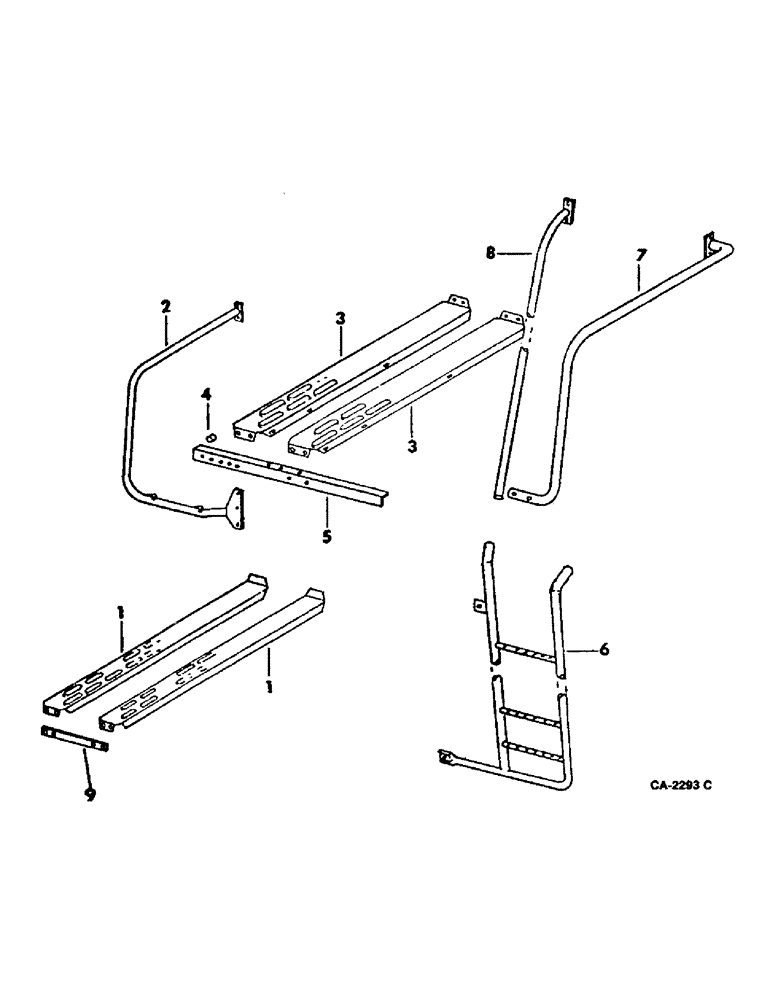

Запчасти Case IH 915 (12-24) - POWER, ENGINE SERVICE CATWALK AND SERVICE LADDER Power

1

178365C2

STEP, LH side service

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znp flange lock

4шт.

18763R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

SCREW, 5/16 x 1/2 znd hex-hd mach

4шт.

2

178372C1

RAIL ASSY, LH hand

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 sq-nk crg.

2шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/4 x 3/4 hex-hd mach

2шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 hex-hd mach

2шт.

18779R1

BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2

3/8 x 1-1/2 hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

5шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

4шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

5шт.

3

178367C1

STEP, engine service RH

2шт.

18482R1

BOLT,Short NK, 5/16"-18 x 2", G2

5/16 x 2 sq-nk crg

3шт.

18477R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3 1/2", Gr 2

BOLT, 5/16 x 3-1/2 sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

4шт.

18763R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

SCREW, 5/16 x 1/2 hex-hd mach

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

4

865279R1

GASKET

SPACER, engine service RH step

4шт.

5

178368C2

ANGLE, shield front

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

6

180176C2

LADDER ASSY, service

1шт.

18767R1

BOLT,Hex, 5/16"-18 x 2", G2

5/16 x 2 type 1

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

7

179010C1

RAIL ASSY, hand RH

1шт.

16888R1

HARDWARE,Short NK, 5/16"-18 x 1 1/4", G2

BOLT, 5/16 x 1-1/4 crg type 1

2шт.

18766R1

BOLT,Hex, 5/16"-18 x 1 3/4", G2

5/16 x 1-3/4 hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

8

180175C1

PIPE ASSY, service ladder upper LH rail

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

9

196311C1

BAR, service deck tie

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

4шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

1шт.
