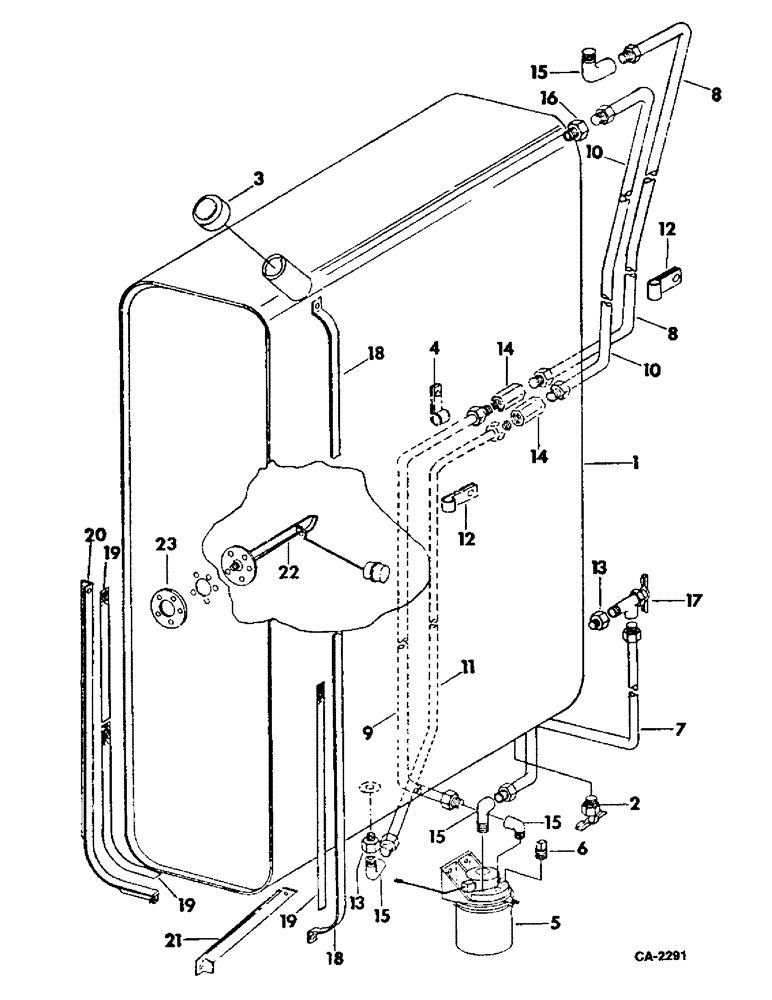

Запчасти Case IH 915 (12-21) - POWER, FUEL TANK AND PUMP, DIESEL ENGINE Power

1

177806C91

TANK ASSY, fuel 73 gallons, serial no 13575 and below

1шт.

1

196223C91

TANK ASSY, fuel 73 gallon, serial no 13576 and above

1шт.

2

118536

VALVE

ASSY, drain

1шт.

3

538063R1

PLUG

CAP, fuel tank vented

1шт.

4

633125R2

CLAMP

CLIP, fuel line at separator top

1шт.

5

PUMP ASSY, fuel, refer to this group under fuel pump

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

6

444577

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG, 1/4 sq-hd pipe slt

1шт.

7

TUBE ASSY, fuel tank to fuel pump, use 35 in. of 3/8 OD copper tubing from 50 ft roll marked 995063R1 and two 142433 nuts

1шт.

8

TUBE ASSY, fuel line upper, fod D-414 engine, use 64 in. of 3/8 OD copper tubing from 50 ft roll marked 995063R1 and two 142433 nuts

1шт.

8

TUBE ASSY, fuel line upper, for DT-414 diesel engine, use 73 in. of 3/8 OD copper tubing from 50-ft roll marked 995063R1 and two 142433 nuts

1шт.

9

TUBE ASSY, fuel line lower, use 77.5 in of 3/8 OD copper tubing from 50 ft roll marked 995063R1 and two 142433 nuts

1шт.

10

TUBE ASSY, fuel line upper return, for D-414 diesel engine, use 62 in. of 3/8 OD copper tubing from 50 ft roll marked 995063R1 and two 142433 nuts

1шт.

10

TUBE ASSY, fuel line return, for DT-414 diesel engine, use 71 in. OF 3/8 OD copper tubing from 50-ft roll marked 995063R1 and two 142443 nuts

1шт.

11

TUBE ASSY, fuel lower return, use 63 in. of 3/8 OD copper tubing from 50 ft roll marked 995063C1 and two 142443 nuts

1шт.

12

589980R2

CLIP

fuel line

8шт.

13

217-42

REDUCER,3/8" - 18 NPT x 1/4" - 18 NPT

BUSHING, 3/8 to 1/4 reducing pipe brass

1шт.

14

442338

UNION

3/8 OD tube inverted flare

2шт.

15

193004

ELBOW

90 deg 3/8 OD tube inverted

1шт.

16

442323

CONNECTOR, ELEC

CONNECTOR, str 1/4 pipe to 3/8 OD tube, for return line as engine

1шт.

17

161707C1

VALVE,5/8" - 18 x 1/4" NPTF

VALVE ASSY, fuel shut-off

1шт.

18

177807C1

STRAP, fuel tank front support

2шт.

623167R1

BOLT, 3/8 x 1-3/4 hex-hd mach

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

19

LINING, fuel tank support, use 14 in. 1-1/4 in. width 3 ply cotton webbing from 50 ft roll marked 990539R1

1шт.

20

177809C1

SUPPORT, fuel tank

2шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 hex-hd mach

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

21

177810C1

ANGLE, fuel tank brace

2шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

22

178893C1

GAUGE

SENDING UNIT ASSY, fuel gauge

1шт.

196312C1

SCREW

no. 10-24 x 1/2 pan washer hd mach

4шт.

432732

SCREW, no. 10 x 1/2 SLTD pan hd

1шт.

796002R1

COPPER WASHER

WASHER, .197 x .334 x .036 copper

1шт.

23

168515C1

GASKET,3.05mm Thk

fuel gauge sending unit

1шт.
