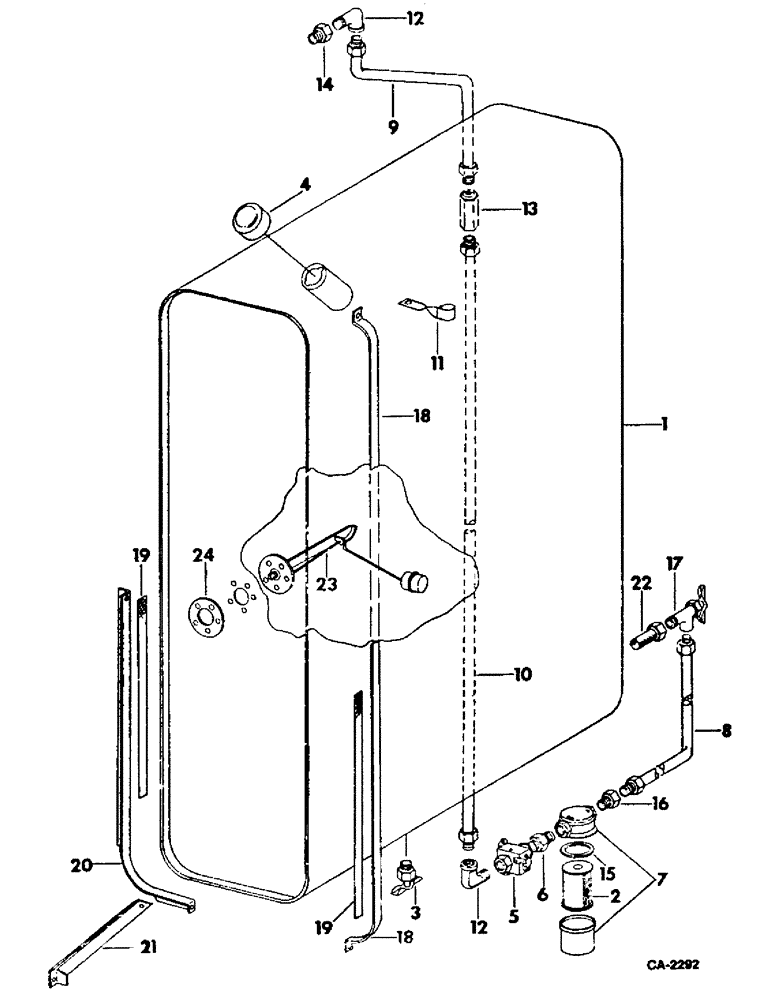

Запчасти Case IH 915 (12-19) - POWER, FUEL TANK AND PUMP, GASOLINE ENGINE, S/N 19000 AND BELOW Power

1

177806C91

TANK ASSY, fuel tank 73 gallon, serial no 1375 and below

1шт.

1

196223C91

TANK ASSY, fuel tank 73 gallon, serial no, Serial Range: 13576-19000

1шт.

2

405501C1

ELEMENT

fuel filter

1шт.

3

118536

VALVE

ASSY, drain

1шт.

4

23995DC

FILLER CAP

CAP, fuel tank vented

1шт.

5

178892C1

PUMP

ASSY, fuel

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

6

443976

NIPPLE, LUBE,1/8"-27 NPTF, Brass

NIPPLE, 1/8-27 automotive pipe plain brass

1шт.

7

179224C91

FILTER ASSY, fuel

1шт.

8

TUBE ASSY, fuel tank to filter, use 135 in 5/16 OD copper tubing from 50-ft roll marked 995062R1 and two 142427 nuts

1шт.

9

TUBE ASSY, fuel line upper, use 35 in 5/16 OD copper tubing from 50-ft roll marked 995062R1 and two 142427 nuts

1шт.

10

TUBE ASSY, fuel line lower, use 57 in 5/16 OD copper tubing from 50-ft roll marked 995062r1 and two 142427 nuts

1шт.

11

363660R1

CLIP

fuel line

1шт.

12

444163

ELBOW

90 deg pipe street brass

1шт.

13

442338

UNION

3/8 OD tube inverted flare

1шт.

14

442322

ROD, CONNECTING

CONNECTOR, 5/16 OD tube plain brass

1шт.

15

405500C1

GASKET

fuel filter

1шт.

16

442322

ROD, CONNECTING

CONNECTOR, 5/16 OD tube inverted flare

1шт.

17

152572C91

VALVE

ASSY, fuel shut-off

1шт.

18

177807C1

STRAP, fuel tank front support

2шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 hex-hd mach

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

19

LINING, fuel tank support, use 14 in of 1-1/4 in width 3 ply cotton webbing from 50-ft roll marked 990539R1

2шт.

20

177809C1

SUPPORT, fuel tank

2шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 hex-hd mach

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

21

177810R1

ANGLE, fuel tank brace

2шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

22

661129R91

STRAINER ASSY, fuel

1шт.

23

178893C1

GAUGE

SENDING UNIT ASSY, fuel gauge

1шт.

168527C1

SCREW,Sl Pan Hd, #10 - 24 x 1/2", W/ Rbr Wshr, 90 Duro

10-24 x 1/2 pan washer-hd mach

4шт.

436782

SCREW, no 10 x 1/2 slt-pan-hd

1шт.

796002R1

COPPER WASHER

WASHER, .197 x .334 x .036 copper

1шт.

24

168515C1

GASKET,3.05mm Thk

fuel gauge sending unit

1шт.
