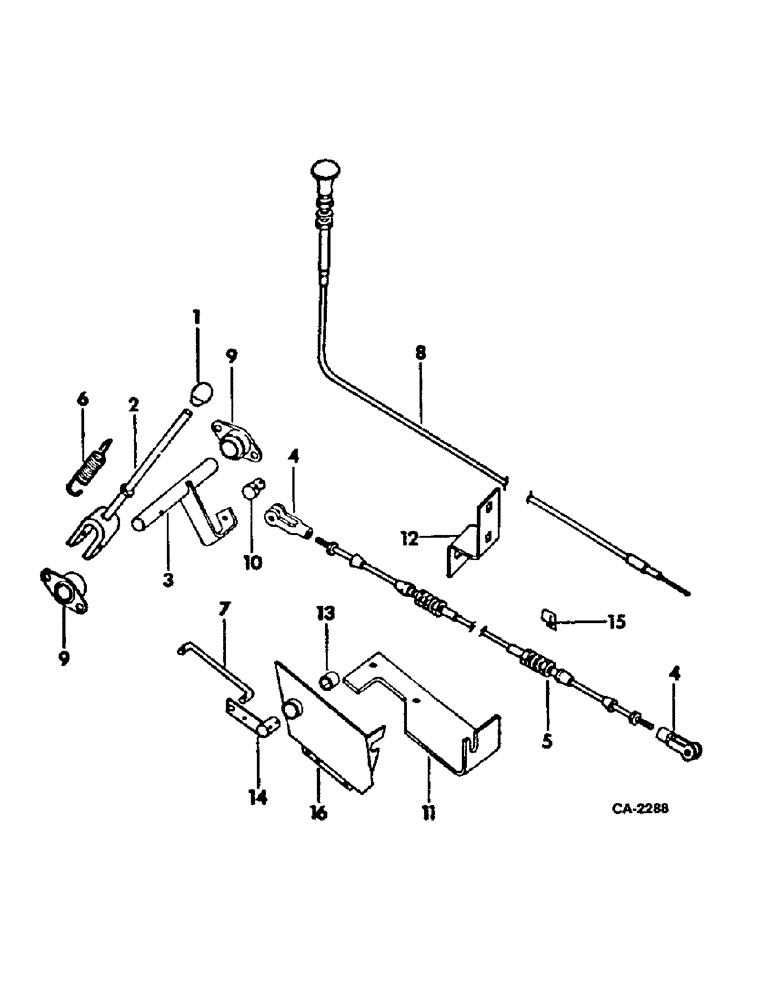

Запчасти Case IH 915 (12-17) - POWER, THROTTLE CONTROL Power
№
Артикул
Название
Примечание
Количество
1
167012C1
KNOB, throttle control lever
1шт.
2
164846C91
ROD
ASSY, throttle control
1шт.
17175R1
LOCK PIN,3/16" x 1", Slotted
PIN, 3/16" x 1", Slotted
1шт.
3
166879C91
SHAFT ASSY, throttle control, diesel engine
1шт.
4
NLS
NO LONGER SERVICED
CLEVIS, no. 10 x 1-9/16 lght adj rod end-throttle control cable
1шт.
112726
COTTER PIN,1/16" x 1/2"
PIN, SPLIT (COTTER), 1/16" x 1/2"
1шт.
138082
CLEVIS PIN,3/16" x .580"
PIN, 3/16 x 19/32 znd rod end
1шт.
5
164398C91
CABLE
ASSY, throttle
1шт.
120614
NUT,Hex, #10 - 32
NUT, #10-32
1шт.
6
860060R1
SPRING
throttle control rod, gasoline engine
1шт.
6
52872R1
SPRING
throttle control rod, diesel engine
1шт.
455516
COTTER PIN,3/16" x 3/4"
3/16" x 3/4"
2шт.
7
174948C1
ROD, throttle, diesel engine
1шт.
112726
COTTER PIN,1/16" x 1/2"
PIN, SPLIT (COTTER), 1/16" x 1/2"
2шт.
8
174893C1
CABLE
ASSY, choke, gasoline engine
1шт.
9
164864C91
FLANGE,15.89mm ID
BEARING ASSY, throttle control shaft
2шт.
16897R1
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
BOLT, 5/16 x 3/4 znd sq-nk crg
4шт.
120376
NUT,5/16"-18, G5
4шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
4шт.
10
165291C1
PIVOT, throttle, gasoline engine
1шт.
648002
KNIFE
1/8" x 3/4"
1шт.
22256R1
WASHER
9/32 x 1/2 x 16 ga
1шт.
11
165210C1
BRACKET, throttle cable rear, gasoline engine
1шт.
12
166880C1
BRACKET, throttle cable front, gasoline engine
1шт.
16897R1
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
BOLT, 5/16 x 3/4 znd sq-nk crg
2шт.
120376
NUT,5/16"-18, G5
2шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
2шт.
14
174945C1
LINK ASSY, throttle, diesel engine
1шт.
178375R1
WASHER
25/32 x 1-1/4 x 16 ga C-Z
2шт.
15
140577
CLAMP, choke cable, gasoline engine
1шт.
16
174942C1
BRACKET ASSY, throttle, diesel engine
1шт.
180122
BOLT,Hex, 3/8" - 16 x 1", Gr 5
3/8 x 1 znd hex-hd cap
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
2шт.
Выбрано товаров: 35
