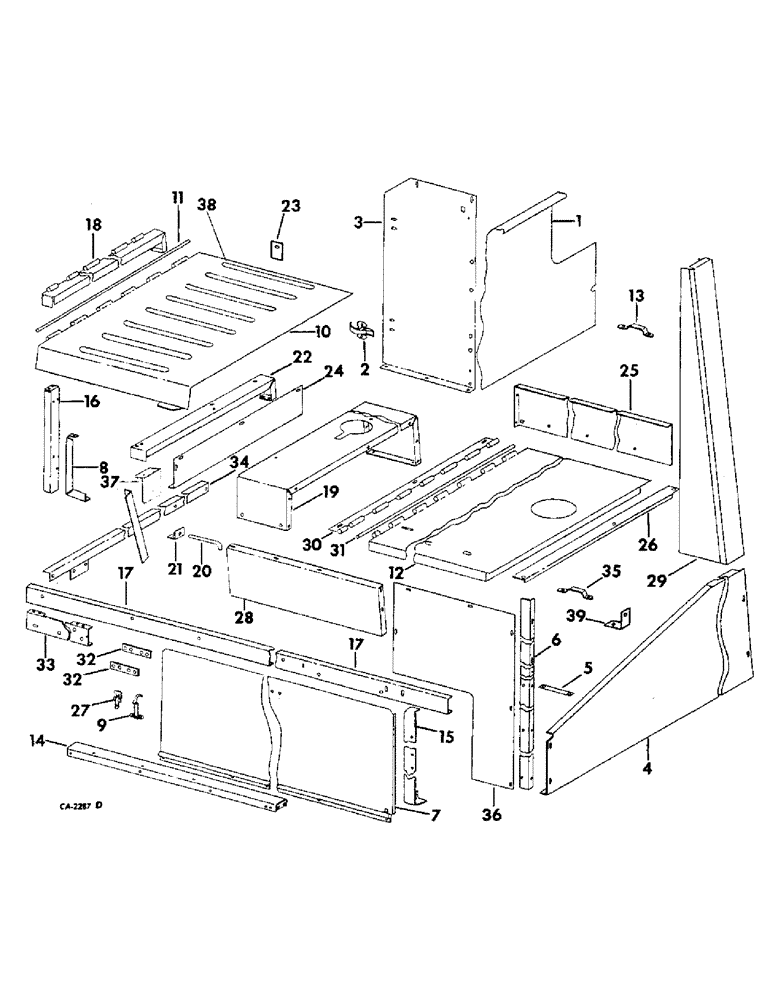

Запчасти Case IH 915 (12-15) - POWER, ENGINE COVER, DIESEL EINGINE Power

1

178676C1

COVER ASSY, engine LH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

2шт.

2

168481C1

LATCH ASSY.

LATCH, engine LH cover

2шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

4шт.

436750

SCREW,Slotted Pan Hd, #10-32 x 1/2"

no 10 x 1/2 slt-pan-hd

4шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

607893R1

WASHER

.203 x .50 x 16 ga

4шт.

3

178304C1

SUPPORT, engine cover LH rear bottom

1шт.

4

178337C1

SHEET, engine hood lower LH trim

1шт.

938017

NUT, 5/16 flange

9шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

9шт.

5

178209C1

STRIP, engine hood lower RH trim sheet

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss hd

2шт.

6

178330C2

ANGLE, engine hood lower RH trim

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

3шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt truss hd

3шт.

7

178346C1

DOOR ASSY, engine hood rear cover

1шт.

8

178310C1

ANGLE, engine hood support LH

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

9

353443R91

LATCH ASSY.

LATCH ASSY, engine hood

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

4шт.

436750

SCREW,Slotted Pan Hd, #10-32 x 1/2"

no 10-32 x 1/2 pan hd

4шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

10

180653C91

HOOD ASSY, engine LH

1шт.

11

568476R1

ROD

engine LH hood hinge

1шт.

12

174349C1

HOOD ASSY, engine RH

1шт.

13

160638C1

HANDLE

engine RH hood

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

2шт.

632227

SCREW, 5/16 x 3/4 slt-truss-hd

2шт.

14

178340C1

CHANNEL, engine hood support lower

1шт.

15

178321C1

ANGLE, engine hood support RH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

5шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

5шт.

16

172691C1

CHANNEL, engine hood

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

5шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

5шт.

17

178341C1

CHANNEL, engine hood rear upper

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

4шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

4шт.

18

174322C1

CHANNEL ASSY, engine hood LH center

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/8 flange lock

4шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

4шт.

19

174324C1

CHANNEL, engine hood RH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

5шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

5шт.

20

174482C1

ROD, engine hood RH hold up

1шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

21

154971C1

ANGLE

engine hood RH hold-up rod

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

22

171326C2

CHANNEL, engine hood

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

4шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

4шт.

23

159752C1

SUPPORT

BAR, engine left hood stop

1шт.

24

174331C1

SHEET, engine hood filler

1шт.

25

174342C1

FILLER, engine hood RH front

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

6шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

6шт.

26

178343C1

CHANNEL, engine hood RH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt truss HD

2шт.

27

167800C1

CLIP

CLIP, engine hood RH hood down

4шт.

225-14112

NUT,#12-24

no. 10-24 hex.

4шт.

436767

SCREW, no. 10-24 x 1/2 pan-hd slt-mach

4шт.

121744

ANGLE

Washer, Lock, #12

4шт.

28

178344C1

FILLER, engine hood rear up

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

7шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt truss hd

7шт.

29

178345C1

COVER, engine RH rear

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

9шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt truss hd

9шт.

30

174298C1

HINGE, engine hood RH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

3шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt truss hd

3шт.

31

588209R1

ROD, engine hood RH hinge

1шт.

32

174315C1

STRAP, engine hood support lower channel tie

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

8шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

8шт.

33

174314C1

CHANNEL, engine support lower

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

3шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

3шт.

34

178774C1

ANGLE ASSY, engine cover LH

1шт.

35

188674R1

HANDLE, engine hood channel

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

2шт.

36

178349C1

COVER, air cleaner

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

5шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt truss hd

5шт.

37

179085C1

ANGLE, engine cover

1шт.

38

167409C1

TAPE, engine LH hood non-skid

8шт.

39

180177C1

ANGLE

1шт.
