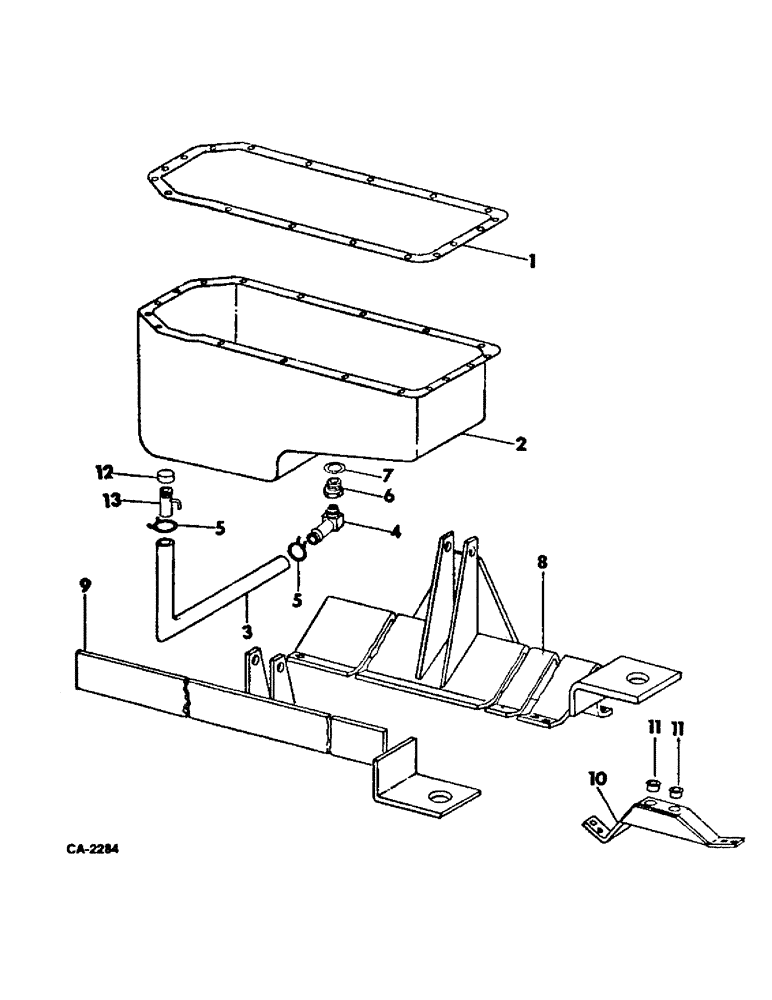

Запчасти Case IH 915 (12-09) - POWER, CRANKCASE OIL PAN, GASKET, OIL DRAIN, GASOLINE ENGINE & ENGINE MOUNTINGS, S/N 19000 AND BELOW Power
№
Артикул
Название
Примечание
Количество
1
GASKET, oil pan, refer to ENG-3 parts catalog section C for unit listing
1шт.
2
PAN ASSY, oil, refer to ENG-3 parts catalog section C for unit listing
1шт.
3
165202C1
HOSE,0.63" ID x 50.00"
Oil Drain 0.63" ID x 50.00"
1шт.
4
864456R1
NIPPLE, LUBE
NIPPLE, oil drain hose, 3/8 x 90 deg
1шт.
5
112700R1
HOSE CLAMP,#15, 15/16", Spring
CLAMP, oil drain hose
2шт.
6
444619
PIPE CLAMP
PLUG, oil rear pan drain
1шт.
7
3405H
GASKET
oil pan drain plug
1шт.
8
177811C1
RAIL ASSY, engine support LH
1шт.
202107C1
BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"
5/16 x 3/4 znd hex-hd lock
2шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
4шт.
20033R1
LOCK NUT
NUT, 5/8 cdp hex. nylon insert
1шт.
180179
BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5
SCREW, 1/2 x 1-3/4 znd hex-hd cap
4шт.
271728
SHAFT,Hex, 5/8" - 11 x 3 1/4", Gr 5
SCREW, 5/8 x 3-1/4 znd hex-hd cap
1шт.
120384
WASHER,1/2"
LOCK, 1/2"
4шт.
9
177820C1
RAIL ASSY, engine support RH
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
3шт.
20033R1
LOCK NUT
NUT, 5/8 cdp hex. nylon insert
1шт.
180179
BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5
SCREW, 1/2 x 1-3/4 znd hex-hd
3шт.
413-1052
BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5
SCREW, 5/8 x 3-1/4 znd hex-hd cap
1шт.
120384
WASHER,1/2"
LOCK, 1/2"
3шт.
10
177830C1
SUPPORT ASSY, engine mounting frt
1шт.
190171R1
BOLT, 1/2 x 1-1/2 znd plow
1шт.
19676R1
LOCK NUT,1/2"-13, GB
NUT, 1/2 znd hex
3шт.
180177
BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5
SCREW, 1/2 x 1-1/2 C-Z hex-hd cap
1шт.
180183
BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5
SCREW, 1/2 x 2-1/4 znd hex-hd cap
2шт.
120384
WASHER,1/2"
LOCK, 1/2"
3шт.
22197R1
WASHER
.53 x 1.750 x .054 znd
2шт.
120396
WASHER
.53 x 1.06 x .10 znd
2шт.
11
400159R1
BUMPER
MOUNT, frt vibration
2шт.
12
221-1524
CAP,3/8" NPT
3/8 znp malleable iron pipe
1шт.
13
165203C91
FITTING
ASSY, oil drain
1шт.
Выбрано товаров: 31
