(12-08) - POWER, SPARK ARRESTER, FOR GASOLINE ENGINE, S/N 19000 AND BELOW

Запчасти Case IH 915 (12-08) - POWER, SPARK ARRESTER, FOR GASOLINE ENGINE, S/N 19000 AND BELOW Power

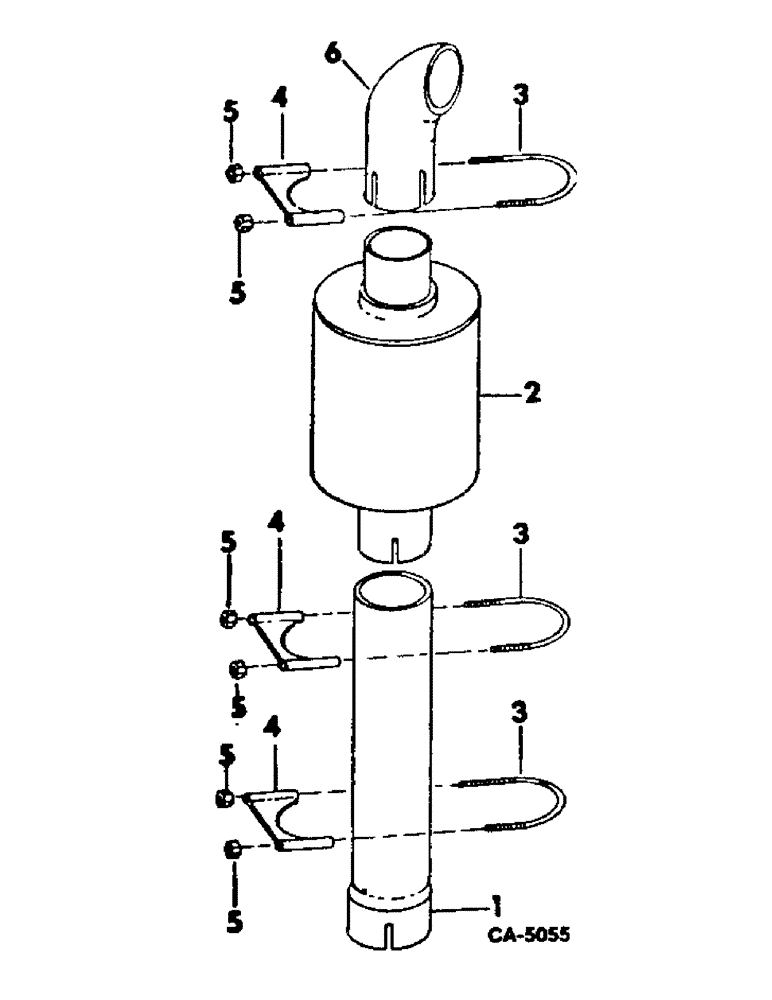

Схема запчастей Case IH 915 - (12-08) - POWER, SPARK ARRESTER, FOR GASOLINE ENGINE, S/N 19000 AND BELOW Power
3
5
4
5
4
6
1
5
2
5
3
5
5
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

60502C91

SPARK ARRESTER, includes ref nos 1 thru 6

1шт.

1

60503C1

PIPE, spark arrester

2шт.

2

404508R1

ARRESTER

spark

2шт.

3

U-BOLT, exhaust clamp, order package 68219C91

6шт.

4

SADDLE, exhaust clamp, order package 68219C91

6шт.

5

535993R1

NUT

muffler clamp

12шт.

6

527269R1

PIPE

exhaust deflector

2шт.

68219C91

KIT

PACKAGE, muffler, clamp, consists of one u-bolt and one saddle

1шт.
