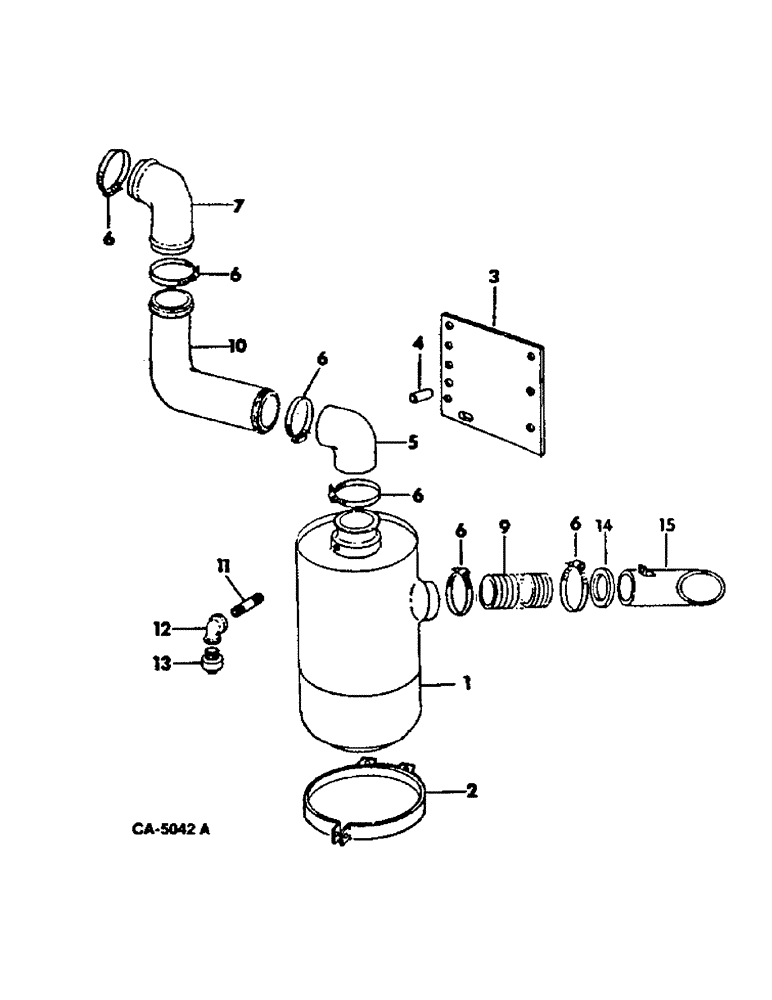

Запчасти Case IH 915 (12-03) - POWER, AIR CLEANER AND CONNECTIONS, COMBINE WITH DIESEL ENGINE Power

1

530751R92

CLEANER ASSY.

CLEANER ASSY, dry type, Donaldson, optional w/528505R93

1шт.

1

528505R93

FILTER CARTRIDGE

CLEANER ASSY, dry type, air maze, optional w/530751R92

1шт.

2

259922C91

BAND

ASSY, air cleaner mounting

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

4шт.

446363

WASHER,5/16"

3/8 znd flat

4шт.

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

3

59645C1

BRACKET, air cleaner mounting

1шт.

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

SCREW, 5/16 x 2 C-Z hex-hd cap

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

120376

NUT,5/16"-18, G5

3шт.

4

364002R1

SPACER,3/8" Pipe x 1"

3/8 x 1 std. pipe

3шт.

5

218899R1

ELBOW

air cleaner outlet

1шт.

6

397270R1

HOSE CLAMP,#72, 4.06/5.00 Type F Worm, W/liner

CLAMP, air cleaner hose

5шт.

7

548222R1

INTAKE AIR HOSE,3.00" ID, 4.00" ID x 4.25"

ELBOW, inlet

1шт.

11

120549

NIPPLE, 1/8 x 2-1/2 long pipe Nipple, 1/8" NPT x 2 1/2"

1шт.

12

86534426

PIPE FITTING

1/8 90 street

1шт.

13

366078C1

INDICATOR

air restriction

1шт.

14

177869C1

SEAL,4.5" ID x 5.5" OD x 0.5"

SEAL, air cleaner inlet

1шт.

23566R1

BOLT,Hex, 1/2" - 13 x 3 3/4", Gr 8

1/2 x 3-3/4 hex-hd type 8

7шт.

211216R1

BOLT,Hex, 1/2" - 13 x 4", Gr 8

1/2 x 4 type 8

1шт.

366864C1

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

15

177867C11

TUBE ASSY, air cleaner inlet

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

2шт.
