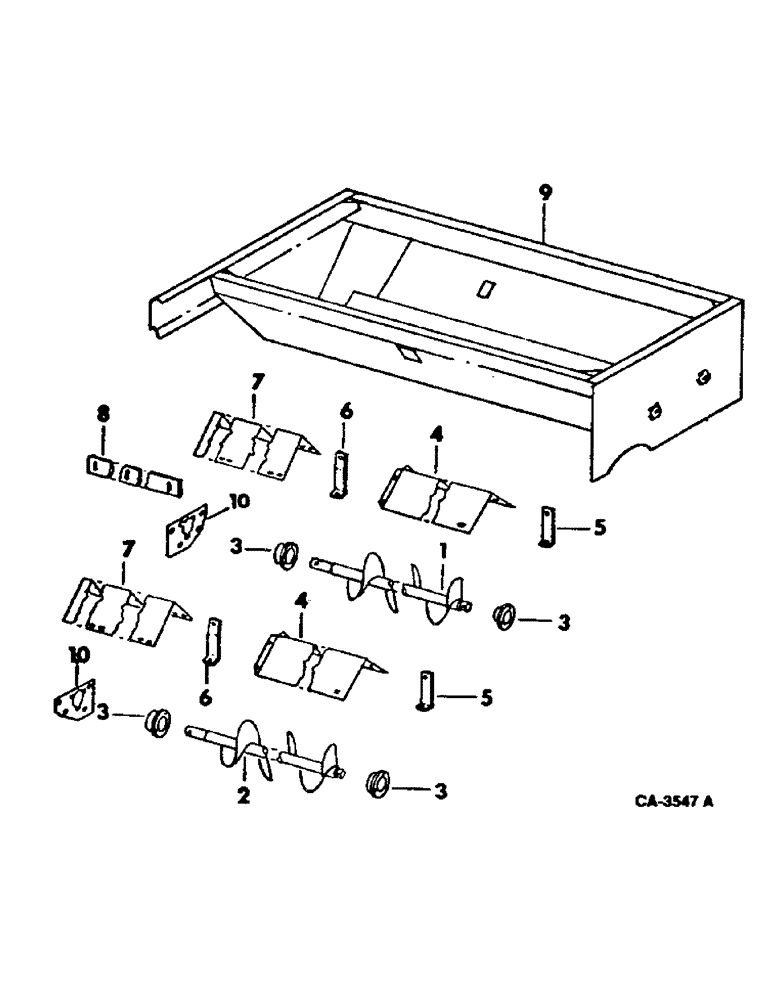

Запчасти Case IH 915 (26-04) - GRAIN TANK, GRAIN TANK AUGER AND COVER Grain Tank

1

196317C1

AUGER

ASSY, grain tank bottom front (Replaces 196317C91)

1шт.

22099R1

LOCK PIN,5/16" x 1 1/2", Slotted

Pin, 5/16" x 1 1/2", Slotted

2шт.

2

178109C1

AUGER

ASSY, grain tank bottom rear

1шт.

22099R1

LOCK PIN,5/16" x 1 1/2", Slotted

Pin, 5/16" x 1 1/2", Slotted

2шт.

3

174523C91

BEARING ASSY

grain tank bottom auger

4шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 sq-nk crg

12шт.

120376

NUT,5/16"-18, G5

12шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

4

160361C1

COVER, grain tank bottom auger RH

2шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

5

160359C1

SUPPORT, grain tank bottom auger cover RH

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/J sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

6

164397C1

SUPPORT, grain tank bottom auger cover LH

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

7

178112C1

COVER, grain tank bottom auger adj LH

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

8шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

8шт.

8

180160C1

BAR, grain tank bottom auger cover, adj LH rear, rice, 38 inches

1шт.

8

180161C1

BAR, grain tank bottom auger cover adj LH front, rice, 42 inches

1шт.

8

170134C1

BAR, grain tank bottom auger cover add RH short, rice, 48.5 inches

1шт.

8

170139C1

BAR, grain tank bottom auger cover adj RH long, rice, 58 inches

3шт.

9

TANK ASSY, grain, refer to this group under grain tank for unit listing

1шт.

10

196316C2

SUPPORT

left rear brg plate

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

3шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd. (UAR)

8шт.
