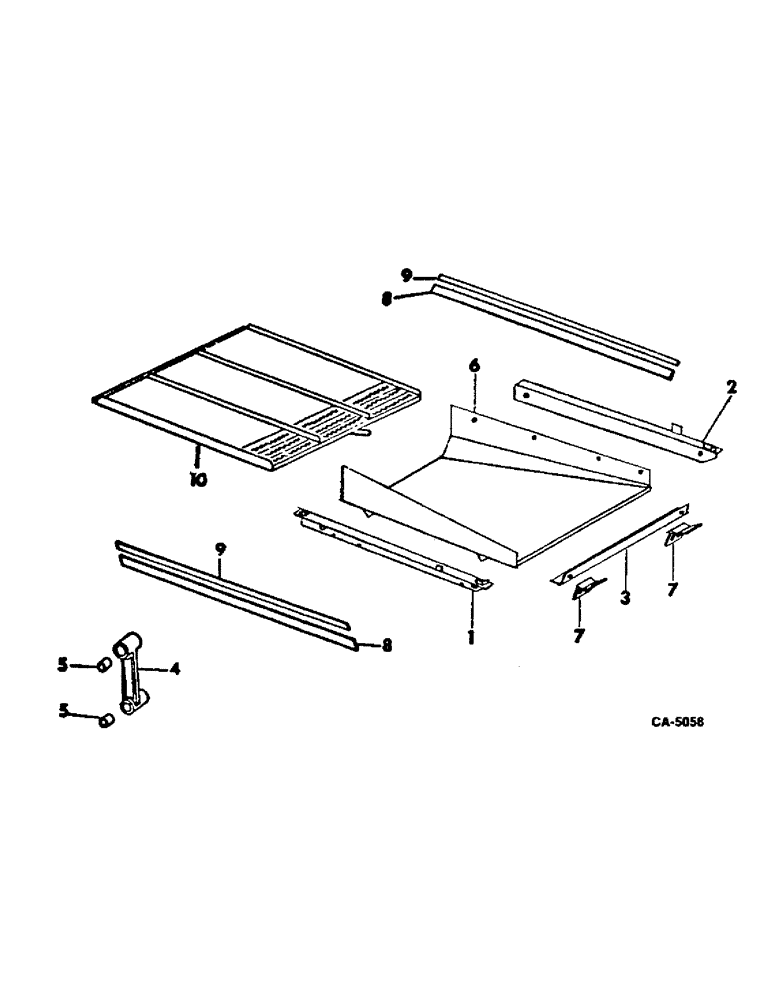

Запчасти Case IH 915 (23-5) - GRAIN PAN, SHOE AND SIEVE, SHOE AND SHOE SIEVE Grain Pan, Shoe & Shoe Sieve
№
Артикул
Название
Примечание
Количество
1
175143C1
SUPPORT
ASSY, shoe side LH
1шт.
2
175144C1
SUPPORT
ASSY, shoe side RH
1шт.
3
175149C1
ANGLE
shoe front
1шт.
16897R1
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
BOLT, 5/16 x 3/4 crg type 1
1шт.
120376
NUT,5/16"-18, G5
1шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
1шт.
4
175160C91
LEVER
ARM W/ BUSHING, shoe hanger front, includes ref no 5
1шт.
21217R1
BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 8
5/8 x 4-1/2 hex-hd type B
2шт.
19544R1
BOLT,Hex, 5/8"-11 x 3 1/4", G2
5/8 x 3-1/4 hex-hd mach
2шт.
231-14410
NUT,5/8"-11, GB
NUT, LOCK, 5/8"-11, GB
4шт.
169256R1
WASHER, shoe hanger arm bushing
10шт.
5
627555R91
BUSHING,16mm ID x 28.96mm OD x 44.45mm L
ASSY, shoe hanger arm
4шт.
6
175157C1
BOTTOM ASSY, shoe
1шт.
18473R1
SCREW,Hex, 5/16"-18 X 5/8", G2
BOLT, 5/16 x 5/8 hex-hd mach
8шт.
120736
NUT, hex 5/16
8шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
8шт.
7
172868C1
CLIP
front shoe support
2шт.
18673R1
CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2
BOLT, 5/16 x 1/25 sq-nk crg
4шт.
120376
NUT,5/16"-18, G5
4шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
4шт.
8
175181C1
SEAL
shoe sieve
2шт.
9
175182C1
BAR
shoe seal
2шт.
938016R1
FLANGE NUT,Flg, USR, 1/4"-20
1/4 flange lock
16шт.
937059R1
SCREW,Serr, M10 x 70mm, Cl 10.9
1/4 x 1/2 slt-truss-hd
16шт.
10
189075C1
SIEVE
ASSY, shoe
1шт.
Ref #10 - Subs to 189025C1. Has slats with fingers & oval shaped Holes for Corn.
1шт.
10
172884C1
SIEVE
1/10 round hole shoe, parts accessory
1шт.
10
172887C1
SIEVE, 7/32 round hole shoe, parts accessory
1шт.
10
172888C1
SIEVE
3/8 round hole shoe, parts accessory
1шт.
10
172890C1
SIEVE, 1/2 round hole shoe
1шт.
18508R1
CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd
BOLT, 3/8 x 3/4 sq-nk crg
2шт.
120377
NUT,3/8" - 16, Gr 5
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
2шт.
Выбрано товаров: 33
