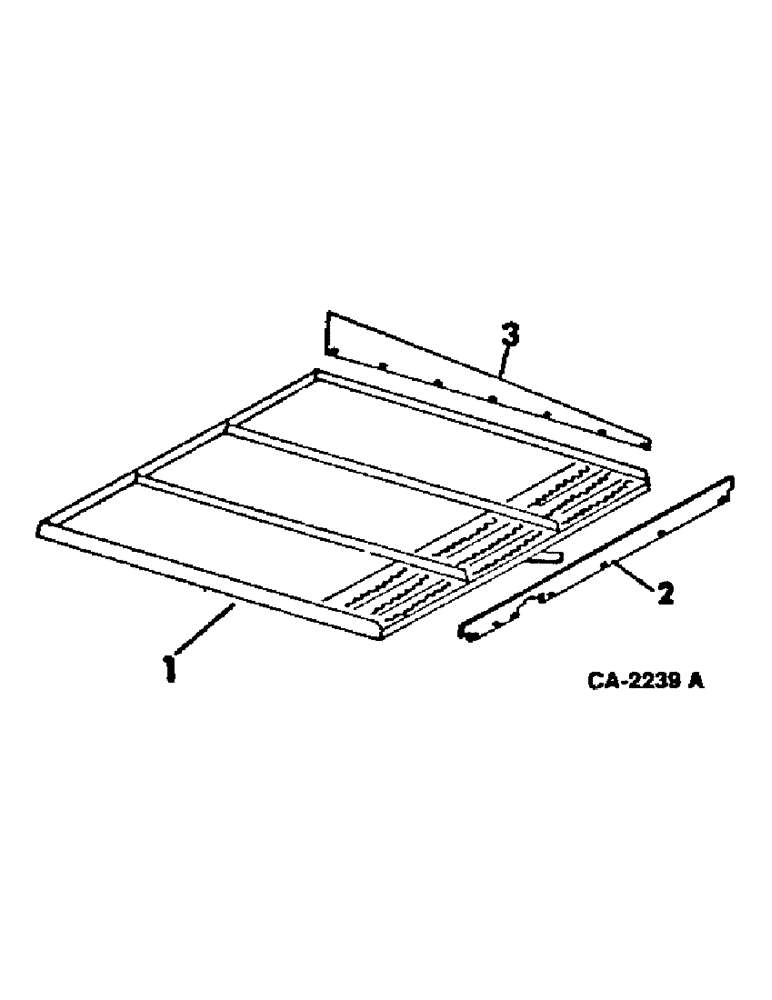

Запчасти Case IH 915 (23-3) - GRAIN PAN, SHOE AND SIEVE, CHAFFER SIEVE Grain Pan, Shoe & Shoe Sieve

1

172839C2

GRAIN SIEVE

SIEVE ASSY, chaffer, 1-1/4 adjustable, 1-1/8 adjustable, grain and rice

1шт.

1

172841C1

GRAIN SIEVE

SIEVE ASSY, chaffer, 1-5/8 adj. corn slat, 1-5/8 adjustable corn slat, corn and bean

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

2

175059C1

SEAL

chaffer

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

8шт.

1619451

SCREW, 5/16 x slt-truss-hd

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x .69 16 ga

8шт.

18475R1

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 2

5/16 x 1-1/4 hex-hd mach

6шт.

3

175190C1

DIVIDER

chaffer sieve, corn

3шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

21шт.

453049

SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"

1/4 x 3/4 znp p/hds mach

21шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

21шт.
