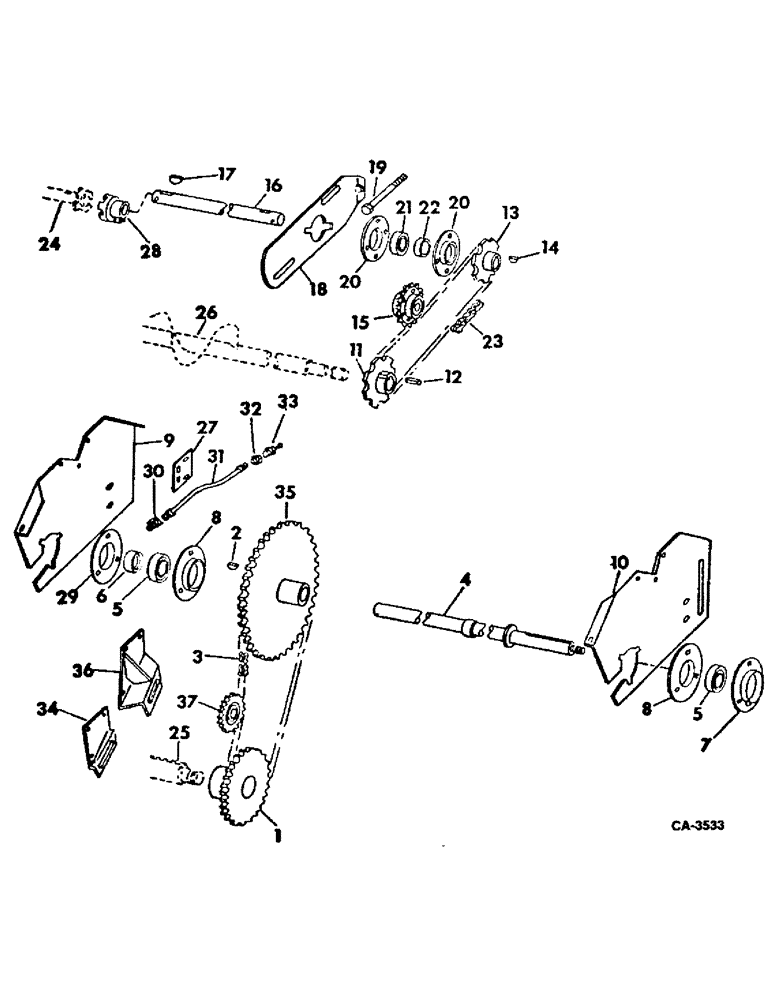

Запчасти Case IH 915 (25-10) - ELEVATORS, GRAIN ELEVATOR DRIVE Elevators

1

160237C91

SPROCKET ASSY.

SPROCKET ASSY, elevator jackshaft drive, 25-T

1шт.

2

88907

WOODRUFF KEY,#B, 5/16" x 1", HT

5/16 x 1 Woodruff, hard, mechanical cylinder drive

1шт.

3

CHAIN ASSY, jackshaft drive, use 73 links from 10-ft roll marked 1793 D, one connecting link 1786 D and offset connecting link 1318 D

1шт.

4

172460C11

SHAFT

ASSY, elevator drive jack

1шт.

22244R1

LOCK NUT

3/4-10 C-Z hex nylon insert lock

1шт.

467750R1

WASHER

25/32 x 1-1/2 x 11 ga C-Z

1шт.

21735R1

WASHER, 25/32 x 1-1/2 x 16 ga

2шт.

557274R1

WASHER

1-5/32 x 2 x 16 ga

1шт.

20885R1

WASHER

1-5/32 x 2 x 16 ga

7шт.

21716R1

WASHER

1-5/32 x 1-3/4 x 16 ga

2шт.

21714R1

WASHER

1-5/32 x 2 x 11 ga

2шт.

557274R1

WASHER

1-5/32 x 2 x 16 ga

2шт.

476258R1

WASHER, 1-2/32 x 1-3/4 x 11 ga

2шт.

5

670373R91

BALL BEARING,1.1255" ID x 62 mm OD x 1.4375"

elevator jackshaft

2шт.

6

557115R11

COLLAR

COLLAR W/SET SCREW, jackshaft LH brg lkg

1шт.

7

939460R91

FLANGE

w/65 DEG LUB FITTING, outer brg

1шт.

9

939461R1

FLANGE

jackshaft brg grooved

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 crg type 1

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

9

169212C1

SUPPORT

elevator jackshaft brg inner

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd mach

3шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

5шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

5шт.

10

169289C1

SUPPORT, elevator jackshaft brg outer

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

2шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd mach

3шт.

120376

NUT,5/16"-18, G5

2шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

11

168687C1

DRIVE SPROCKET

SPROCKET ASSY, grain elevator drive 19-T, rice

1шт.

11

162463C91

SPROCKET ASSY.

SPROCKET ASSY, grain elevator drive 27-T, bean

1шт.

11

167449C1

SPROCKET ASSY.

SPROCKET ASSY, grain elevator drive 16-T, grain and corn

1шт.

12

Q53

KEY,1/4" Sq x 1", Par

1шт.

13

167449C1

SPROCKET ASSY.

SPROCKET ASSY, grain elevator driven, 16-T, rice

1шт.

13

162463C91

SPROCKET ASSY.

SPROCKET ASSY, grain elevator driven, 27-T, bean

1шт.

13

168687C1

DRIVE SPROCKET

SPROCKET ASSY, grain elevator driven, 19-T, grain and corn

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

21789R1

WASHER

1-1/32 x 14-1/4 x 16 ga

6шт.

14

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

15

594706R91

SPROCKET ASSY.,15T

SPROCKET ASSY, grain elevator drive chain tightener 15-T

1шт.

18720R1

SCREW,Short NK, 5/8"-11 x 2", G2

BOLT, 5/8 x 2 sq-nk crg

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 hex

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

22585R1

WASHER, 21/32 sq x 1-1/4 x 12 ga

1шт.

589661R1

WASHER, 21/32 x 1-1/4 x 11 ga

1шт.

16

160692C1

SHAFT

grain elevator drive extension

1шт.

17

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

18

160428C11

SUPPORT

W/NUT GRAIN ELEVATOR DRIVE EXTENSION SHAFT, not raised leveling auger

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

19

611421R1

BOLT,Hex, 7/16" - 14 x 3 1/2", Full Thd

grain elevator drive adjusting, not raised leveling auger

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16 hex.

1шт.

20

612031R1

FLANGED BEARING

grain elevator drive extension shaft brg

2шт.

120376

NUT,5/16"-18, G5

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

21

160796C91

BALL BEARING,25.4mm ID x 51.99mm OD x 16.56mm W

BEARING, grain elevator drive extension shaft

1шт.

22

564853R11

COLLAR

W/SET SCREW, grain elevator drive extension shaft brg lkg

1шт.

23

CHAIN ASSY, grain elevator drive, grain, use 99 links from 10-ft roll marked 1791 D, two connecting link 1310 D and one offset connecting link 1315 D and one roller link 1309 D

1шт.

23

CHAIN ASSY, grain elevator drive, grain and corn, use 45 links from 10-ft roll marked 1791 D and one connecting link 1310 D

1шт.

24

HEADSHAFT, grain elevator, refer to this group under grain elevator for unit listing

1шт.

25

SHAFT, cylinder beater, refer to group 21 under cylinder beater for unit listing

1шт.

26

AUGER, grain tank leveling, refer to group 26 under grain tank leveling auger for unit listing

1шт.

27

169213C1

PLATE, tightener pivot inner bearing, variable cylinder drive chain

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

20893R1

WASHER

11/32 x 1 x 11 ga

2шт.

28

939108R1

COUPLING

grain elevator drive extension shaft female

1шт.

236485R1

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 8

1/2 x 2-1/4 znd hex-hd mach type 8

1шт.

21330R1

NUT,1/2"-13, G8

1/2 C-Z hex. type 8

1шт.

366864C1

LOCK WASHER,1/2"

1/2"

1шт.

29

164948C91

FLANGE

W/STRAIGHT LUB ADAPTER INNER BRG

1шт.

30

21340R1

ADAPTER,90 Degree, 1/4"-1/8 NPTF

90 deg elbow lub hose

1шт.

31

937775R91

HOSE,3.56mm ID x 330.2mm L

Inner Brg Lub 0.14" ID x 13.00"

1шт.

32

581873R1

TUBE NUT,4.8 mm Length

inner brg lub hose clamp

1шт.

33

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING, 1/4-28NF 45 deg angle lub

1шт.

34

172463C2

BRACKET

elevator jackshaft drive chain tightener, variable cylinder drive

1шт.

35

172465C1

SPROCKET ASSY.

SPROCKET ASSY, elevator jackshaft driven 47-T

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

84983

SET SCREW,3/8" x 1"

SCREW, 3/8 x 1 znp sq-hd set

1шт.

36

172461C1

BRACKET

ASSY, elevator jackshaft drive chain tigntener, mechanical cylinder drive

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 hex-hd mach

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

37

154113C91

DRIVE SPROCKET

SPROCKET ASSY, elevator jackshaft drive chain tightener, 13-T

1шт.

18721R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/4", Gr 2

BOLT, 5/8 x 2-1/4 C-Z sq-nk crg

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 C-Z hex.

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

3шт.

22858R1

SQ HOLE WASHER,41/64" x 1 1/4" x .105", Sq Hole

21/32 x 1-1/4 x 12 ga C-Z sq hole

1шт.
