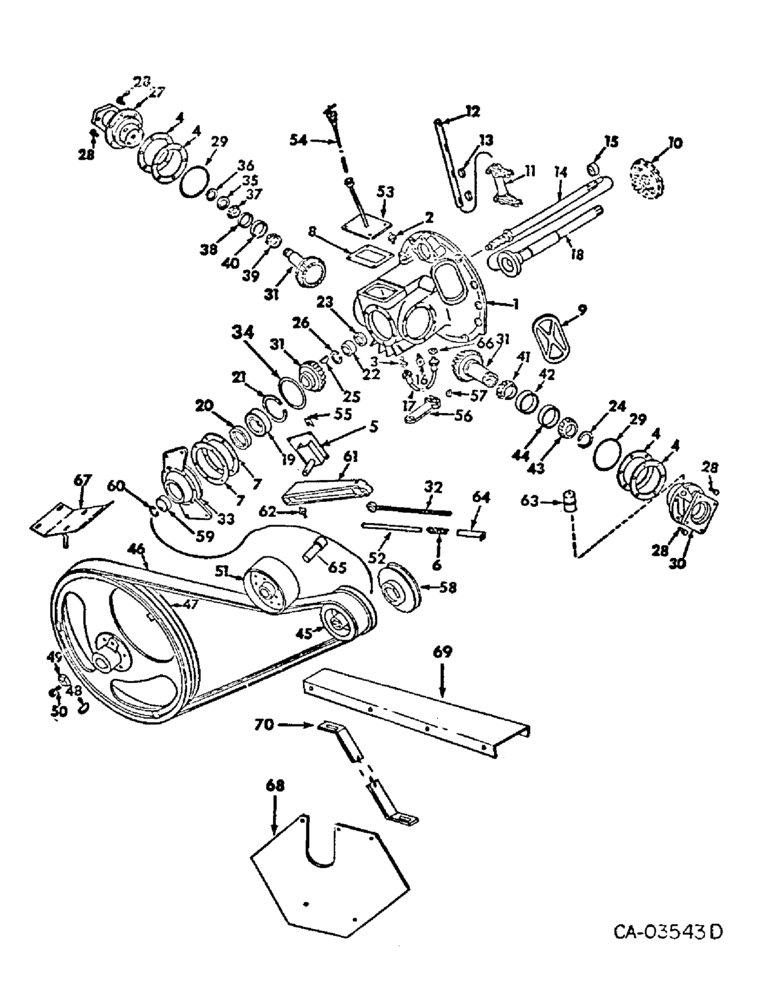

Запчасти Case IH 915 (07-12) - DRIVE TRAIN, SEPARATOR DRIVE Drive Train

1

160370C1

HOUSING, separator drive

1шт.

173243R1

PLUG, 1/2 auto hex-soc-hd pipe

1шт.

20960R1

PLUG,Sq Hd, 1/4"-14 NPTF

3/4 auto sq-hd pipe

1шт.

2

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 45 deg lub

1шт.

3

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 PTF straight lub

1шт.

4

166066C91

SHIM

PACKAGE, pump adapter hsg shim serv

1шт.

5

170353C1

BRACKET

ASSY, idler pivot arm

1шт.

19471R1

PIN, SPLIT (COTTER),1/4" x 1 3/4"

1шт.

22050R1

WASHER

1-9/32 x 1-3/4 x 16 ga C-Z

15шт.

6

173863C1

SPRING

separator drive belt tightener pulley draw bolt

1шт.

21793R1

WASHER

21/32 x 1-1/4 x 7 ga C-Z

1шт.

7

166065C91

PACKAGE

pump shft hsg shim service

1шт.

8

158199C1

GASKET

housing inspection cover

1шт.

9

158255C1

PLUG

separator drive housing rubber

1шт.

10

167968C94

COVER

CLUTCH ASSY, separator, refer to this group under separator clutch for unit listing

1шт.

11

266664R91

CLEVIS COUPLING

YOKE ASSY, separator clutch

1шт.

20328R1

COTTER PIN,3/16" x 1 1/2"

3/16" x 1 1/2"

2шт.

591715

WASHER, 1-1/32 x 1-1/2 x 16 ga

4шт.

12

158191C1

SHAFT

separator clutch pivot

1шт.

13

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

2шт.

14

158186C2

SHAFT

separator drive

1шт.

543386R1

LOCK NUT,7/8"-14, G5

NUT, 7/8-14 C-Z lock

1шт.

21715R1

WASHER

29/32 x 1-3/4 x 11 ga C-Z

1шт.

15

524598R91

BALL BEARING,20mm ID x 52mm OD x 15mm W

separator drive shaft pilot

1шт.

15

524598R91GV

BEARING

Value, Ball Bearing

1шт.

16

173032C1

CLIP, clutch pivot shaft lub hose anchor

1шт.

17

937778R91

HOSE

Clutch Pivot Shaft Lube, 17 inch

1шт.

581873R1

TUBE NUT,4.8 mm Length

clutch pivot shaft lub hose

1шт.

18

158185C2

SHAFT

pump drive

1шт.

19

173587C91

BEARING, ROLLER, CYL,55mm ID x 100mm OD x 21mm W

BEARING ASSY, pump drive shaft left

1шт.

20

173133C91

OIL SEAL,64.26mm ID x 92.15mm OD x 11mm Thk

pump drive shaft left oil

1шт.

21

23484R1

RING

pump drive shaft left snap

1шт.

22

158187C91

NEEDLE BEARING,47.62mm ID x 57.15mm OD x 25.27mm W

BEARING, pump drive shaft right

1шт.

23

173559C91

SEAL

pump drive shaft right oil

1шт.

24

644771R1

SNAP RING,#225, Ext

Ring, Snap, , pump drive shaft rear outer #225, Ext

1шт.

25

40093D

WOODRUFF KEY,#127, 1/4" x 2 1/8", HT

KEY, 1/4 x 2-1/8 Woodruff

1шт.

26

23483R1

SNAP RING,#200, Ext

Ring, Snap, , pump drive gear #200, Ext

1шт.

27

178808C1

HOUSING, pump adapter front

1шт.

Ref. 27 - For gaskets which are used to mount front pump adapter housing to the pump see Service Bulletin S2263 (6/21/99 Tech)

1шт.

20537R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

SCREW, 3/8 x 1-1/4 hex-hd type 4

6шт.

366862C1

LOCK WASHER,3/8"

3/8"

6шт.

28

20537R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

SCREW, 3/8 x 1-1/4 hex-hd cap type 8

12шт.

366862R1

WASHER, 3/8 rib lock

12шт.

29

25620R1

O-RING,0.139" Thk x 5.109" ID, -251, Cl 7, 75 Duro

5-1/8 x 5-3/8 x 1/8

2шт.

30

160194C11

HOSING ASSY, pump adapter rear

1шт.

ref. 30- gasket for 160194c11 rear housing assy adapter is the square gasket for the hydrostatic drive motor & pump is 166506c1. cam djo 9/8/99

1шт.

20537R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

SCREW, 3/8 x 1-1/4 hex-hd type 8

6шт.

366862C1

LOCK WASHER,3/8"

3/8"

6шт.

31

168731C91

GEAR SET OF SEPARATOR DRIVE, D-414 diesel engine

1шт.

31

165216C91

GEAR

SET OF SEPARATOR DRIVE, DT-414 diesel engine

1шт.

31

165214C91

GEAR SET OF SEPARATOR DRIVE, gasoline engine, serial no 19000 and below

1шт.

32

158215C2

BOLT,1/2" - 13 x 34.50mm

separator drive belt tightener pulley draw

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

1шт.

21670R1

HEADED PIN,3/4" x 2 1/4"

PIN, 3/4 x 3-1/4 C-Z std-hd dld

1шт.

138549

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

1шт.

460908R1

WASHER

17/32 x 1-1/2 x 11 ga C-Z

2шт.

21753R1

WASHER

25/32 x 1-1/2 x 16 ga C-Z

1шт.

33

173218C91

HOUSING ASSY.

HOUSING ASSY, pump shaft brg w/snap ring & seal, includes ref nos 19, 20 and 21

1шт.

879083R1

BOLT

SCREW, 3/8 x 1 hex-hd cap type 4

6шт.

34

25621R1

O-RING,-255, Cl 7, 5.609" ID x .139" Thk

RING, 5-5/8 x 5-7/8 x 1/8 OD pump shaft housing

1шт.

35

158206C1

WASHER

pump shaft front outer brg back up

1шт.

36

152450R1

SNAP RING,#125, Ext

Ring, Snap, , pump shaft front outer brg #125, Ext

1шт.

37

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE, pump shaft front outer brg

1шт.

38

651817R1

BEARING CUP

CUP, pump shaft front outer brg

1шт.

39

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

CONE, pump shaft front inner brg

1шт.

40

663558R1

BEARING CUP

CUP, pump shaft front inner brg

1шт.

41

158238C91

ROLLER BEARING,2.2655" ID x 3.876" OD x 0.8268"

CONE, pump shaft rear inner brg

1шт.

42

105497H

BEARING CUP,96.85mm OD x 15.77mm W

CUP, pump shaft rear inner brg

1шт.

43

158359C91

ROLLER BEARING,57.15mm ID x 21mm W

CONE, pump shaft rear outer brg

1шт.

44

105497H

BEARING CUP,96.85mm OD x 15.77mm W

CUP, pump shaft rear outer brg

1шт.

45

166600C2

PULLERY, separator drive, 8.6 in. OD, gasoline engine, serial no 19000 and below

1шт.

45

168666C2

PULLEY

separator drive, 9.8 in. OD, diesel engine

1шт.

46

166598C2

V-BELT,0.63" W x 199.87" L, 3 Ribs

Separator Drive, Gasoline Engine, Serial No 19000 and Below 0.63" W x 199.87" L, 3 Ribs

1шт.

46

168665C2

BELT,0.63" W x 202.13" L

separator drive, 202 in. OD, diesel engine

1шт.

47

166599C1

PULLEY, separator driven 31.9 in. OD

1шт.

48

218216

WOODRUFF KEY,#V, 1/2" x 2 3/4", HT

KEY, 1/2 x 2-3/4 Woodruff - hard

1шт.

49

166876C1

WEIGHT

separator driven pulley balance

1шт.

50

654859R1

SELF-TAP SCREW,1/4" - 20 x 1 1/2"

SCREW, 1/4 x 1-1/2 hex-hd self tap balance

1шт.

51

174756C1

PULLEY

separator drive belt tightener, 8 in. OD, serial no. 8670 and above

1шт.

51

158214C1

PULLEY

separator drive belt tightener, 9 in. OD, serial no 8669 and below

1шт.

52

158217C1

TUBE

separator drive belt tightener pulley draw bolt

1шт.

53

174472C1

COVER

ASSY, separator drive housing

1шт.

665447R1

BOLT,Hex, 5/16" - 18 x 3/4", Pellet

SCREW, 5/16 x 3/4 znp nyloc hex-hd cap

4шт.

54

173872C1

GAUGE

oil level

1шт.

55

589713R91

SHIM, separator drive idler pivot arm bracket

1шт.

56

164523C1

ARM

separator clutch control

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

SCREW, 3/8 x znd hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

57

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

58

173217C91

PULLEY

ASSY, unloader jackshaft drive, 9 in. OD, includes ref nos. 59 and 60

1шт.

454873

BOLT

SCREW, 5/16 x 1-3/4 hex-hd cap

6шт.

366861C1

LOCK WASHER

5/16 rib lock

6шт.

59

173809C91

BEARING ASSY,35mm ID x 80mm OD x 21mm W

separator drive shaft left

1шт.

60

659380R1

SNAP RING,#137, Ext

Ring, Snap, , separator drive shaft #137, Ext

1шт.

61

179446C1

LEVER

separator drive belt tightener pulley, used w/8 in pulley serial no 8670 and above

1шт.

61

160410C1

LEVER

separator drive belt tightener, used w/9 in pulley serial no 8669 and below

1шт.

441013R1

LOCK PIN,1/4" x 2 1/2", Slotted

PIN, 1/4 x 1-1/2 slt-spring

1шт.

62

19588C1

FITTING, 1-4-28 self tap str lub

1шт.

63

367677R91

BREATHER

ASSY, separator drive housing oil

1шт.

64

175227C1

GAUGE, separator drive belt tightener pulley draw bolt spring check

1шт.

65

559205R91

BEARING ASSY,15.92 mm ID x 30 mm OD x 82.55 mm

separator drive tightener lever

1шт.

66

581873R1

TUBE NUT,4.8 mm Length

lub hose

1шт.

67

196270C1

GUIDE ASSY, separator drive belt, serial no 1901 and above

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .34 x .69 x .06

4шт.

68

196386C1

PLATE, separator drive pulley

1шт.

69

196387C2

SUPPORT

separator driven pulley

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss hd

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

4шт.

70

196388C1

SUPPORT, separator driven pulley

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

4шт.
