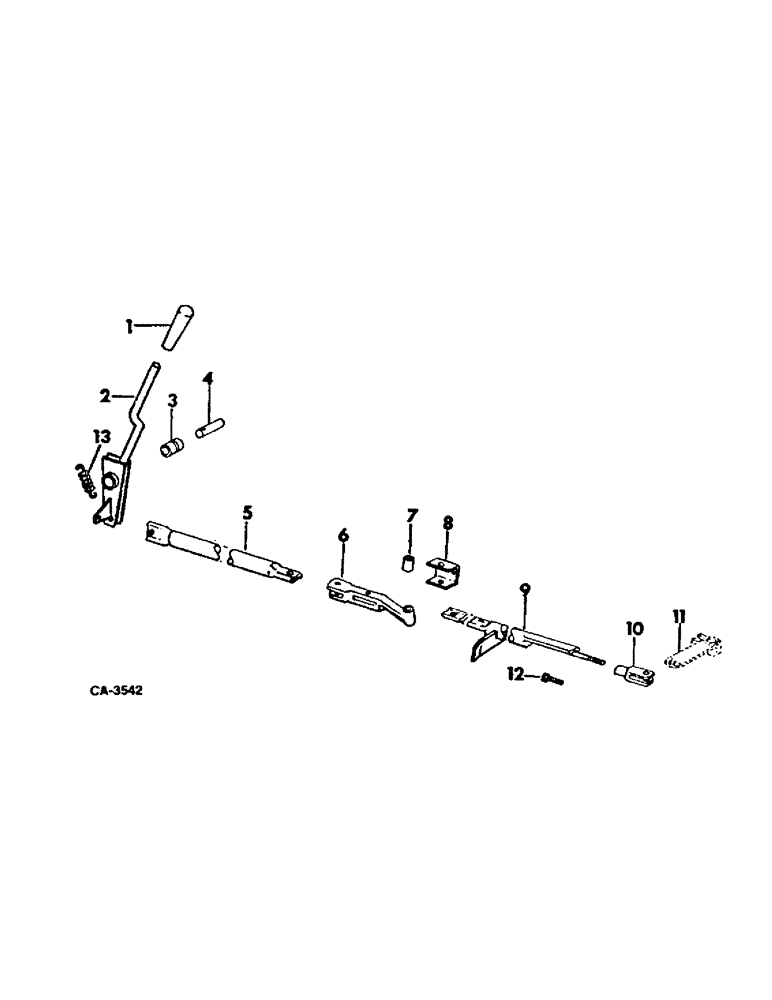

Запчасти Case IH 915 (07-11) - DRIVE TRAIN, SEPARATOR CLUTCH CONTROL Drive Train
№
Артикул
Название
Примечание
Количество
1
157473C1
KNOB
GRIP, separator clutch control lever
1шт.
2
164512C91
LEVER ASSY, separator clutch control
1шт.
3
938847R91
BEARING ASSY, separator clutch control lever
1шт.
4
165170C1
SHAFT, separator clutch control lever
1шт.
20328R1
COTTER PIN,3/16" x 1 1/2"
3/16" x 1 1/2"
1шт.
591715R1
WASHER
1-1/32 x 1-1/2 x 16 ga C-Z
4шт.
5
164517C1
PIPE, separator clutch control forward
1шт.
586591R1
COTTER PIN
PIN, qa cot
2шт.
21806R1
HEADED PIN,1/2" x 1 3/4"
PIN, 1/2 x 1-1/2 C-Z std-hd
1шт.
21932R1
HEADED PIN,1/2" x 2"
pin, 1/2 x 2 C-Z std-hd
1шт.
6
164518C1
ARM, separator clutch control intermediate pivot
1шт.
7
164519C1
SPACER,5/8" Tube x 1 5/8"
separator clutch control intermediate pivot
1шт.
18783R1
BOLT,Hex, 3/8"-16 x 2 1/2", G2
3/8 x 2-1/2 C-Z hex-hd mach
1шт.
120377
NUT,3/8" - 16, Gr 5
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
1шт.
8
164520C1
BRACKET, separator clutch control, intermediate pivot
1шт.
18508R1
CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd
BOLT, 3/8 x 3/4 C-Z sq-nk crg
2шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 C-Z flange lock
1шт.
9
177736C1
PIPE ASSY, separator clutch control
1шт.
120371
NUT,1/2"-20, G5
1шт.
586591R1
COTTER PIN
PIN, qa cot.
1шт.
21806R1
HEADED PIN,1/2" x 1 3/4"
PIN, 1/2 x 1-3/4 C-Z std-hd
1шт.
10
144245
ADJUSTABLE CLEVIS,1/2"-20 x 3"
CLEVIS, 1/2-20 x 3 C-Z lt adj rod end
1шт.
137185
COTTER PIN,1/8" x 1"
PIN, SPLIT (COTTER), 1/8" x 1"
1шт.
138086
CLEVIS PIN,1/2" x 1.360"
PIN, 1/2 x 1-27/64 C-Z rod end
1шт.
11
ARM, separator clutch housing, refer to this under separator drive unit for unit listing
1шт.
12
564638R1
BOLT, separator clutch control stop
2шт.
124829
JAM NUT,Hex, 3/8" - 16, Gr 5
2шт.
13
228
SPRING
separator clutch front control rod
1шт.
586591R1
COTTER PIN
PIN, qa cotter
2шт.
21932R1
HEADED PIN,1/2" x 2"
PIN, 1/2 x 2 std-hd
1шт.
Выбрано товаров: 31
