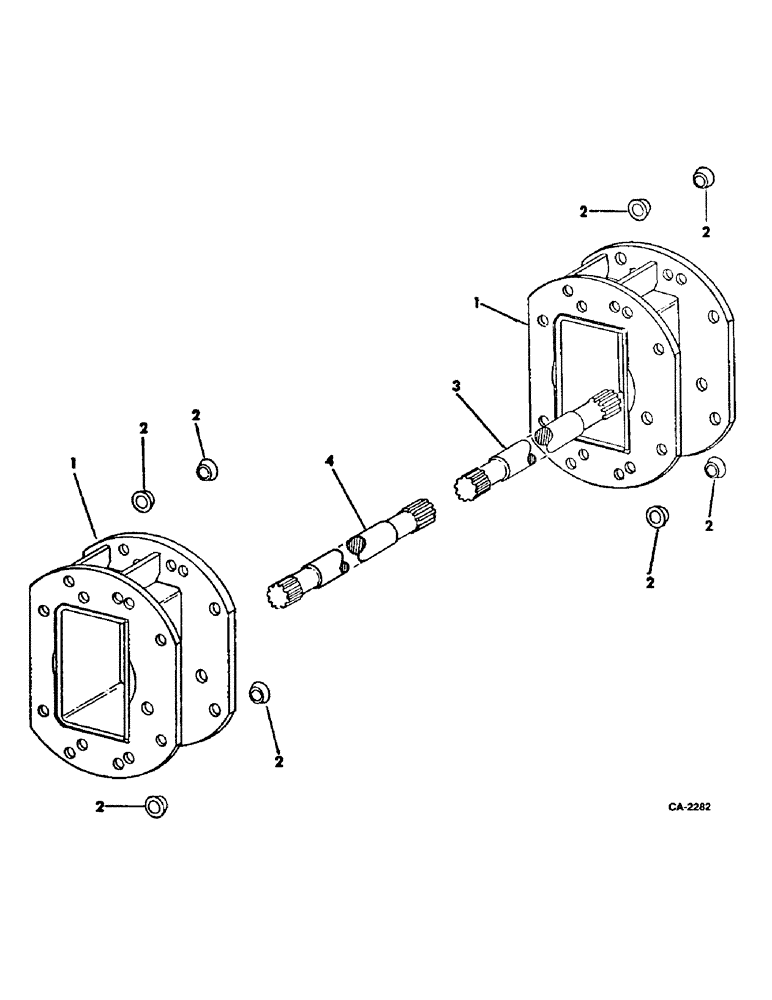

Запчасти Case IH 915 (07-08) - DRIVE TRAIN, MAIN WHEEL AXLE EXTENSION, 120 INCH THREAD Drive Train

1

177345C1

EXTENSION

ASSY, main axle

2шт.

21457R1

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 8

3/4 x 2-1/4 hex-hd type 8

12шт.

21610R1

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 8

3/4 x 2-1/2 hex-hd type 8

4шт.

22049R1

NUT,3/4"-10, G8

3/4 hex type 8

16шт.

24771R1

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

16шт.

390310R1

WASHER, 13/16 x 1-1/2 x 16 ga

8шт.

2

163909C1

BUSHING,19.15mm ID x 28.57mm OD x 12.7mm L

DOWEL, axle extension end plate

4шт.

3

178692C1

SHAFT, LH axle drive

1шт.

4

178691C1

SHAFT, RH axle drive

1шт.
