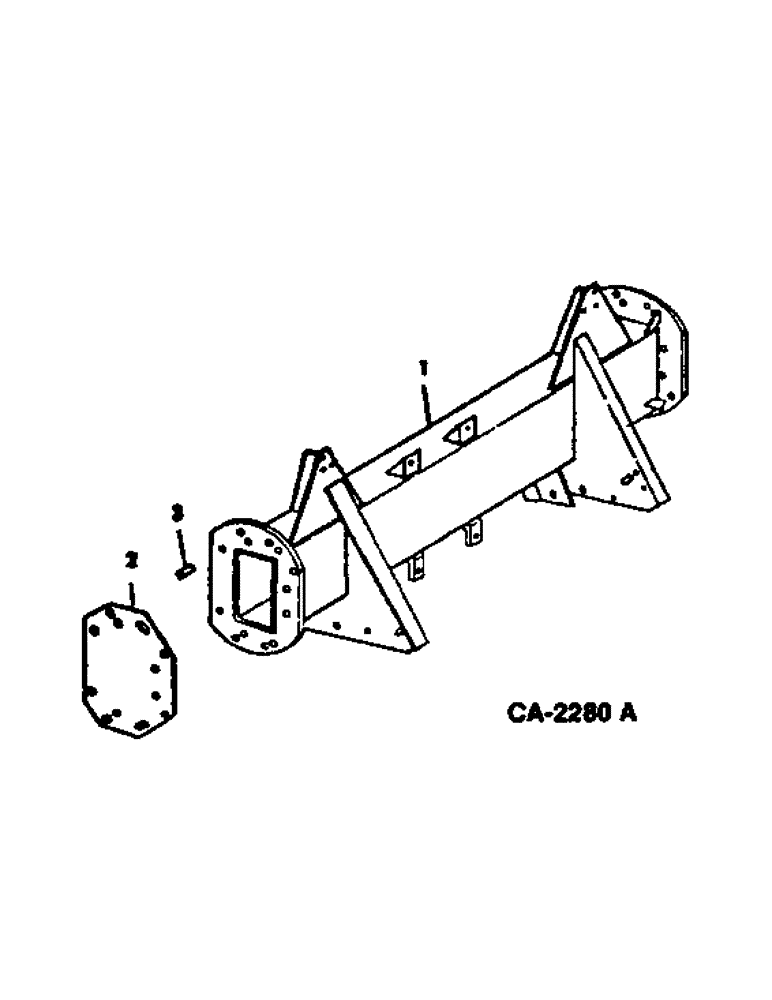

Запчасти Case IH 915 (07-01) - DRIVE TRAIN, MAIN AXLE Drive Train

1

177312C1

AXLE ASSY, main, not for track

1шт.

21452R1

BOLT,Hex, 3/4" - 10 x 2", Gr 8

3/4 x 2 hex-hd type 8

10шт.

21457R1

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 8

3/4 x 2-1/4 hed-hd type 8

4шт.

160068R1

BOLT, 5/8 x 1-1/2 hed-hd type 8

2шт.

131167

WASHER, LOCK,3/4"

3/4"

1шт.

131165

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

390310C1

WASHER,Flat, 3/4" Bolt, 13/16" ID x 1 1/2" OD x 0.134", HDN, ZND

13/16 x 1-1/2 x 10 ga hard

4шт.

1

196062C2

AXLE ASSY, track frame, for track

1шт.

23853R1

BOLT,Hex, 3/4" - 10 x 3", Gr 8

10шт.

25144R1

BOLT, 3/4 x 3-1/4 type 8

4шт.

160068R1

BOLT, 5/8 x 1-1/2 hex-hd type 4

4шт.

24771R1

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

14шт.

366866R1

RING

WASHER, 5/8 rib lock

4шт.

390310C1

WASHER,Flat, 3/4" Bolt, 13/16" ID x 1 1/2" OD x 0.134", HDN, ZND

.812 x 1.500 x .134 hdn

41шт.

2

177336C1

COVER

main axle end plate

2шт.

3

163909C1

BUSHING,19.15mm ID x 28.57mm OD x 12.7mm L

DOWEL, main axle end plate

1шт.
