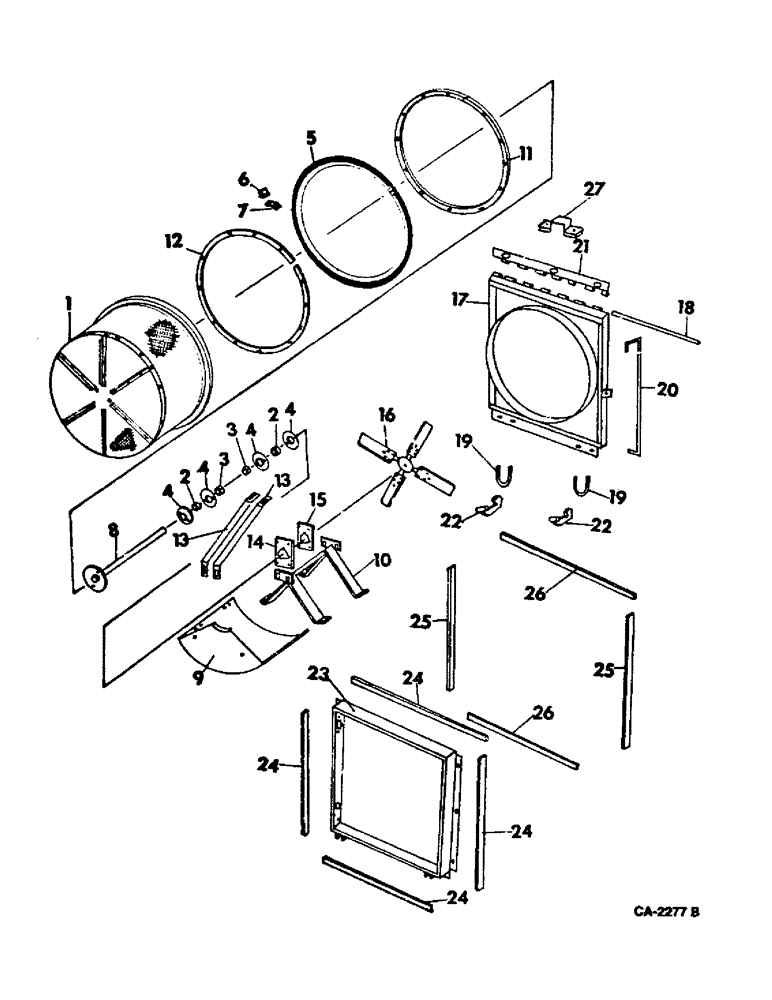

Запчасти Case IH 915 (06-3) - COOLING, ROTARY AIR SCREEN Cooling

1

177897C1

SIEVE

SCREEN ASSY, rotary air

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

12шт.

21352R1

RIVET,Tr Hd, 3/16" x .281", Alum.

3/16 x 9/32 semi, tubular, truss hd aluminium

12шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 znd hex-hd cap

2шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt truss hd

12шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

2

455957R92

BEARING ASSY,19.05mm ID x 47mm OD x 14mm W

ASSY, rotary air screen

1шт.

3

455958R11

COLLAR,19.05mm ID x 32.94mm OD x 13.49mm W

rotary air screen

2шт.

4

186636C1

FLANGED BEARING,2.125" ID x 0.3125"

FLANGE, rotary air screen brg

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

6шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

5

164615C91

BRUSH ASSY.

BRUSH ASSY, rotary screen

1шт.

6

164616C1

ANGLE

CLIP, rotary screen brush short

1шт.

7

164617C1

ANGLE

CLIP, rotary air screen brush long

1шт.

19910R1

LOCK NUT

10-24 cad lock

1шт.

436736

SCREW,Slotted Pan Hd, #10-24 x 1"

10-24 x 1 znp slt-pan-hd mach

1шт.

8

177914C1

SHAFT

ASSY, rotary air screen

1шт.

9

177916C1

SUPPORT

BAFFLE ASSY, rotary air screen

1шт.

104235

RIVET,FH, 3/16" x 1/2"

4шт.

163485

REAR FENDER

RIVET, .187 x .402 pop

3шт.

10

177918C1

SUPPORT

ASSY, rotary air screen brg

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

8шт.

937875R1

SCREW,Serr, 1/4" - 20

1/4 x 3/4 znp slt-truss-hd

8шт.

11

164606C1

WASHER

RING, rotary air screen bruch seal

1шт.

12

164627C1

RETAINER

FLANGE, rotary air screen seal

1шт.

163485C1

RIVET

.167 x .290 aluminum pop

12шт.

13

177920C1

SUPPORT

STRAP, rotary air screen brg

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

21496R1

WASHER

11/32 x 3/4 x 16 ga C-Z

4шт.

14

164605C1

LARGE PLATE

SUPPORT, rotary air screen brg flange

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

21496R1

WASHER

11/32 x 3/4 x 16 ga C-Z

2шт.

15

164604C1

BAR

SUPPORT, rotary air screen brg flange

1шт.

16867R1

BOLT, 5/16 x 3/4 znd sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

21496R1

WASHER

11/32 x 3/4 16 ga C-Z

2шт.

16

177921C1

FAN ASSY, rotary air screen

2шт.

180116

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

SCREW, 3/8 x 1/2 C-Z hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

17

177922C1

ADAPTER

ADAPTOR ASSY, pivoting

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

2шт.

18

25505K

ROD, pivoting adaptor hinge

1шт.

19

664360R1

BOLT,U, 1/4" - 20 x 69.65"

pivoting adapter clamp U

2шт.

86625061

NUT,1/4"-20, GB

NUT, 1/4 C-Z hex. lock

4шт.

20

177930C1

ROD, pivoting adaptor support

1шт.

648002

KNIFE

1/8" x 3/4"

2шт.

21

174298C1

HINGE, pivoting adaptor

1шт.

22

155909C1

LATCH

pivoting adaptor

2шт.

648002

KNIFE

1/8" x 3/4"

2шт.

21879R1

HEADED PIN,1/4" x 1 1/4"

PIN, 1/4 x 1-1/4 C-Z std hd dld

2шт.

23

177900C91

ADAPTOR ASSY, rotary air sieve, gasoline engine

1шт.

23

177899C91

ADAPTOR ASSY, rotary air sieve, diesel engine

1шт.

24

400143R1

GASKET

STRIP, stafoam

4шт.

25

177910C1

SEAL

SEAL, rotary air screen shroud side

2шт.

26

177911C1

SEAL

rotary air screen shroud bottom, used as required

1шт.

27

160638C1

HANDLE

pivoting adapter

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

2шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-trss-hd

2шт.
