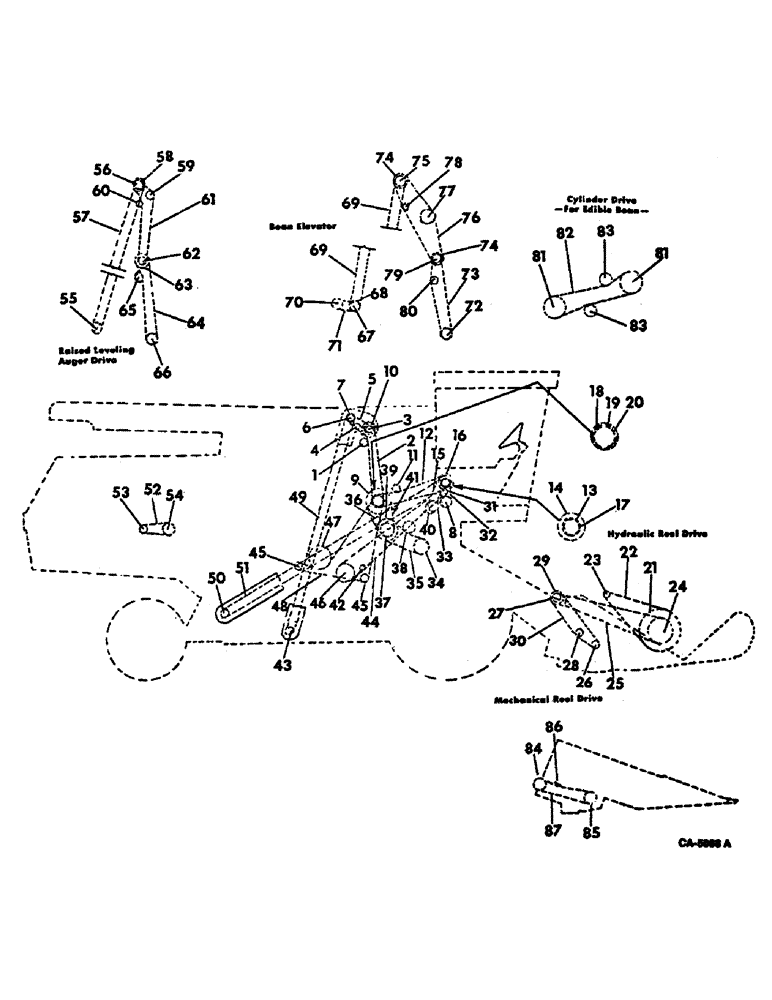

Запчасти Case IH 915 (02-07) - MISCELLANEOUS, CHAIN AND SPROCKET DIAGRAM, RIGHT SIDE Accessories & Attachments / Miscellaneous

1

SPROCKET ASSY, grain tank leveling auger drive chain tightener, refer to group 26 under grain tank levelling auger for unit listing

1шт.

2

CHAIN ASSY, grain tank leveling auger drive, refer to group 26 under grain tank leveling auger for unit listing

1шт.

3

SPROCKET ASSY, grain elevator driven, refer to group 26 under grain tank levelling auger for unit listing

1шт.

4

SPROCKET ASSY, grain elevator drive chain tightener 15-7, refer to group 26 under grain tank leveling auger for unit listing

1шт.

5

CHAIN ASSY, grain elevator drive, refer to group 25 under grain tank leveling auger for unit listing

1шт.

6

SPROCKET ASSY, grain elevator driven, refer to group 25 under grain tank leveling auger for unit listing

1шт.

7

SPROCKET, chain elevator conveyor chain, refer to group 25 under grain elevator for unit listing

1шт.

8

SPROCKET, tailings delivery auger driven 8-T, refer to group 25 under tailings delivery auger and drive for unit listing

1шт.

9

SPROCKET, elevator jackshaft driven 47-T, refer to group 25 under grain elevator drive for unit listing

1шт.

10

SPROCKET, grain tank leveling auger driven, refer to group 25 under grain tank leveling auger for unit listing

1шт.

11

SPROCKET, tailings elevator drive idler 17-T, refer to group 25 under tailings elevator for unit listing

1шт.

12

CHAIN, tailings elevator drive, refer to group 25 under tailings elevator for unit listing

1шт.

13

SPROCKET, tailing delivery auger drive 9-T, refer to group 25 under tailings delivery auger and drive for unit listing

1шт.

14

SPROCKET, tailings elevator driven 33-T, refer to group 25 under tailings elevator for unit listing

1шт.

15

CHAIN, variable speed cylinder drive console adjusting, refer to group 21 under variable cylinder belt drive for unit listing

1шт.

16

SPROCKET, variable cylinder speed upper control shaft 18-T, refer to group 21 under variable cylinder belt drive for unit listing

1шт.

17

SPROCKET, elevator drive slip clutch 26-T, refer to group 25 under tailings elevator for unit listing

1шт.

18

SPROCKET, tailings elevator drive 31-7, refer to group 25 under tailings elevator for unit listing

1шт.

19

SPROCKET, elevator slip clutch, refer to group 25 under tailings elevator for unit listing

1шт.

20

SPROCKET ASSY, straw rack drive 23-T, refer to group 22 under straw rack and drive for unit listing

1шт.

21

SPROCKET, hydraulic reel drive 50-T, refer to GH-1 parts catalog section C under hydraulic reel drive for unit listing

1шт.

22

CHAIN ASSY, hydraulic reel drive, refer to GH-1 section C under hydraulic reel drive for unit listing

1шт.

23

SPROCKET, hydraulic reel drive 7-T, refer to GH-1 parts catalog section C under hydraulic reel drive for unit listing

1шт.

24

SPROCKET, mechanical reel driven, 58-T, refer to GH-1 parts catalog section C under mechanical reel drive for unit listing

1шт.

25

CHAIN ASSY, mechanical reel drive, refer to GH-1 parts catalog section C under mechanical reel drive for unit listing

1шт.

26

SPROCKET, mechanical reel drive 18-T, refer to GH-1 parts catalog section C under mechanical reel drive

1шт.

27

SPROCKET, mechanical reel drive 22-T, refer to GH-1 parts catalog section C under mechanical reel drive for unit listing

1шт.

28

SPROCKET, mechanical reel drive idler 17-T, refer to GH-1 parts catalog section C under mechanical reel drive for unit listing

1шт.

29

SPROCKET ASSY, mechanical reel drive tightener 17-T, refer to GH-1 parts catalog section C under mechanical reel drive for unit listing

1шт.

30

CHAIN ASSY, mechanical reel drive, refer to GH-1 parts catalog section C under mechanical reel drive for unit listing

1шт.

31

SPROCKET ASSY, tailings delivery auger drive chain tightener, 17-T, refer to group 25 under tailings delivery auger and drive for unit listing

1шт.

32

CHAIN ASSY, tailings delivery auger drive, refer to group 25 under tailings delivery auger and drive for unit listing

1шт.

33

SPROCKET, variable speed control console shaft 8-T, refer to group 21 under variable cylinder drive for unit listing

1шт.

34

SPROCKET, cylinder drive or driven 30-T

1шт.

34

SPROCKET, cylinder drive or driven 35-T

1шт.

34

SPROCKET, cylinder driven 65-T

1шт.

34

SPROCKET, cylinder driven 88-T, refer to group 21 under variable cylinder chain drive for unit listing

1шт.

35

CHAIN ASSY, cylinder drive, refer to group 21 under variable cylinder drive chain for unit listing

1шт.

36

SPROCKET ASSY, elevator jackshaft drive chain tighter 13-T, refer to group 25 under elevator drive for unit listing

1шт.

37

SPROCKET ASSY, elevator jackshaft drive 25-T, refer to group 25 under grain elevator drive for unit listing

1шт.

38

SPROCKET, cylinder drive chain tightener 22-T, refer to group 21 under variable cylinder chain drive for unit listing

1шт.

39

SPROCKET, cylinder drive or driven 30-T

1шт.

39

SPROCKET, cylinder drive or driven 35-T

1шт.

39

SPROCKET, cylinder drive or driven 65-T

1шт.

39

SPROCKET, cylinder drive or driven 88-T, refer to group 21 under variable cylinder chain drive for unit listing

1шт.

40

SPROCKET, variable speed control console shaft 8-T, refer to group 21 under variable cylinder belt drive for unit listing

1шт.

41

CHAIN ASSY, grain elevator jackshaft drive, refer to group 25 under grain elevator drive for unit listing

1шт.

42

SPROCKET ASSY, lower lower adj. control chain tightener C-T refer to group 21 under variable cylinder belt drive for unit listing

1шт.

43

SPROCKET, grain elevator conveyor chain lower 6-T and 7-T, refer to group 25 under grain elevator for unit listing

1шт.

44

CHAIN, variable speed cylinder adj control lower, refer to group 21 under variable cylinder belt drive for unit listing

1шт.

45

SPROCKET ASSY, straw walker drive idler and lightener 17-T, refer to group 22 under straw walker and drive for unit listing

2шт.

46

SPROCKET, variable cylinder drive control RH 26-T, refer to group 21 under variable cylinder belt drive for unit listing

1шт.

47

SPROCKET ASSY, straw walker driven 66-T, refer to group 22 under straw walker and drive for unit listing

1шт.

48

CHAIN ASSY, straw walker drive, refer to group 22 under straw walker and drive for unit listing

1шт.

49

CHAIN W/FLIGHTS ASSY, grain elevator conveyor, refer to group 25 under grain elevator for unit listing

1шт.

50

SPROCKET, tailings elevator lower 6-T, refer to group 25 under tailings elevator for unit listing

1шт.

51

CHAIN W/FLIGHTS, tailings elevator conveyor, refer to group 25 under tailings elevator for group listing

1шт.

52

CHAIN ASSY, return pan drive, refer to group 22 under straw rack return pan for unit listing

1шт.

53

SPROCKET, return pan driven 18-T, refer to group 22 under straw rack return pan for unit listing

1шт.

54

SPROCKET ASSY, return pan driver 28-T, refer to group 22 under straw rack return pan for unit listing

1шт.

55

SPROCKET, grain elevator conveyor chain lower 6-T, refer to group 25 under grain elevator, not bean, for unit listing

1шт.

56

SPROCKET, grain elevator conveyor chain under 7-T, refer to group 25 under grain elevator, not bean for unit listing

1шт.

57

CHAIN W/FLIGHTS, grain elevator conveyor, refer to group 25 under grain elevator, not bean, for unit listing

1шт.

58

SPROCKET ASSY, grain elevator driven 16-T, refer to group 26 under grain tank leveling auger, not bean, for unit listing

1шт.

59

SPROCKET ASSY, grain elevator drive, refer to group 26 under grain tank leveling auger for unit listing

1шт.

60

SPROCKET ASSY, leveling auger and elevator drive chain tightener 15-T, refer to group 26 under grain tank leveling auger, not bean, for unit listing

1шт.

61

CHAIN ASSY, grain elevator drive, refer to group 26 under grain tank leveling auger, not bean, for unit listing

1шт.

62

SPROCKET ASSY, grain elevator drive 19-T, refer to group 26 under grain tank leveling, not bean, for unit listing

1шт.

63

SPROCKET, grain tank leveling auger driven, refer to group 26 under grain tank leveling, not bean, for unit listing

1шт.

64

CHAIN ASSY, grain tank leveling auger drive, refer to group 26 under grain tank leveling auger, not bean, for unit listing

1шт.

65

SPROCKET ASSY, grain tank leveling auger, not bean, refer to group 26 under grain elevator, bean, for unit listing

1шт.

66

SPROCKET, tailings elevator drive slip clutch 26-T, refer to group 25 under grain tank leveling auger, not bean, for unit listing

1шт.

67

SPROCKET ASSY, grain elevator boot shaft drive 21-T, refer to group 25 under grain elevator, for bean, for unit listing

1шт.

68

SPROCKET, grain elevator conveyor chain 7-T, refer to group 25 under grain elevator, bean, for unit listing

1шт.

69

CHAIN ASSY, grain elevator conveyor, refer to group 25 under grain elevator, bean, for unit listing

1шт.

70

SPROCEKT ASSY, grain elevator boot shaft driven 17-T, refer to group 25 under grain elevator, bean, for unit listing

1шт.

71

CHAIN ASSY, grain elevator boot shaft drive, refer to group 25 under grain elevator, bean, for unit listing

1шт.

72

SPROCKET, tailings elevator slip clutch, refer to group 25 under tailings elevator for group listing

1шт.

73

CHAIN ASSY, grain tank leveling auger drive, refer to group 26 under grain tank leveling auger, bean, for unit listing

1шт.

74

SPROCKET, grain elevator drive and driven 27-T, refer to group 25 under grain tank leveling auger, bean, for unit listing

1шт.

75

SPROCKET ASSY, grain elevator conveyor 8-T, refer to group 25 under grain elevator, bean, for unit listing

1шт.

76

CHAIN ASSY, elevator and auger drive, refer to group 26 under grain tank leveling auger, bean, for unit listing

1шт.

77

SPROCKET, leveling auger and elevator jackshaft driven 33-T, refer to group 26 under grain tank leveling auger, bean, for unit listing

1шт.

78

SPROCKET ASSY, leveling auger and elevator drive chain tightener 15-T, refer to group 26 under grain tank leveling auger, bean, for unit listing

1шт.

79

SPROCKET, leveling auger and elevator jackshaft driven 33-T, refer to group 26 under grain tank leveling auger, bean, for unit listing

1шт.

80

SPROCKET ASSY, tailings elevator drive idler 17-T, refer to group 26 under grain tank leveling auger, bean for unit listing

1шт.

81

SPROCKET, cylinder drive or driven 30-T

1шт.

81

SPROCKET, cylinder drive or driven 35-T, parts accessory

1шт.

81

SPROCKET, cylinder drive or driven 65-T

1шт.

81

SPROCKET, cylinder drive or driven 88-T, refer to group 21 under variable cylinder chain drive, bean for unit listing

1шт.

82

CHAIN ASSY, cylinder drive chain, refer to group 21 under variable cylinder chain drive, bean, for unit listing

1шт.

83

SPROCKET, cylinder drive tightener 20-T, refer to group 21 under variable cylinder chain drive for unit listing

2шт.

84

SPROCKET, main drive 24-T, refer to CH-1 parts catalog section A under main drive and shielding

1шт.

85

SPROCKET, main driven, refer to CH-1 parts catalog

1шт.

86

BLOCK MAIN DRIVEN, tightener, refer to CH-1 parts catalog

1шт.

87

CHAIN ASSY, masin drive, refer to CH-1 parts catalog

1шт.
