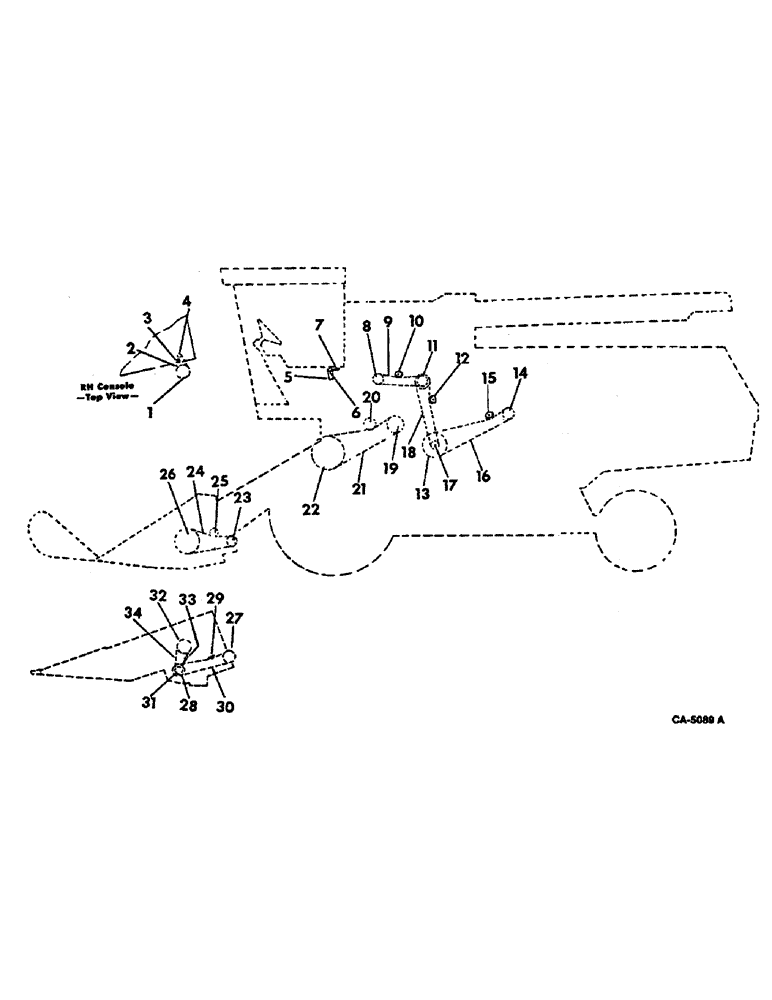

Запчасти Case IH 915 (02-05) - MISCELLANEOUS, CHAIN AND SPROCKET DIAGRAM, LEFT SIDE Accessories & Attachments / Miscellaneous

1

SPROCKET ASSY, concave control driven 42-T, refer to group 21 under concave and control for unit listing

1шт.

2

CHAIN ASSY, concave control, refer to group 21 under concave and control for unit listing

1шт.

3

ROLLER, concave control chain tightener, refer to group 21 under concave and control for unit listing

1шт.

4

PIN ASSY, concave control drive sprocket 10-T, refer to group 21 under concave and control for unit listing

1шт.

5

PIN ASSY, concave control drive sprocket 10-T, refer to group 21 under concave and control for unit listing

1шт.

6

BELT, concave indicator, refer to group 21 under concave and control for unit listing

1шт.

7

INDICATOR, concave control, refer to group 21 under concave and control for unit listing

1шт.

8

SPROCKET ASSY, grain tank bottom auger driven 45-T and 29-T, refer to group 26 under grain tank and unloader drive for unit listing

1шт.

9

CHAIN ASSY, grain tank bottom front auger drive, refer to group 26 under grain tank and unloader drive for unit listing

1шт.

10

BLOCK, grain tank bottom front auger tightener, refer to group 26 under grain tank and unloader drive for unit listing

1шт.

11

SPROCKET ASSY, grain tank bottom auger driven 45-T and 29-T, refer to group 21 under grain tank and unloader drive for unit listing

1шт.

12

BLOCK, rear auger drive chain tightener, refer to group 26 under grain tank and unloader drive for unit listing

1шт.

13

SPROCKET, grain tank gear case driven 57-T, refer to grain tank and unloader drive for unit listing

1шт.

14

SPROCKET, grain tank unloader auger lower gear drive 29-T, refer to group 26 under grain tank and unloader drive for unit listing

1шт.

15

BLOCK, grain tank unloader auger lower gear chain tightener, refer to group 28 under grain tank and unloader drive for unit listing

1шт.

16

CHAIN ASSY, grain tank unloader auger lower gear case, refer to group 26 under grain tank and unloader drive for unit listing

1шт.

17

SPROCKET ASSY, grain bottom rear auger drive 25-T, refer to group 26 under grain tank and unloader drive for unit listing

1шт.

18

CHAIN ASSY, rear auger drive, refer to group 26 under grain tank and unloader drive for unit listing

1шт.

19

SPROCKET, feeder drive 13-T, refer to group 33 under feeder drive for unit listing

1шт.

20

SPROCKET, feeder drive chain tightener 19-T, refer to group 33 under feeder drive for unit listing

1шт.

21

CHAIN ASSY, feeder drive, not bean

1шт.

21

CHAIN ASSY, feeder drive, bean, refer to group 33 under feeder drive for unit listing

1шт.

22

SPROCKET, feeder driven 49-T, refer to group 33 under feeder drive for unit listing

1шт.

23

SPROCKET, header auger drive 18-T, refer to GH-1 parts catalog

1шт.

24

CHAIN ASSY, header auger drive, refer to GH-1 parts catalog section C under header auger drive for unit listing

1шт.

25

SPROCKET ASSY, header auger drive chain tightener 15-T, refer to GH-1 parts catalog section C under header auger drive for unit listing

1шт.

26

SPROCKET, header auger driven 47-T, refer to GH-1 parts catalog section C under header auger drive for unit listing

1шт.

27

SPROCKET, main drive, 24-T, refer to CH-1 parts catalog section A under main drive and shielding

1шт.

28

SPROCKET MAIN DRIVEN, refer to CH-1 parts catalog

1шт.

29

BLOCK, main drive tightener, refer to CH-1 parts catalog

1шт.

30

CHAIN ASSY, main drive, refer to CH-1 parts catalog

1шт.

31

SPROCKET auger drive 8-T, refer to CH-1 parts catalog

1шт.

32

SPROCKET, auger driven 23-T, refer to CH-1 parts catalog section A under auger, strippers, support and drive

1шт.

33

BLOCK, auger drive tightener, refer to CH-1 parts catalog

1шт.

34

CHAIN ASSY, auger drive, refer to CH-1 parts catalog

1шт.
