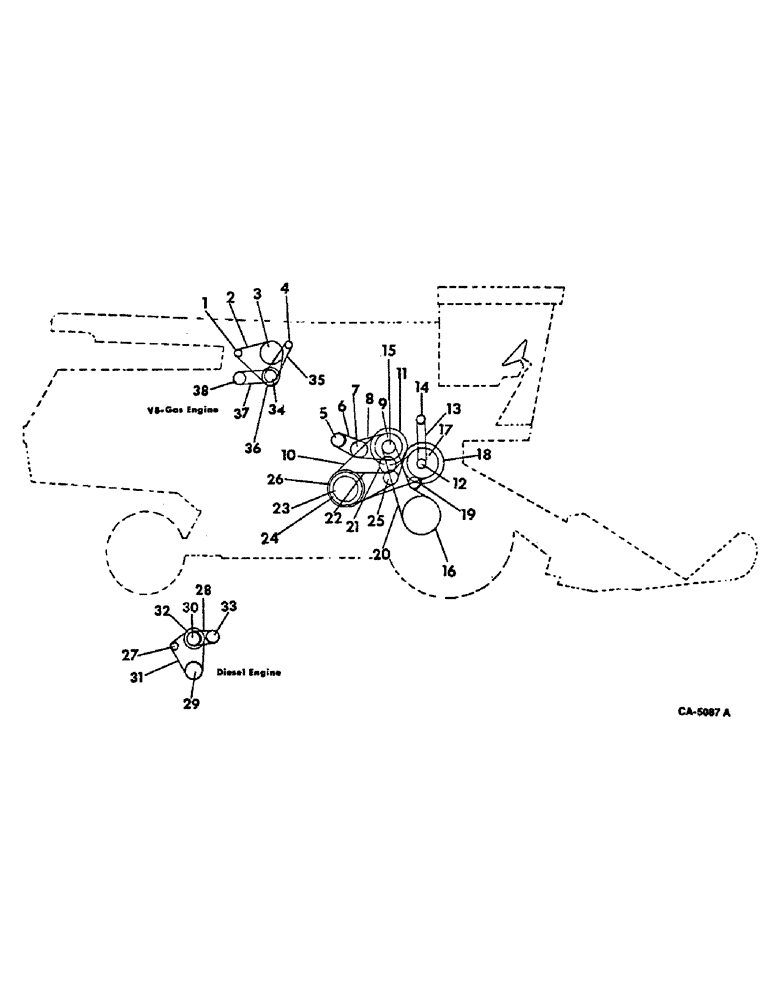

Запчасти Case IH 915 (02-03) - MISCELLANEOUS, BELT AND PULLEY DIAGRAM, RIGHT SIDE Accessories & Attachments / Miscellaneous

1

PULLEY, alternator, generator, gasoline engine, refer to group 8 under alternator generator and mounting for unit listing

1шт.

2

BELT, alternator, gasoline engine

1шт.

3

PULLEY, water pump idler, 11 in. OD, gasoline engine, refer to group 8 under alternator generator and mounting for unit listing

1шт.

4

PULLEY, governor driven, 5.0 in. OD, gasoline engine, refer to eng-3 parts catalog section B for unit listing

1шт.

5

PULLEY, fan driven, 7.5 in. OD, refer to group 24 under fan drive for unit listing

1шт.

6

BELT, pair of fan drive, refer to group 24 under fan drive for unit listing

1шт.

7

PULLEY, fan jackshaft outer half, 9.84 in. OD

2шт.

7

PULLEY, fan jackshaft center, 9.84 in OD, refer to group 24 under fan drive for unit listing

1шт.

8

BELTS, pair of fan drive, refer to group 24 under fan drive for unit listing

1шт.

9

PULLEY ASSY, fan drive, refer to group 24 under fan drive for unit listing

1шт.

10

BELT, variable cylinder drive, refer to group 21 under variable cylinder belt drive for unit listing

1шт.

11

PULLEY ASSY, variable cylinder, 20 in. OD, refer to group 21 under variable cylinder belt drive for unit listing

1шт.

12

PULLEY, speed indicator shaft drive, 4 in. OD, refer to group 21 under rasp bar cylinder and speed indicator for unit listing

1шт.

13

BELT, cylinder speed indicator drive, refer to group 21 under rasp bar cylinder and cylinder speed indicator for unit listing

1шт.

14

PULLEY, speed indicator shaft driven, 4 in. OD, refer to group 21 under rasp bar cylinder and cylinder speed indicator for unit listing

1шт.

15

PULLEY, ASSY, shaker shaft drive, 7.04 in. OD, refer to group 23 under shaker shaft drive for unit listing

1шт.

16

PULLEY ASSY, shaker shaft driven 280 RPM, 18.24 in OD

1шт.

16

PULLEY ASSY, shaker shaft driven 265 RPM, 19.19 in. OD, refer to group 23 under shaker shaft drive for unit listing

1шт.

17

PULLEY, cylinder driven, 20 in OD, refer to group 21 under variable cylinder belt drive for unit listing

1шт.

18

PULLEY, cylinder driven, 20 in. OD, refer to group 21 under variable cylinder drive for unit listing

1шт.

19

PULLEY ASSY, shaker shaft drive belt tightener, 7 in. OD, refer to group 23 under shaker shaft drive unit listing

1шт.

20

BELT, shaker shaft drive 280 RPM

1шт.

20

BELT, shaker shaft drive 265 RPM, refer to group 23 under shaker shaft drive for unit listing

1шт.

21

_

PULLEY ASSY, cylinder belt tightener, 8 in. OD, refer to group 21 under variable cylinder belt and pulley drive for unit listing

1шт.

22

BELT, cylinder drive, refer to group 21 under variable cylinder belt drive for unit listing

1шт.

23

PULLEY, cylinder drive, 15.5 in. OD, refer to group 21 under variable cylinder belt and pulley drive for unit listing

1шт.

24

PULLEY, cylinder drive, 15.5 in. OD, refer to group 21 under variable cylinder belt and pulley drive for unit listing

1шт.

25

PULLEY, variable cylinder drive belt idler, 8 in. OD, refer to group 21 under variable cylinder belt drive for unit listing

1шт.

26

PULLEY W/PIN AND BUSHING VARIABLE CYLINDER ADJ DRIVEN, 18 in OD

1шт.

26

PULLEY ASSY, variable cylinder fixed half driven, 18 in. OD refer to group 21 under variable cylinder belt drive for unit listing

1шт.

27

PULLEY, alternator drive tightener, diesel engine, refer to group 8 under alternator, generator drive and mounting for unit listing

1шт.

28

BELT, air conditioning compressor drive, refer to group 13 under air conditioning compressor and condenser for unit listing

1шт.

29

PULLEY, alternator drive, diesel engine, refer to group 8 under alternator, generator and mounting for unit listing

1шт.

30

PULLEY, water pump, generator and compressor and condenser for unit listing

1шт.

31

BELT, matched set fan, diesel engine, refer to group 6 under fan blade and belt for unit listing

1шт.

32

PULLEY ASSY, water pump, diesel engine, refer to ENG-5 parts catalog section J for unit listing

1шт.

33

PULLEY ASSY, clutch compressor, diesel engine, refer to group 13 under air conditioning compressor and condenser for unit listing

1шт.

34

PULLEY, water pump and compressor drive, gasoline engine, refer to group 13 under air conditioning compressor and condenser for unit listing

1шт.

35

BELT, governor, gasoline engine, refer to ENG-3 parts catalog section B for unit listing

1шт.

36

PULLEY, alternator drive, gasoline engine, refer to group 8 under alternator generator drive and mounting for unit listing

1шт.

37

BELT, compressor drive, gasoline engine, refer to group 13 under air conditioning compressor and condenser for unit listing

1шт.

38

PULLEY ASSY, compressor, gasoline engine, refer to group 13 under air conditioning compressor and condenser for unit listing

1шт.
