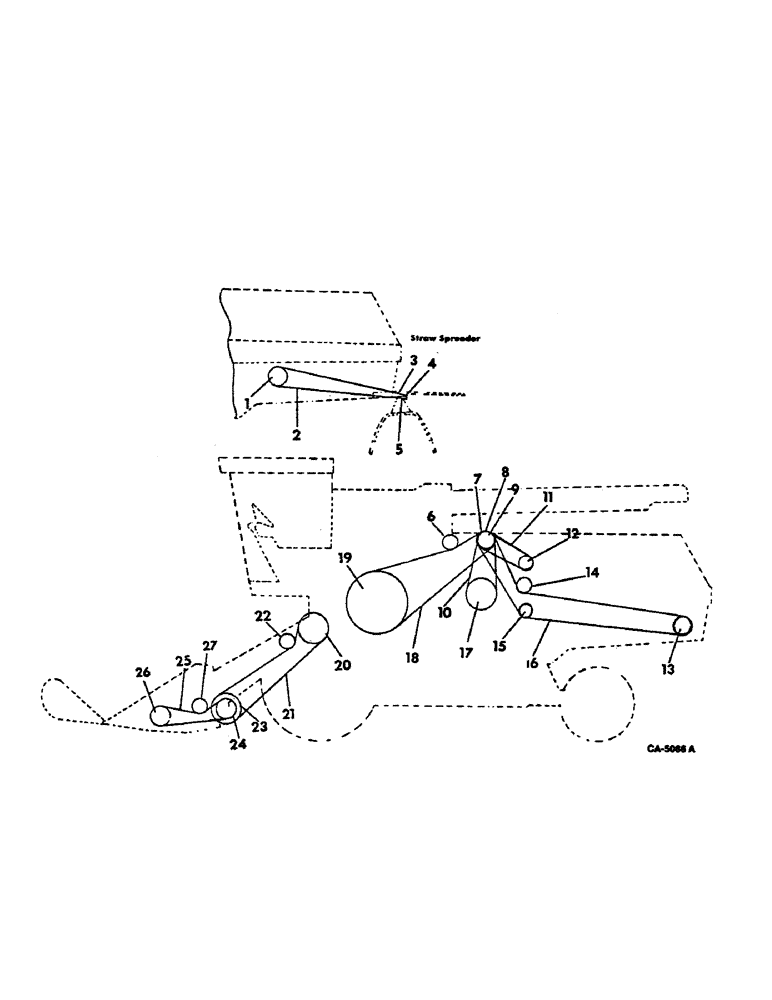

Запчасти Case IH 915 (02-01) - MISCELLANEOUS, BELT AND PULLEY DIAGRAM, LEFT SIDE Accessories & Attachments / Miscellaneous

1

PULLER ASSY, straw spreader driver, 9.81 in. OD, refer to group 20 under straw spreader for unit listing

1шт.

2

BELT, straw spreader drive spreader for unit listing

1шт.

3

PULLEY ASSY, straw spreader drive belt tightener, 4-3/1 in. OD refer to group 20 under straw spreader for unit listing

1шт.

4

PULLEY, straw spreader driven, 5-3/4 in. OD, refer to group 20 under straw spreader for unit listing

1шт.

5

PULLEY ASSY, straw spreader drive belt idler, 5-1/8 in. OD, refer to group 20 under straw spreader for unit listing

1шт.

6

PULLEY, separator drive belt tightener, 8 in. OD, refer to group 7 under separator drive for unit listing

1шт.

7

PULLEY, separator drive, 8.6 in. OD, gasoline engine, refer to group 7 under separator drive for unit listing

1шт.

7

PULLEY, separator drive, 9.8 in. OD, diesel engine, refer to group 7 under separator drive for unit listing

1шт.

8

PULLEY ASSY, pump drive, 7.88 in. OD, gasoline engine

1шт.

8

PULLEY ASSY, pump drive, 8.88 in. OD, diesel engine, refer to group 10 under hydraulic reel or pickup drive separator

1шт.

parts for units listing

1шт.

9

PULLEY ASSY, unloader jackshaft drive 9 in. OD refer to group 7 under separator drive for unit listing

1шт.

10

BELT, unloader jackshaft drive, refer to group 26 under grain tank and unloader drive for unit listing

1шт.

11

BELT, hydraulic reel pump drive, gasoline engine

1шт.

11

BELT, hydraulic reel pump drive diesel engine, refer to group 10 under hydraulic or pickup drive separator parts for unit listing

1шт.

12

PULLEY, pump driven, 7.88 in. OD, refer to group 10 under hydraulic refer or pickup drive separator parts for unit listing

1шт.

13

PULLEY ASSY, straw chopper driven 9-3/4 in. OD, refer to group 20 under straw chopper for unit listing

1шт.

14

PULLEY ASSY, straw chopper drive idler flat 8-3/4 in. OD, refer to group 20 under straw chopper drive for unit listing

1шт.

15

PULLEY ASSY, straw chopper drive belt tightener, 7.15 in. OD. refer to group 20 under straw chopper drive for unit listing

1шт.

16

BELT, straw chopper drive, refer to group 20 under straw chopper drive for unit listing

1шт.

17

PULLEY ASSY, unloader jackshaft driven, 16.7 in. OD, refer to group 26 under grain tank unloader drive for unit listing

1шт.

18

BELT, separator drive, gasoline engine

1шт.

18

BELT, separator drive, diesel engine, refer to group 7 under separator drive for unit listing

1шт.

19

PULLEY, separator driven, 31.9 in. OD, refer to group 7 under separator drive

1шт.

20

PULLEY, feeder drive, 16.30 in. OD, refer to group 33 under feeder drive for unit listing

1шт.

21

BELT, feeder jackshaft drive, refer to group 33 under feeder drive for unit listing

1шт.

22

PULLEY ASSY, jackshaft drive, 8.0 in. OD, refer to group 33 under feeder jackshaft drive for unit listing

1шт.

23

PULLEY, feeder jackshaft driven, 13.4 in. OD, refer to group 33 under feeder jackshaft drive for unit listing

1шт.

24

PULLEY ASSY, header knife drive, 10.1 in., refer to GH-1 parts catalog section C under kinfe and kinfe drive fou unit listing

1шт.

25

BELT, header knife, refer to GH-1 parts catalog section C under knife and knife drive for unit listing

1шт.

26

PULLEY, header knife driven, 10.1 in. OD, refer to GH-1 parts catalog section C under knife and knife drive

1шт.

27

PULLEY, header knife idler, 7.97 in. OD, refer to GH-1 parts catalog section C under knife and knife drive for unit listing

1шт.
