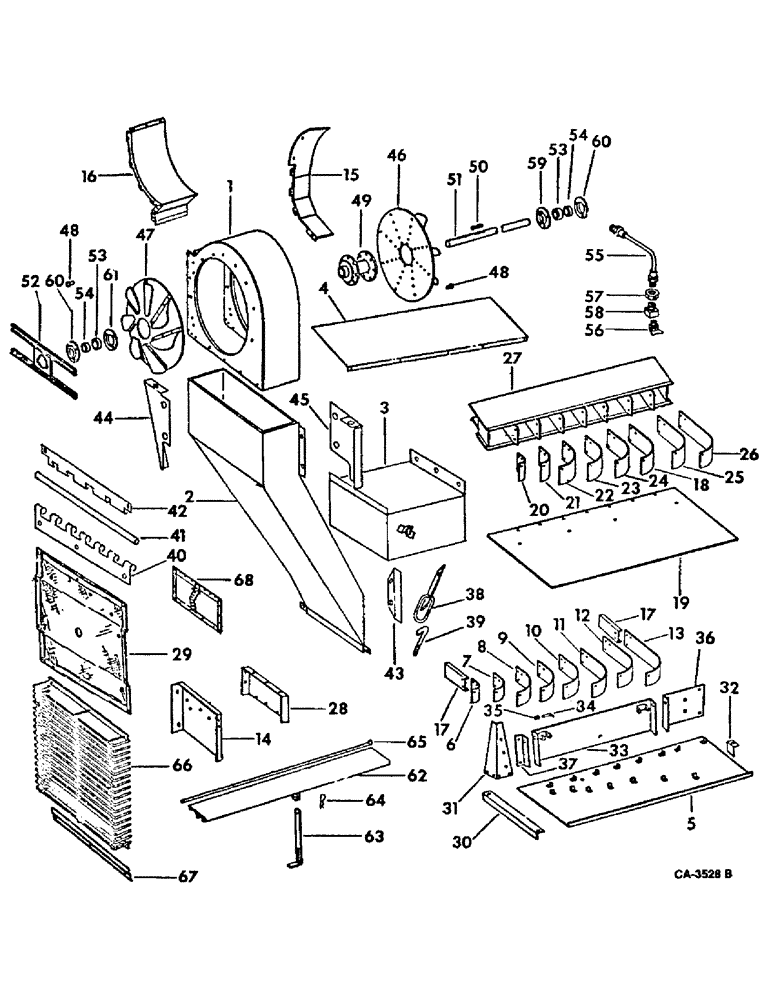

Запчасти Case IH 915 (24-1) - CLEANING FAN, FAN AND FAN AIR DUCT (15) - CLEANING

1

177235C1

HOUSING ASSY, fan

1шт.

2

177239C2

DUCT ASSY, fan center air

1шт.

2

177245C2

DUCT

ASSY, fan center air, for use w/air duct door

1шт.

3

177247C1

DUCT ASSY, fan air lower

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex hd mach

3шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

4

160934C11

SIDE ASSY, plenum box top

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt-truss-hd

1шт.

5

160935C11

SIDE ASSY, plenum box bottom

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

4шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

6

165076C1

DEFLECTOR, plenum box

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

4шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt truss hd

4шт.

7

165077C1

DEFLECTOR, plenum box

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

4шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z truss hd

4шт.

8

165078C1

DEFLECTOR, plenum box

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

4шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt truss hd

4шт.

9

165079C1

DEFLECTOR, plenum box

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

4шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt truss hd

4шт.

10

165080C1

DEFLECTOR, plenum box

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

4шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt truss hd

4шт.

11

165081C1

DEFLECTOR, plenum box

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

4шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt truss hd

4шт.

12

165082C1

DEFLECTOR, plenum box

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

4шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

4шт.

13

165100C1

DEFLECTOR, plenum box left lower

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

4шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 slt-truss-hd

4шт.

14

170884C1

SIDE, plenum box filler

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 hex-hd mach

4шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 hex-hd cap

2шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

15

163830C1

SHIELD, fan housing blade

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 1/2 slt-truss-hd

2шт.

16

177246C2

HOUSING, fan lower

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

14шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd

14шт.

17

165090C1

CHANNEL, lower

6шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

8шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt truss hd

8шт.

18

165099C1

DEFLECTOR, top left

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

4шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

19

165158C11

SHEET ASSY, plenum box center

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

4шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt-truss-hd

4шт.

20

165083C1

DEFLECTOR, plenum box

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

4шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt truss hd

4шт.

21

165084C1

DEFLECTOR, plenum box

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

4шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt truss hd

4шт.

22

165085C1

DEFLECTOR, plenum box

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

4шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt truss hd

4шт.

23

165086C1

DEFLECTOR, plenum box

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

4шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 slt truss hd

4шт.

24

165087C1

DEFLECTOR, plenum box

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

4шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt-truss hd

4шт.

25

165088C1

DEFLECTOR, plenum box

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

4шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt-truss-hd

4шт.

26

165089C1

DEFLECTOR, plenum box

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

4шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt-truss-hd

4шт.

27

165162C92

DEFLECTOR ASSY, center

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

4шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 slt-truss-hd

4шт.

28

170883C1

SHEET, fir duct filler

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

5шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

5шт.

29

177991C1

SCREEN ASSY, separator fan, serial no 12000 and below

1шт.

30

167994C1

ANGLE, plenum box lower right side

1шт.

31

177259C1

SUPPORT, fan housing

1шт.

32

584995R1

ANGLE, plenum box upper LH front stop

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x 16 ga C-Z

1шт.

33

170555C1

DOOR ASSY, plenum box front

1шт.

34

611044R1

AXLE PIN,6.35mm OD

PIN, locking

2шт.

121223

COTTER PIN,1/16" x 3/4"

PIN, SPLIT (COTTER), 1/16" x 3/4"

2шт.

21784R1

WASHER

17/64 x 1/2 x 16 ga

2шт.

35

606245R1

SPRING

locking pin

2шт.

36

170562C1

SHEET, plenum box left front

1шт.

18626R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 1/2", Gr 2

BOLT, 1/4 x 1/2 sq-nk crg

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

37

170563C1

ANGLE, plenum front door

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

2шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt-truss-hd

2шт.

38

177252C1

LEVER ASSY, air duct latch, 2 used grain corn and rice, 1 used edible bean

1шт.

38

196174C1

LEVER ASSY, air duct latch rear, 1 used edible bean, 1 used track

1шт.

648002

KNIFE

1/8" x 3/4"

2шт.

M92150

PIN

5/16 x 3/4 std-hd

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .34 x .69 x .06 znd

2шт.

39

177256C1

HOOK, air duct latch

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

4шт.

40

177260C1

HINGE, air duct center outer

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

3шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd

3шт.

41

177255C1

ROD, air duct center outer hinge

1шт.

41

196141C1

ROD, air duct pivot, track

1шт.

42

177261C1

STRIP

air duct center inner hinge

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

3шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd

3шт.

43

177257C1

ANGLE, air duct center seal

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

4шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd

4шт.

44

177262C1

BRACKET, fan housing rear trim

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

3шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd

3шт.

45

177258C1

SUPPORT, air duct pivot

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

3шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd

3шт.

46

160170C91

FAN ASSY, left

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 znp hex-hd mach

8шт.

120376

NUT,5/16"-18, G5

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

47

160171C91

FAN

ASSY, right

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 znp hex-hd mach

8шт.

120376

NUT,5/16"-18, G5

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

48

167426C1

RIVET, cleaning fan

46шт.

49

165047C1

HUB, fan

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1 C-Z hex-hd cap

16шт.

107327

SET SCREW,Sq Hd, 5/16"-18 x 1"

SCREW, 5/16 x 1 C-Z cup pt sq-hd set

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

16шт.

124824

NUT,Hex, 5/16" - 18

5/16 C-Z hex. jam

2шт.

50

23875R1

KEY,5/16" Sq x 6 1/2", Par

5/16 x 6.5 sq

1шт.

51

160831C1

SHAFT

fan

1шт.

52

161754C91

SUPPORT ASSY, fan shaft outer brg

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

4шт.

120376

NUT,5/16"-18, G5

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

53

473097R92

BEARING ASSY,1.2505" ID x 72 mm OD x 1"

BEARING, fan shaft

2шт.

54

455104R11

COLLAR

w/set screw fan shaft brg lkg

2шт.

55

168361C1

HOSE,0.14" ID x 19.00"

- Fan shaft in brg lub 0.14" ID x 19.00"

1шт.

56

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING, 1/4-28 45 deg lub

1шт.

57

581873R1

TUBE NUT,4.8 mm Length

fan shaft in brg lub hose

1шт.

58

21347R1

ADAPTER,45 Degree, 1/4"-1/8 NPTF

1/4-28 45 deg lub fitting

1шт.

59

489871R1

FLANGE

W/ADAPTER FITTING, fan shaft inner bearing

1шт.

60

473091R91

FLANGE

W/STR LUB FITTING, fan shaft outer brg

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 crg type 1

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

62

473092R1

FLANGED BEARING

fan shaft brg grooved

2шт.

62

165096C91

SUPPORT

WINDBOARD ASSY, fan lower

1шт.

63

177469C1

BAR, fan windboard adj, fan wind deflector

1шт.

M92150

PIN

5/16 x 3/4 std hd

2шт.

64

585614R1

PIN

windboard adj bar qa cot., fan wind deflector

2шт.

65

157177C1

ROD

fan wind deflector, fan wind deflector

1шт.

66

177996C1

SCREEN ASSY, separator fan bar

1шт.

67

167583C1

SUPPORT, separator fan bar

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 slt-truss-hd

1шт.

27313R1

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 5/8"

SCREW, 1/4 x 5/8 hex-hd tap 2

1шт.

68

170314C91

DOOR

ASSY, fan air duct, parts accessory, consists of 1012748R1 manual installing instructions and the following hardware

1шт.

18654R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4 x 1-3/4 hex-hd mach

4шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

12шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

12шт.
