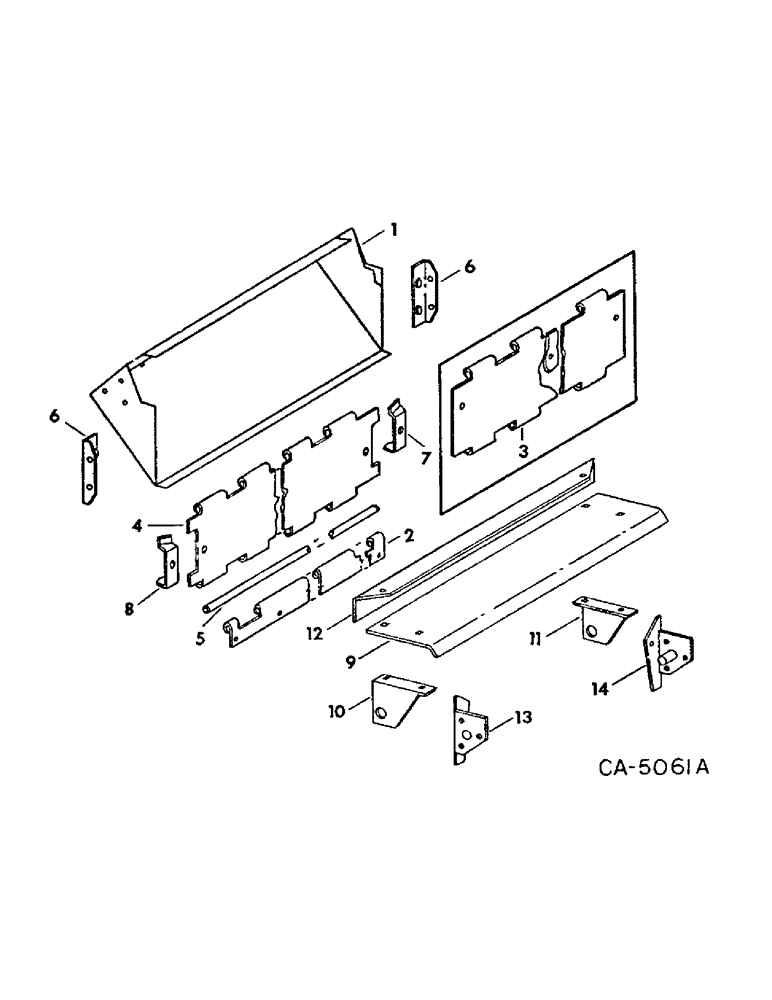

Запчасти Case IH 915 (21-22) - THRESHING CYLINDER AND CONCAVE, STONE RETARDER (14) - THRESHING

1

177704C1

RETARDER ASSY, stone, serial no 19000 and below

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

6шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 slt-truss-hd

6шт.

1

196253C1

TRAP

RETARDER ASSY, stone, serial no 19001 and above

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

6шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

6шт.

151446C1

SERRATED SCREW,Flg Lock, Sl Truss Hd, 5/16" - 18 x 1 1/4"

5/16 x 1-1/4 slt-truss-hd

1шт.

24497R1

WASHER

.34 x 1.25 x .12

1шт.

2

177706C1

HINGE

stone retarder lower

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

3

196352C1

HINGE, stone retarder double, serial no 19000 and below

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 hex-mach

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

4

196348C1

HINGE

stone retarder double, serial no 19001 and above

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

5

175931C1

ROD

stone retarder hinge

1шт.

6

177698C1

ANGLE, hinge support, serial no 19000 and below

2шт.

6

196255C1

ANGLE, hinge support, not rice, serial no 19001 and above

1шт.

7

178741C1

LATCH, stone retarder hinge LH, serial no 19001 and above

1шт.

151446C1

SERRATED SCREW,Flg Lock, Sl Truss Hd, 5/16" - 18 x 1 1/4"

BOLT, 5/16 x 1-1/4 flange lock

1шт.

120376

NUT,5/16"-18, G5

1шт.

9412083

NUT,5/16"-18, GB

NUT, 5/16 cad prevailing torque hex

1шт.

8

569362R2

LATCH, stone retarder hinge RH, serial no 19001 and above

1шт.

151446C1

SERRATED SCREW,Flg Lock, Sl Truss Hd, 5/16" - 18 x 1 1/4"

BOLT, 5/16 x 1-1/4 flange lock

1шт.

120376

NUT,5/16"-18, G5

1шт.

9412083

NUT,5/16"-18, GB

NUT, 5/16 cad revailing torque hex

1шт.

9

196337C1

SUPPORT, stone retarder cover, for use w/spike tooth cylinder

1шт.

16897C1

BOLT, 5/16 x 3/4 sq-nk crg

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

4шт.

10

196339C1

SUPPORT, stone retarder cover pivot LH, for use w/spike tooth cylinder

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

3шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

3шт.

11

196340C1

SUPPORT, stone retarder cover pivot RH, for use w/spike tooth cylinder

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

3шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

3шт.

12

196341C1

ANGLE, stone retarder cover lap, for use w/spike tooth cylinder

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

6шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

6шт.

13

196343C1

SUPPORT ASSY, stone retarder cover pivot LH

1шт.

475458R91

SCREW, set 3/8 x 1/2

1шт.

14

196344C1

SUPPORT ASSY, stone retarder cover pivot RH

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

475458R91

SCREW, set 3/8 x 1/2

1шт.
