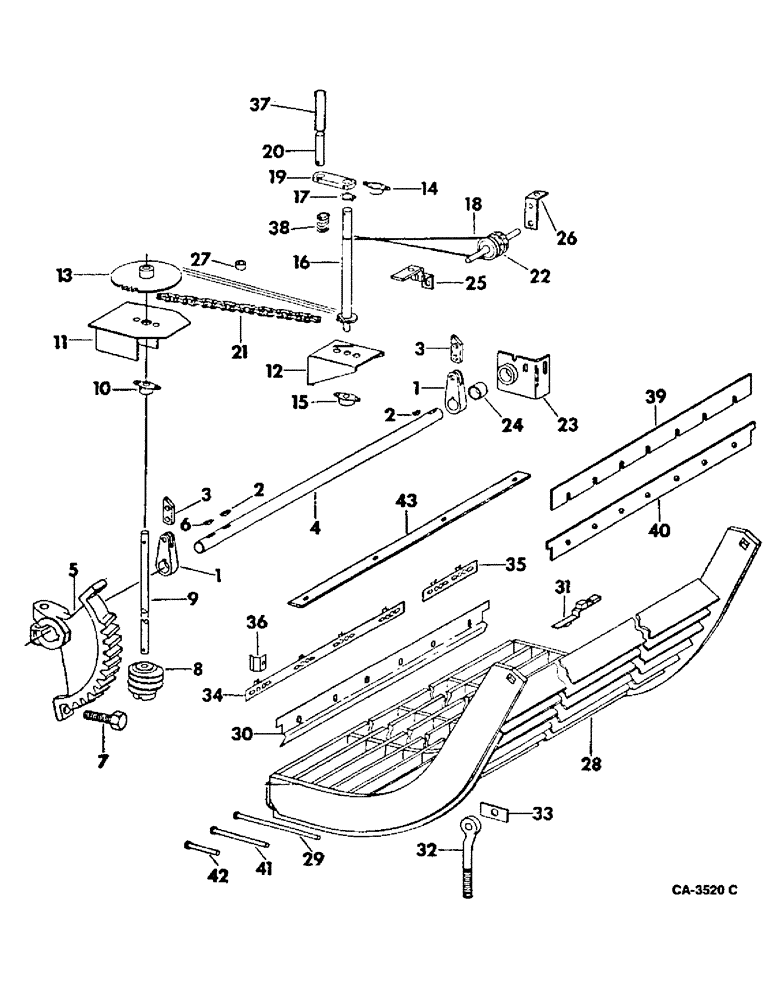

Запчасти Case IH 915 (21-21) - THRESHING CYLINDER AND CONCAVE, CONCAVE AND CONTROL (14) - THRESHING

1

157569C3

ARM

concave control front

2шт.

NLS

NO LONGER SERVICED

5/16 hex jam

2шт.

178758

SET SCREW,Sq Hd, 5/16" - 18 x 3/4", Cup Pt

SCREW, 5/16 x 3/4 sq-hd cup-pt set

2шт.

2

88907

WOODRUFF KEY,#B, 5/16" x 1", HT

5/16 x 1 Woodruff, hard

2шт.

3

157871C2

BAR

concave control front arm support

2шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

4шт.

138086

CLEVIS PIN,1/2" x 1.360"

PIN, 1/2 x 1-27/64 rod end C-Z

4шт.

4

157789C2

SHAFT

concave control arm pivot

1шт.

5

178255C1

GEAR, concave adj driven

1шт.

168392R1

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 8

1/2 x 2-1/2 znd hex-hd type 8

1шт.

21330R1

NUT,1/2"-13, G8

1/2 znd hex. type 8

1шт.

366864C1

LOCK WASHER,1/2"

1/2"

1шт.

6

88907

WOODRUFF KEY,#B, 5/16" x 1", HT

5/16 x 1 Woodruff, hard

1шт.

7

564638R1

BOLT, concave adjustment gear stop

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

2шт.

8

178256C1

GEAR

concave control worm drive

1шт.

9

178266C1

ROD, concave control driven

1шт.

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

2шт.

21471R1

WASHER

21/32 x 1 x 11 ga znd

3шт.

10

164864C91

FLANGE,15.89mm ID

BUSHING, concave control driven rod

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

2шт.

133827

SCREW, 5/16 x 3/4 znd slt-f-hd mach

2шт.

11

178263C1

SUPPORT ASSY, concave control driven sprocket

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

4шт.

63227R1

SCREW

5/16 x 3/4 C-Z slt-truss-hd

4шт.

12

178267C1

BRACKET, concave control driven sprocket

1шт.

13

178260C1

SPROCKET ASSY, concave control driven 42-T

1шт.

14

382508R91

BEARING ASSY,0.752" ID x 0.81"

BEARING, concave control drive upper

1шт.

15

178455C1

BEARING, concave control drive lower

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

2шт.

133827

SCREW, 5/16 x 3/4 znd slt-f-hd mach

2шт.

16

178257C1

PIN ASSY, concave control drive sprocket, 10T

1шт.

265923R1

LOCK PIN,3/16" x 1 1/4", Slotted

Pin, 3/16" x 1 1/4", Slotted

1шт.

21471R1

WASHER

21/32 x 1 x 11 ga znd

1шт.

178375R1

WASHER

.78 x 1.25 x .06

1шт.

17

23378R1

RING, retaining grip

1шт.

18

27317R1

O-RING,-038, Cl 3, 2.614" ID x .070" Thk

BELT, concave indicator

1шт.

19

178269C1

BAR, concave control handle

1шт.

20

178203C1

PIN, concave control handle

1шт.

265923R1

LOCK PIN,3/16" x 1 1/4", Slotted

Pin, 3/16" x 1 1/4", Slotted

1шт.

21

CHAIN, concave control use 57 links from A 10 ft roll marked 489466R91 and 1 connecting link 489467R1

1шт.

22

178207C1

INDICATOR, concave control

1шт.

23

178204C91

BRACKET ASSY, concave leveling, includes ref no 24

1шт.

20534R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

1/2 x 1-3/4 znd hex-hd type 8

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

21375

NOZZLE

WASHER, .53 x 1.25 x .18

2шт.

366468C1

WASHER, 1/2 rib lock

2шт.

24

454172R1

BUSHING

concave leveling bracket

1шт.

25

179012C1

BRACKET, concave indicator LH

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 znp flange lock

2шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 znd slt-truss-hd

2шт.

26

179013C1

BRACKET, concave indicator RH

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 znp flange lock

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 znp slt-truss-hd

1шт.

27

471428R1

ROLLER

concave control chain tightener

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znp flange lock

1шт.

151446C1

SERRATED SCREW,Flg Lock, Sl Truss Hd, 5/16" - 18 x 1 1/4"

5/16 x 1-1/4 znp slt-truss-hd

1шт.

21496R1

WASHER

.344 x .75 x 11 ga znd

1шт.

28

177385C91

CONCAVE

ASSY

1шт.

189738C92

CONCAVE

ASSY, low wire, 3/16 in dia wire

1шт.

166051C1

CARRIAGE BOLT,#3, 5/8" - 11 x 2 1/4", Gr 8

BOLT, 5/8 x 2-1/4 no. 3 plow type 8

2шт.

21434R1

NUT,5/8"-11, G8

5/8 hex type B

2шт.

366866R1

RING

WASHER, 5/8 rib lock

2шт.

29

177381C1

ROD

concave plain

42шт.

30

177389C1

RETAINER, concave front

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 hex-hd mach

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

31

196225C1

GAUGE ASSY, concave and cylinder check, for use with concave 177385C91

1шт.

32

177959C1

BOLT

concave rear adjustment

2шт.

280954

NUT,3/4"-10, G5

4шт.

366112R1

WASHER

25/32 x 1-1/4 x 11 ga

4шт.

131016

WASHER

.65 x 1.3 x .12

1шт.

33

565572R1

SEALING STRIP

concave rear adjustment bolt slot

2шт.

34

174547C92

STRIP

ASSY, concave filler long, includes ref no, for use with concave 177385C91

1шт.

35

174550C92

STRIP

ASSY, concave filler short, includes ref no 36, for use with concave 177385C91

6шт.

36

174549C1

CLIP

concave filler strip

48шт.

104066

RIVET,But Hd, 3/16" x 9/32"

3/16 x 3/8 B-hd

48шт.

37

174779C1

GRIP, concave control handle

1шт.

38

668869R1

SPRING

control drive pin

1шт.

39

196269C1

BAR, stone retarder

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 hex-hd cap

7шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

7шт.

20803R1

WASHER

.406 x 1.0 x .105

7шт.

40

196268C1

BAR

SEAL, stone retarder, used with stone retarder bar 196269C1

1шт.

41

189741C1

ROD

concave long, for use with concave 189738C92

59шт.

42

189742C1

ROD

concave half, for use with concave 189738C92

58шт.

43

654924R1

BAR

STRIP, concave filler

3шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 sq-nk crg

12шт.

120377

NUT,3/8" - 16, Gr 5

12шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

12шт.

3587H

WASHER, concave filler strip bolt, for use with concave 189738C92

12шт.
