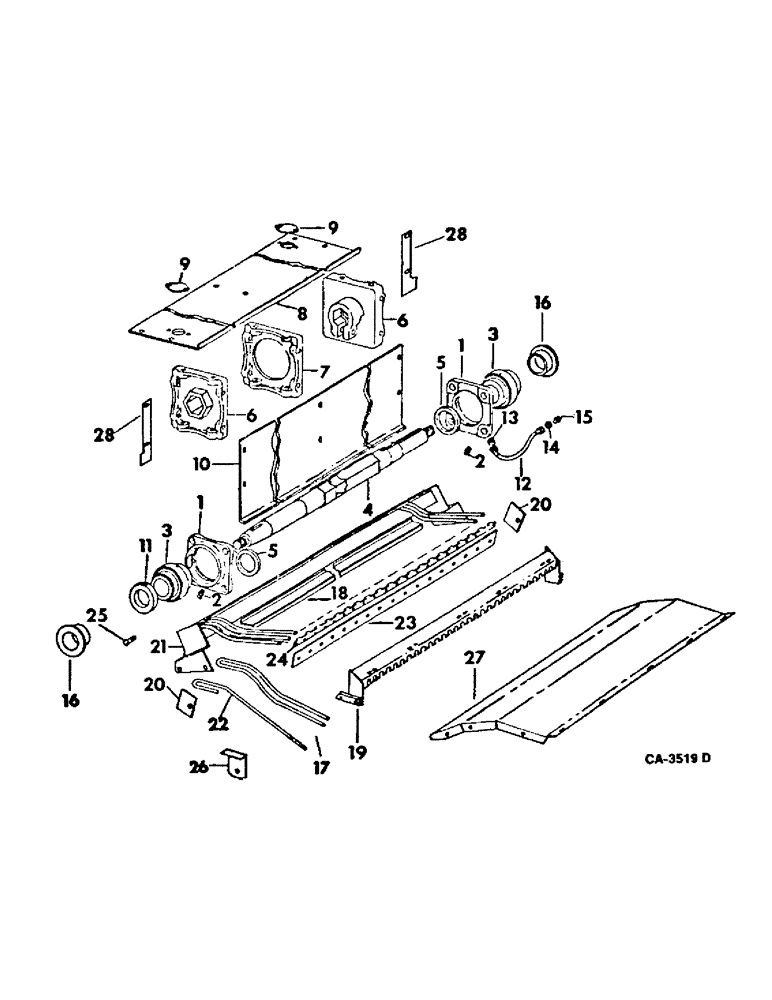

Запчасти Case IH 915 (21-16) - THRESHING CYLINDER AND CONCAVE, CYLINDER BEATER AND GRATE, FOUR BLADE BOX TYPE (14) - THRESHING

1

172317C11

HOUSING

W/BRG, cyl beater brg, includes ref no 3

2шт.

2

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING, 1/4-28, 45 deg lub

1шт.

3

172406C91

BEARING ASSY,55.56mm ID x 100mm OD x 25mm W

cyl beater ball

2шт.

4

160196C31

SHAFT

W/LOCK NUTS, cyl beater

1шт.

20290R1

LOCK NUT,1"-14, G5

NUT, 1-14 znp ne hex. lock

2шт.

936727R1

WASHER,26.16mm ID x 56.9mm OD x 6.35mm Thk

1-1/32 x 2-1/4 x 1/4

1шт.

U14294

WASHER

1-15/16 x 2-7/8 x 16 ga

5шт.

5

160236C1

BUSHING

SPACER, cyl beater shaft inner

1шт.

6

174769C1

HUB

cyl beater end

2шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

SCREW, 1/2 x 2-1/2 znd hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

7

174770C1

HUB, cyl beater center

1шт.

8

174773C1

BLADE

cyl beater, first

1шт.

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

SCREW, 1/2 x 1 znd hex-hd flange lock 6

6шт.

9

634728R1

COVER

hub bolt access hole

2шт.

276-1478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

1/4-20 x 1/2 C-Z hex-hd tap.

4шт.

10

174774C1

BLADE

cyl beater

3шт.

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

SCREW, 1/2 x 1 znd hex-hd flange lock E

18шт.

11

612023R11

COLLAR ASSY.

COLLAR W/SET SCREW, cyl beater shaft LH brg lkg

1шт.

12

937776R91

HOSE,0.14" ID x 14.00"

Lube, Cylinder Beater Shaft Right-Hand Bearing 0.14" ID x 14.00"

1шт.

13

21450R1

ADAPTER,1/4"-1/8 NPTF

lub fitting

1шт.

14

581873R1

TUBE NUT,4.8 mm Length

cyl beater shaft RH brg lub hose

1шт.

15

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28NS lub straight

1шт.

16

177299C1

RING

cyl beater brg

2шт.

17

178063C1

FINGER

cyl beater grate, rasp bar cylinder

14шт.

18

178069C1

STRAP, grate fingers clamp, rasp bar cylinder

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

19

178077C2

SUPPORT ASSY, cyl beater, grate fingers, rasp bar cylinder

1шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 znd hex-hd mach

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

20

568276R1

SEAL, grate adjusting slot

2шт.

21

157930C96

GRATE

ASSY, cyl beater finger, includes ref nos 22, 23, 24, spike tooth cylinder

1шт.

21

GRATE ASSY, cyl beater finger, for rasp bare, order ref. no. 17, 18 & 19

1шт.

22

174767C2

FINGER

cyl beater grate, for spike tooth cylinder

22шт.

23

170534C1

STRAP, grate fingers clamp, for spike tooth cylinder

1шт.

18685R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/2", Gr 2

BOLT, 3/8 x 1-1/2 crg type 1

1шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 cad p/t lock type 5

1шт.

24

582715R1

CLAMP, grate finger, for spike tooth cylinder

1шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 sq-nk crg

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ca

2шт.

25

152257C2

BOLT, beater finger grate mounting

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

26

574525R1

DOOR, cylinder beater finger grate inspection

1шт.

27

180225C1

DEFLECTOR, cylinder beater

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 sq-nk crg

5шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

6шт.

28

180371C1

BAR

cylinder sweep, track

2шт.

204060R1

SCREW, 1/2 x 1-1/4 slt-truss-hd

16шт.
