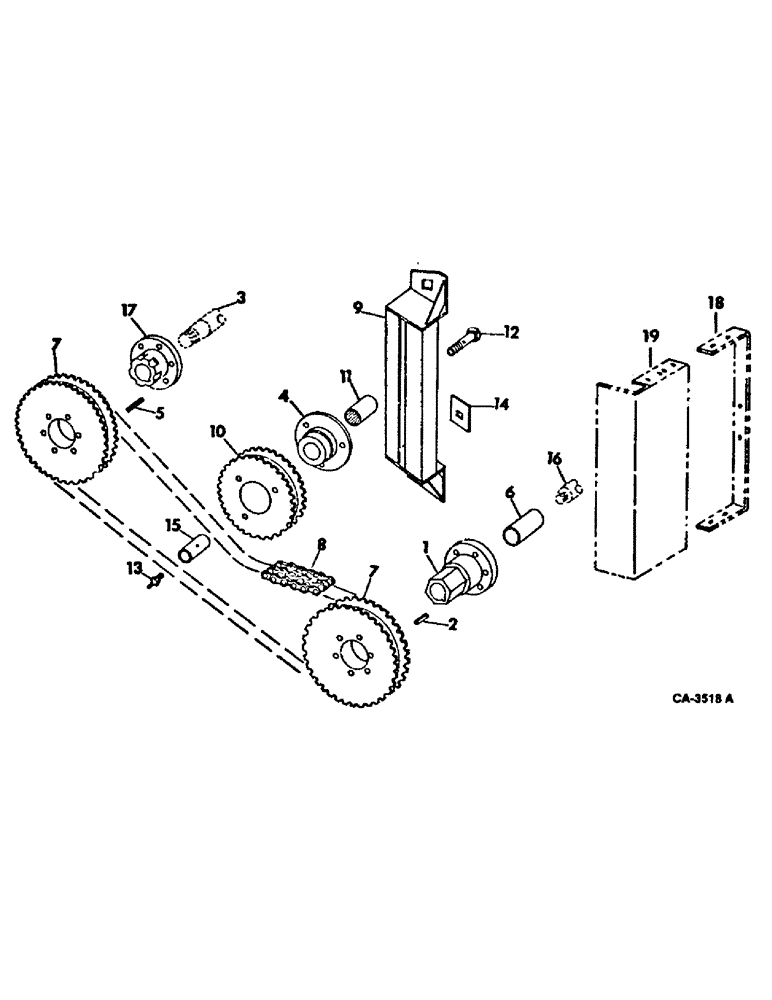

Запчасти Case IH 915 (21-14) - THRESHING CYLINDER AND CONCAVE, CYLINDER CHAIN DRIVE, MECHANICAL (14) - THRESHING

1

160241C1

HUB

cyl drive chain sprocket driven

1шт.

9418646

NUT,7/16"-14, G8

7/16 hex

6шт.

23105R1

SCREW, 7/16 x 2-3/4 hex-hd cap Hex, 7/16"-14 x 2 3/4", G8

6шт.

366863C1

LOCK WASHER

WASHER, 7/16 rib lock

6шт.

2

158416C1

KEY

3/8 x 4.2 sq parallel hard

1шт.

3

SHAFT ASSY, cylinder beater, refer to this group under cylinder beater for unit listing

1шт.

4

158413C11

HUB

ASSY, cyl drive chain tightener sprocket, includes ref no 11

1шт.

21901R1

BOLT,Hex, 7/16" - 14 x 2", Gr 8

7/16 x 2 hex-hd cap type 6

6шт.

366863C1

LOCK WASHER

WASHER, 7/16 rib lock

6шт.

5

172303C1

KEY

1/2 x 6 sq parallel hard

1шт.

6

172318C1

SPACER

cyl driven sprocket hub

1шт.

7

160121C1

SPROCKET ASSY.

SPROCKET, cyl drive or driven, 35-T

1шт.

7

158418C1

DRIVE SPROCKET

SPROCKET, cyl drive or driven, 30-T

1шт.

7

158419C1

SPROCKET ASSY.

SPROCKET, cyl drive or driven, 43-T

1шт.

7

158420C1

SPROCKET, cyl drive or driven, 54-T

1шт.

7

158421C1

SPROCKET, cyl drive or driven, 48T

1шт.

7

158693C1

SPROCKET, cyl drive or driven, 65-T

1шт.

8

CHAIN ASSY, drive roller, use 81 links from 10-ft roll marked 1355 D, three connecting links 569206R91, and four roller links 1316 D

1шт.

8

CHAIN ASSY, drive extension, use 4 roller links 1316D, 7 connecting links 569206R1, and 3 two ritch combination offset links 570988R91

1шт.

9

158410C92

SUPPORT

BRACKET ASSY, cylinder drive chain tightener hub

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

2шт.

271501

SOCKET

NUT, 7/16 hex

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

10

158417C1

GEAR

SPROCKET, cyl drive chain tightener, 22-T

1шт.

11

577006R91

NEEDLE BEARING,Needle, 22.2mm ID x 33.36mm OD x 38.1mm W

cyl drive chain tightener hub needle

1шт.

12

575280R1

BOLT (SPREADER)

BOLT, cyl drive chain tightener hub

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 hex

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga

2шт.

579331R1

WASHER

21/32 x 2 x 3/16 hard

1шт.

13

219-31

LUBE NIPPLE,30 Degree Elbow, 1/8" - 27 NPTF

FITTING, 1/8 str lub

1шт.

14

160690C1

BAR

cyl drive chain tightener sprocket bolt

1шт.

15

578607R1

SLEEVE CYLINDER

SLEEVE, cyl drive chain tightener hub

1шт.

16

SHAFT ASSY, cylinder, refer to this group under rasp bar cylinder and cylinder speed indicator for unit listing

1шт.

17

172300C1

HUB, cyl drive chain sprocket

1шт.

454948

BOLT,Hex, 7/16" - 14 x 2 1/2", Gr 8

7/16 x 2-1/2 hex-hd

6шт.

9418646

NUT,7/16"-14, G8

7/16 hex

6шт.

366863C1

LOCK WASHER

WASHER, 7/16 med lock

6шт.

18

SUPPORT, cylinder drive shield, refer to this group under variable cylinder belt drive for unit listing

1шт.

19

CHANNEL, cylinder drive, refer to this group under variable cylinder belt drive for unit listing

1шт.
