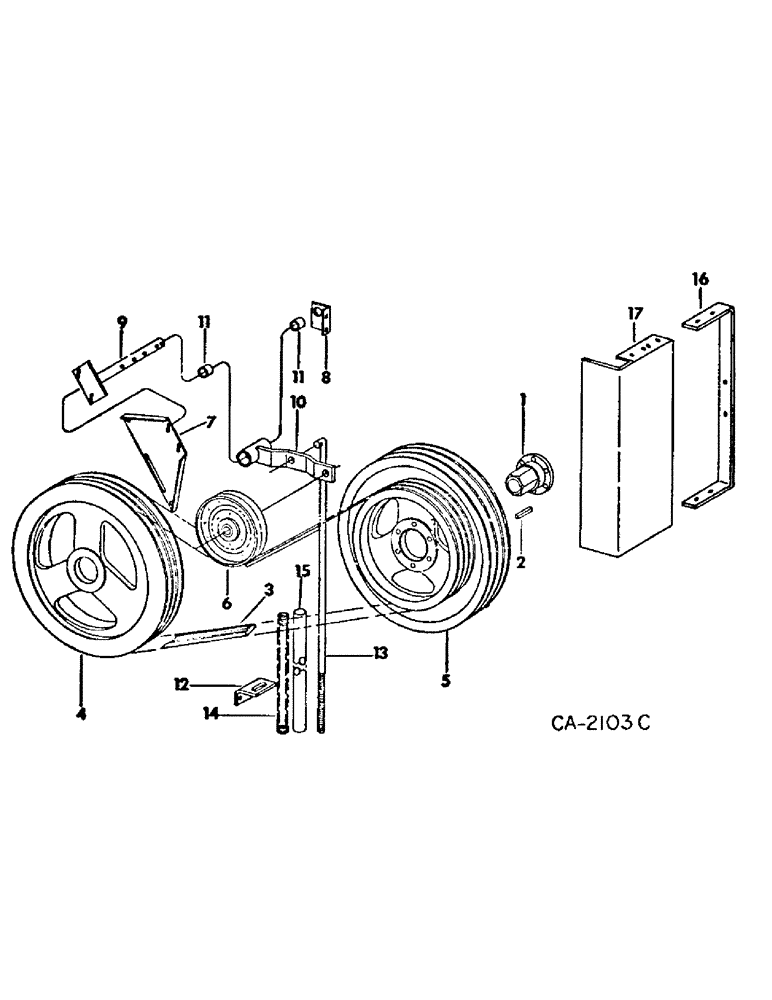

Запчасти Case IH 915 (21-11) - THRESHING CYLINDER AND CONCAVE, VARIABLE CYLINDER BELT DRIVE (14) - THRESHING

1

160241C1

HUB

cylinder driven sprocket

1шт.

2

158416C1

KEY

3/8 x 4.0 sq parallel hard

1шт.

3

174509C1

BELT,0.630" W x 134.35" L, 3 Ribs

V-BELT , Cylinder drive 0.630" W x 134.35" L, 3 Ribs

1шт.

4

174507C1

PULLEY, cyl drive, 15.5 in. OD

1шт.

226092R1

BOLT,Hex, 7/16" - 14 x 1 1/2", Gr 8

7/16 x 1-1/2 hex-hd type 8

6шт.

366863R1

WASHER, 7/16 rib lock

6шт.

5

174508C1

PULLEY, cyl driven, 20 in OD

1шт.

21901R1

BOLT,Hex, 7/16" - 14 x 2", Gr 8

7/16 x 2 hex-hd type 8

6шт.

9418646

NUT,7/16"-14, G8

7/16 hex type 8

6шт.

366863C1

LOCK WASHER

WASHER, 7/16 rib lock

6шт.

6

174510C91

PULLEY ASSY.

PULLEY, cyl drive belt tightener, 8 in, OD

1шт.

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

1шт.

7

174518C1

BRACKET, cyl drive outer tightener pivt

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 sq-nk crg

4шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

4шт.

8

174517C1

BRACKET, cyl drive inner tightener pivot

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 sq-nk crg

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

2шт.

9

174514C1

SHAFT ASSY, cyl drive tightener pivot

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 hex-hd mach

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

2шт.

517843R1

COTTER PIN

PIN, 1/4 x 1-1/2 cotter

2шт.

20803R1

WASHER

13/32 x 1 x 11 ga

2шт.

20704R1

WASHER

1-1/32 x 1-1/2 x 11 ga

4шт.

591715R1

WASHER

1-1/32 x 1-1/2 x 16 ga

2шт.

10

174511C91

ARM

ASSY, cyl drive belt tightener, includes ref no 11

1шт.

11

583346R1

BUSHING,25.45mm ID x 28.55mm OD x 25.4mm L

cyl drive belt tightener arm

2шт.

12

174521C1

ANCHOR, cyl drive belt draw bolt

1шт.

12872C1

BOLT, 5/16 x 1 sq-nk crg

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

13

174520C2

ROD

cyl drive belt draw bolt

1шт.

231-1448

NUT,1/2"-13, GB

1/2 lock

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

607895R1

WASHER

17/32 x 1 x 11 ga

1шт.

460908R1

WASHER

17/32 x1-1/2 x 11 ga

2шт.

14

174519C1

SPRING

cyl drive belt draw bolt

1шт.

15

175304C1

TUBE,0.995" ID, 1.125" OD, 15.2" Length

drive belt tightener spring

1шт.

16

196425C1

SUPPORT

cylinder drive shield

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

17

196424C1

CHANNEL

cylinder drive

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.
