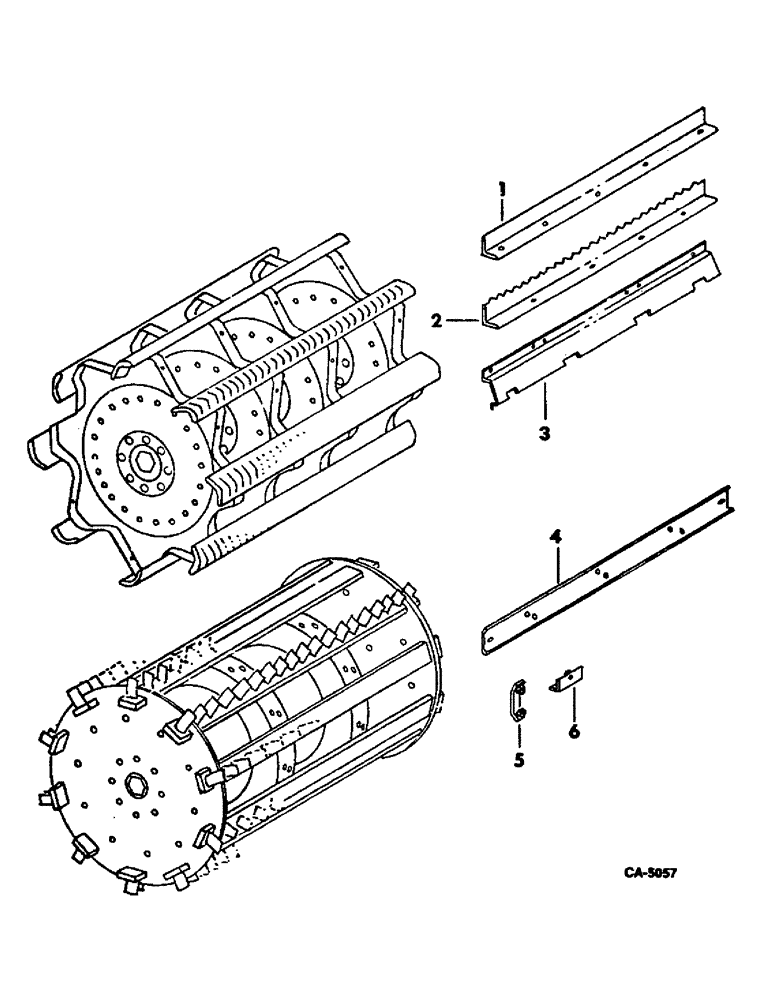

Запчасти Case IH 915 (21-06) - THRESHING CYLINDER AND CONCAVE, SPECIAL CYLINDER BARS (14) - THRESHING

175321C92

BAR, cylinder filler, for spike tooth cylinder, includes ref nos 4, 5 and 6

1шт.

1

177231C1

BAR, cylinder smooth, parts accessory

1шт.

120369

NUT,3/8"-24, G5

5шт.

181637

SCREW, 3/8-24 x 1 hex-hd cap

5шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

5шт.

2

177229C1

BAR

cylinder notched, parts accessory, for rasp bar cylinder

1шт.

120369

NUT,3/8"-24, G5

5шт.

NLS

NO LONGER SERVICED

SCREW, 3/8-24 x 1 hex-hd cap

40шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

40шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x 1/6

56шт.

4

175316C2

CHANNEL, cylinder filler LH

5шт.

4

175317C2

CHANNEL, cylinder filler RH, for spike tooth cylinder

5шт.

45500

BOLT, 1/2 rib lock

100шт.

178373R1

WASHER

13/32 x 1 x 16 ga

80шт.

5

162006C11

RETAINER ASSY, filler bar, for spike tooth cylinder

40шт.

6

162007C11

ANGLE ASSY, cylinder filler channel support, for spike tooth cylinder

20шт.

151629R1

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

3/8 x 1 hex-hd type 8

40шт.

366862C1

LOCK WASHER,3/8"

3/8"

40шт.
