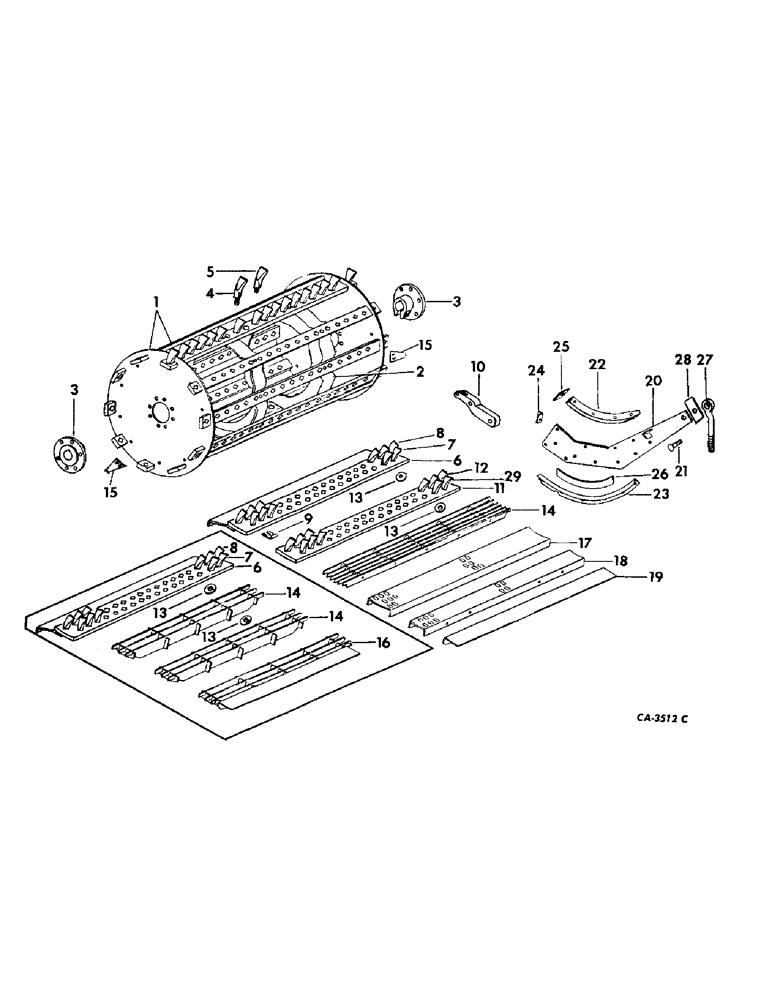

Запчасти Case IH 915 (21-04) - THRESHING CYLINDER AND CONCAVE, SPIKE TOOTH CYLINDER AND CONCAVE (14) - THRESHING

1

172308C92

CYLINDER ASSY, spike tooth, includes ref no 2

1шт.

2

567891R1

HEAD, cylinder center

1шт.

104118

RIVET, 3/8 x 1-5/8 pln but/hd sol

1шт.

3

172312C1

HUB, cylinder

2шт.

195312C1

FLANGE NUT,Flg, USR, 1/2"-13, G8

1/2 flange lock

2шт.

236486R1

BOLT,Hex, 1/2" - 13 x 3", Gr 8

2шт.

104116

RIVET, 3/8 x 1-3/4 rd-hd

1шт.

4

155992C2

TOOTH

cylinder middle

30шт.

102638

3/16 hex

30шт.

120898

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

30шт.

5

155993C2

TOOTH

cylinder

200шт.

NLS

NO LONGER SERVICED

9/16 hex

200шт.

120898

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

200шт.

6

180164C91

CONCAVE, front, includes ref nos 7, 8 & 13

1шт.

7

155992C2

TOOTH

front concave long

22шт.

124583

BRAKE SHOE

NUT, 9/16 hex

22шт.

120898

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

22шт.

8

155993C2

TOOTH

front concave short

21шт.

124583

BRAKE SHOE

NUT, 9/16 hex

21шт.

120898

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

21шт.

9

155984C1

SPACER, front concave

3шт.

10

158004C2

LEVER

concave front support

2шт.

166051C1

CARRIAGE BOLT,#3, 5/8" - 11 x 2 1/4", Gr 8

BOLT, 5/8 x 2-1/4 no. 3 plow type 8

1шт.

21434R1

NUT,5/8"-11, G8

5/8 hex type 8

1шт.

131165

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

21796R1

WASHER

21/32 x 1 x 16 ga

1шт.

11

156000C91

CONCAVE, rear, for use w/slotted grate concave, grain maize and edible bean

1шт.

12

155993C2

TOOTH

rear concave, for use w/slotted grate concave, grain, maize and edible bean

1шт.

124583

BRAKE SHOE

NUT, 9/16 hex

35шт.

120898

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

35шт.

13

936476R1

SQ HOLE WASHER

concave tooth, 23 used for bar grate, 66 used for slotted grate

1шт.

124583

BRAKE SHOE

NUT, 9/16 hex.

43шт.

280248

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

43шт.

14

582770R91

CONCAVE ASSY, front bar, bar grate

2шт.

15

196207C1

BLADE, spike tooth cylinder

4шт.

20153R1

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 8

3/8 x 1-1/2 hex-hd type 8

8шт.

21333R1

NUT,3/8"-16, G8

3/8 hex. type 8

8шт.

366862R1

WASHER, 3/8 rib lock

8шт.

16

582772R91

CONCAVE ASSY, rear bar, bar grate

1шт.

17

588845R91

CONCAVE ASSY, slotted grate

2шт.

18

588847R91

GRATE ASSY, concave rear, slotted grate

1шт.

19

582762R1

EXTENSION, concave rear grate, slotted grate

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 hex-hd mach

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

20

567901R11

SUPPORT ASSY, concave LH

1шт.

20

567902R11

SUPPORT ASSY, concave RH

1шт.

23056R1

BOLT, 3/8 x 7/8 no. 3 plow

10шт.

18720R1

SCREW,Short NK, 5/8"-11 x 2", G2

BOLT, 5/8 x 2 sq nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

10шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 hex

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

10шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

.656 x 1.312 x .074

1шт.

21

166051C1

CARRIAGE BOLT,#3, 5/8" - 11 x 2 1/4", Gr 8

BOLT, concave support

4шт.

21434R1

NUT,5/8"-11, G8

5/8 hex type 8

4шт.

366866C1

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

21976R1

WASHER, 21/32 x 1 x 16 ga

4шт.

22

568135R1

SUPPORT

RETAINER, concave upper LH

1шт.

568136R1

SUPPORT

RETAINER, concave upper RH

1шт.

120376

NUT,5/16"-18, G5

2шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1 type 5

2шт.

120124

SCREW,Hex, M12 x 1.75 x 90mm, Cl 8.8, Full Thd

WASHER, 5/16 med lock

2шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga

2шт.

23

568137R1

RETAINER, concave lower LH

1шт.

23

568138R1

RETAINER, concave lower RH

1шт.

24

568139R1

ANGLE

DEFLECTOR, concave LH

4шт.

24

568140R1

ANGLE

DEFLECTOR, concave RH

4шт.

25

567908R1

BAR

CLIP, concave locking

2шт.

26

587764R1

SHIM

concave adjustment

8шт.

27

177959C1

BOLT

concave rear adjustment

2шт.

280954

NUT,3/4"-10, G5

4шт.

366112R1

WASHER

25/32 x 1-1/4 x 11 ga

4шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

.65 x 1.3 x 12

1шт.

28

565572R1

SEALING STRIP

concave rear adjustment bolt slot

2шт.

29

155992C1

TOOTH

rear concave long

4шт.
