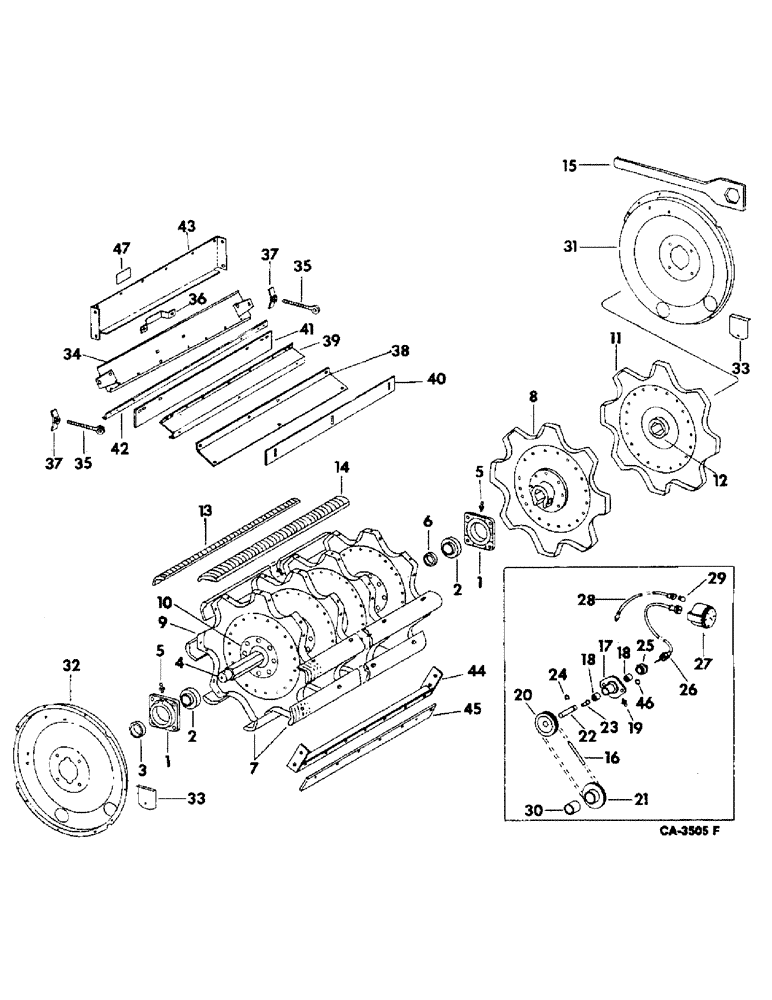

Запчасти Case IH 915 (21-01) - THRESHING CYLINDER AND CONCAVE, RASP BAR CYLINDER (14) - THRESHING

172316C11

HOUSING

ASSY, cylinder shaft bearing de, includes ref nos 2 and 3

2шт.

2

172408C91

BALL BEARING,49.21mm ID x 90mm OD x 23mm W

BEARING, cylinder shaft ball

2шт.

3

618032R11

COLLAR

cylinder shaft LH bearing lkg

1шт.

4

172314C11

SHAFT ASSY, cylinder

1шт.

20290R1

LOCK NUT,1"-14, G5

NUT, 1/4-14 NF hex lock

1шт.

21213R1

WASHER

1-1/32 x 2 x 11 ga

1шт.

936727R1

WASHER,26.16mm ID x 56.9mm OD x 6.35mm Thk

1-1/32 x 2-1/4 x 1/4

1шт.

21787R1

WASHER

2-1/16 x 2-15/16 x 16 ga

6шт.

5

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING, 1/4-28 45 deg elbow lub

2шт.

6

629712R1

SPACER

cylinder shaft

1шт.

7

177220C91

CYLINDER ASSY, rasp bar, for corn, soybean and edible bean

1шт.

7

180500C91

CYLINDER ASSY, rasp bar, for grain

1шт.

8

177223C2

HEAD ASSY, cylinder inner

3шт.

9

177224C92

HEAD

W/HUB ASSY, cylinder outer LH, includes ref no 10

1шт.

10

172312C1

HUB, outer head

1шт.

236486R1

BOLT,Hex, 1/2" - 13 x 3", Gr 8

2шт.

195312C1

FLANGE NUT,Flg, USR, 1/2"-13, G8

1/2 flange lock type 8

2шт.

NLS

NO LONGER SERVICED

3/8 x 1 pln but/hd sol

1шт.

11

177225C91

HEAD W/HUB ASSY, cylinder outer RH, includes ref no 12

1шт.

235486R1

SCREW, 1/2 x 3 hex-hd cap type 8

2шт.

12

172312C1

HUB, outer head

1шт.

195312C1

FLANGE NUT,Flg, USR, 1/2"-13, G8

1/2 flange lock type 8

2шт.

235486R1

SCREW, 1/2 x 3 hex-hd cap

1шт.

104113

RIVET,But Hd, 3/8" x 1"

3/8 x 1 pln but/hd sol

1шт.

13

180501C1

BAR

cylinder rasp bar LH, hardened

1шт.

13

177221C1

BAR

cylinder rasp LH, regular

1шт.

231-2446

NUT,3/8"-24, GB

NUT, 3/8-24 hex lock

20шт.

181635

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

SCREW, 3/8-24 x 3/4 hex-hd cap

20шт.

181637

SCREW, 3/8-24 x 1 hex-hd cap

20шт.

123920

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

20шт.

14

180502C1

BAR

cylinder rasp bar RH, hardened

1шт.

14

177222C1

BAR

cylinder rasp RH, regular

1шт.

231-2446

NUT,3/8"-24, GB

NUT, 3/8-24 hex lock

20шт.

181635

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

SCREW, 3/8-24 x 3/4 hex-hd cap

20шт.

NLS

NO LONGER SERVICED

SCREW, 3/8-24 x 1 hex-hd cap

20шт.

123920

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

20шт.

15

170432C1

IGNITION KEY

BAR ASSY, rocking

1шт.

16

167099C1

V-BELT,0.24" W x 53.96" L

Cylinder Speed Indicator Drive 0.24" W x 53.96" L

1шт.

17

171147C12

HOUSING

W/BRGS, speed indicator jackshaft support, includes ref no 18

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x 16 ga

2шт.

18

336180R91

NEEDLE BEARING

ASSY, speed indicator jackshaft inner

1шт.

19

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

20

164887C1

PULLEY

speed indicator shaft driven, 4 in. OD

1шт.

137258

COTTER PIN

3/16" x 1 3/4"

1шт.

21

164879C2

PULLEY, speed indicator shaft drive, 4 in. OD

1шт.

21750R1

WASHER

1-29/32 x 2-1/2 x 11 ga

4шт.

22

173582C91

SHAFT

JACKSHAFT ASSY, speed indicator drive, includes ref no 23

1шт.

21796R1

WASHER

21/32 x 1 x 16 ga

5шт.

21471R1

WASHER

21/32 x 1 x 11 ga

1шт.

23

164892C1

BUSHING

flexible shaft drive

1шт.

24

324050R1

SNAP RING

RING, speed indicator jackshaft snap

1шт.

25

164884C1

ADAPTER

UNION, speed indicator flexible shaft

1шт.

26

SHAFT ASSY, speed indicator flexible, refer to group 11 under instruments and gages for unit listing

1шт.

27

INDICATOR ASSY, cylinder drive speed, refer to group 11 under instruments and gauges for unit listing

1шт.

28

372546R91

CABLE

SOCKET ASSY, instrument light

1шт.

29

127934

BELT, TRANSMISSION

light

1шт.

30

164229C1

SPACER, cylinder shaft RH

1шт.

31

172451C1

COVER ASSY, cylinder RH end

1шт.

20816R1

BOLT, 3/8 x 1/2 sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

32

172450C1

COVER ASSY, cylinder LH end

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 hex

4шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

5/8 hex jam

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

138557

WASHER,Int Tooth, 5/8"

5/8 int-tooth lock

4шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga

2шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, 3/8 x 1 pln crg type 1

1шт.

15039R1

BOLT

3/8 x 1-1/2 pln crg type 1

1шт.

33

633518R1

DOOR

cylinder and concave inspection

1шт.

34

180561C91

DOOR ASSY, cylinder front, includes ref. no 47

1шт.

35

559017R1

BOLT,Eye, 1/2" - 13 x 4 1/8", Full Thd

EYEBOLT, cylinder front door

2шт.

36

160638C1

HANDLE

cyl front door

1шт.

37

177531C1

FLANGE NUT

NUT ASSY, cylinder front door locking

2шт.

38

177520C1

DEFLECTOR, cylinder

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znd slt-truss-hd

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

4шт.

39

177521C1

SUPPORT, cylinder deflector lower

1шт.

40

174820C1

PLATE, cylinder deflector, not rice

1шт.

40

196086C1

DEFLECTOR, cylinder, rice

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

3шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 1/2 znd slt-truss-hd

1шт.

41

166912C1

STRIP

SEAL, cylinder deflector backing, serial no. 12620 and below

1шт.

41

197957C1

SUPPORT

SEAL, cylinder deflector backing, serial no. 12621 and above

1шт.

42

197963C1

STRIP, cylinder deflector backing seal, serial no. 12621 and above

1шт.

42

177530C1

STRIP, cylinder deflector backing seal, serial no. 12620 and below

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

11шт.

453049

SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"

1/4 x 3/4 znd slt-pan-hd mach

11шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

11шт.

43

177528C1

SUPPORT, cylinder upper

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 znd hex-hd mach

4шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 znd hex-hd mach

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

4шт.

44

177536C1

STRIPPER ASSY, cylinder

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

45

177539C1

FLAP

cylinder stripper

1шт.

9412083

NUT,5/16"-18, GB

NUT, 5/16 znd prev. torque

7шт.

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

5/16 x 1-1/2 type 5

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

46

386181R91

SEAL, oil

1шт.

47

179749C2

PRODUCT GRAPHIC

danger

1шт.
